Spec
出力(Peak): <120W選択時> 186W@4Ω, 185W@8Ω, 192W@16Ω, <10W選択時> 16.3W@4Ω, 16.4W@8Ω, 16.8W@16Ω
出力(RMS): <120W選択時> 120W@4Ω, <10W選択時> 10W@4Ω
使用真空管: ECC83 (12AX7) × 5 , 6L6GC × 4

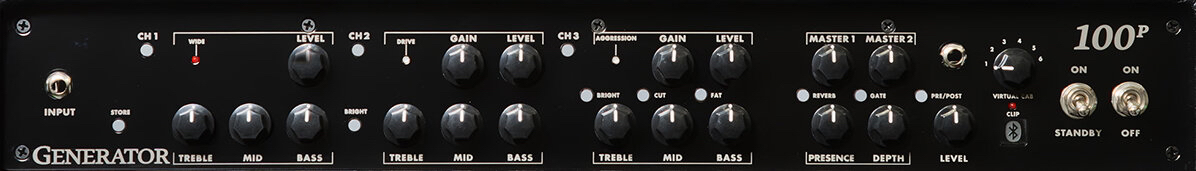

コントロール: [Front Panel] Channel Select Switch(CH1/Wide, CH2/Drive, CH3/Aggression), Store Switch, Reverb Switch, Gate Switch, Pre/Post Switch, Master1 Control, Master2 Control, Presence Control, Depth Control, Level Control, Virtual Cab Select Switch, ON/Standby Switch, ON/OFF Switch, Level, Treble, Middle, Bass Gain, Level, Treble, Middle, Bass Gain, Level, Treble, Middle, Bass, Bright Switch, Cut Switch, Fat Switch [Rear Panel] Ground/Lift Switch, Reverb Level Control, Gate Threshold Control, USB, 120W/10W Switch, Internal Load/Speaker Switch

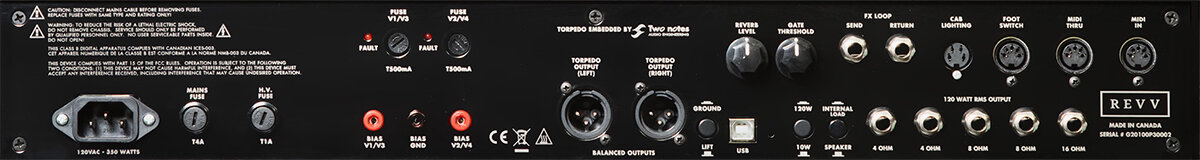

入出力端子: [Front Panel] Input, Headphone Out [Rear Panel] Power Input, Balanced Outputs(Left, Right), FX Loop (Send/Return), Cabinet Lighting, Foot Switch, MIDI Through, MIDI In, Speaker Outputs(4Ω×2, 8Ω×2, 16Ω×1)
対応電源: 100VAC, 50/60Hz
サイズ: H270 × W680 × D255mm (突起物含む、ハンドル含まず)
重量: 約21kg
出力(RMS): <120W選択時> 120W@4Ω, <10W選択時> 10W@4Ω
使用真空管: ECC83 (12AX7) × 5 , 6L6GC × 4
コントロール: [Front Panel] Channel Select Switch(CH1/Wide, CH2/Drive, CH3/Aggression), Store Switch, Reverb Switch, Gate Switch, Pre/Post Switch, Master1 Control, Master2 Control, Presence Control, Depth Control, Level Control, Virtual Cab Select Switch, ON/Standby Switch, ON/OFF Switch, Level, Treble, Middle, Bass Gain, Level, Treble, Middle, Bass Gain, Level, Treble, Middle, Bass, Bright Switch, Cut Switch, Fat Switch [Rear Panel] Ground/Lift Switch, Reverb Level Control, Gate Threshold Control, USB, 120W/10W Switch, Internal Load/Speaker Switch
入出力端子: [Front Panel] Input, Headphone Out [Rear Panel] Power Input, Balanced Outputs(Left, Right), FX Loop (Send/Return), Cabinet Lighting, Foot Switch, MIDI Through, MIDI In, Speaker Outputs(4Ω×2, 8Ω×2, 16Ω×1)
対応電源: 100VAC, 50/60Hz
サイズ: H270 × W680 × D255mm (突起物含む、ハンドル含まず)
重量: 約21kg
