Spec
- CAPSULE TYPE
- Single diaphragm
- POLAR PATTERN
- Choice of cardioid or omni; via mechanical shutter
- FREQUENCY RESPONSE
- 30 to 18,000 Hz. ±3 dB ("M" setting)
- SENSITIVITY
- -46 dBv referred to 1 volt per pa.
- MAXIMUM SPL
- 120 dB with pad off, 135 dB with pad on.
- DISTORTION
- Not to exceed .5 percent at 134 dB
- SELF NOISE
- Better than 18 dB

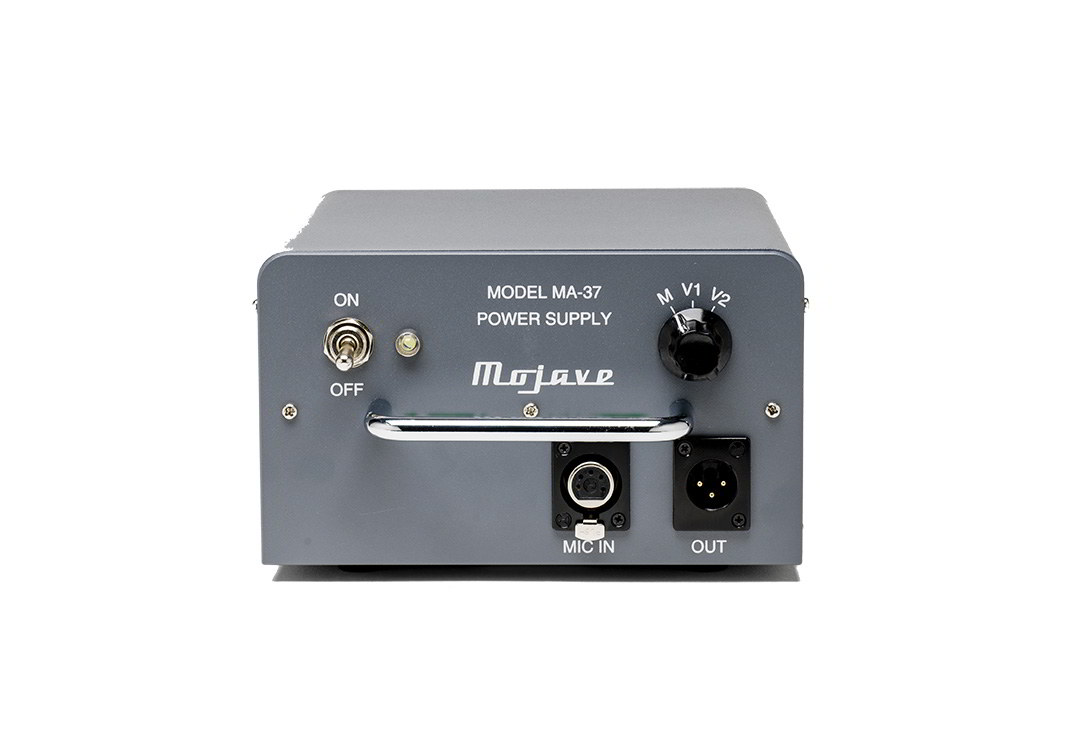

- BASS CUT
- M flat
- V1 -6dB at 50 Hz
- V2 -6dB at 100 Hz
- IMPEDANCE
- 170 ohms, floating.
- Recommended load
- 1500 ohms or higher

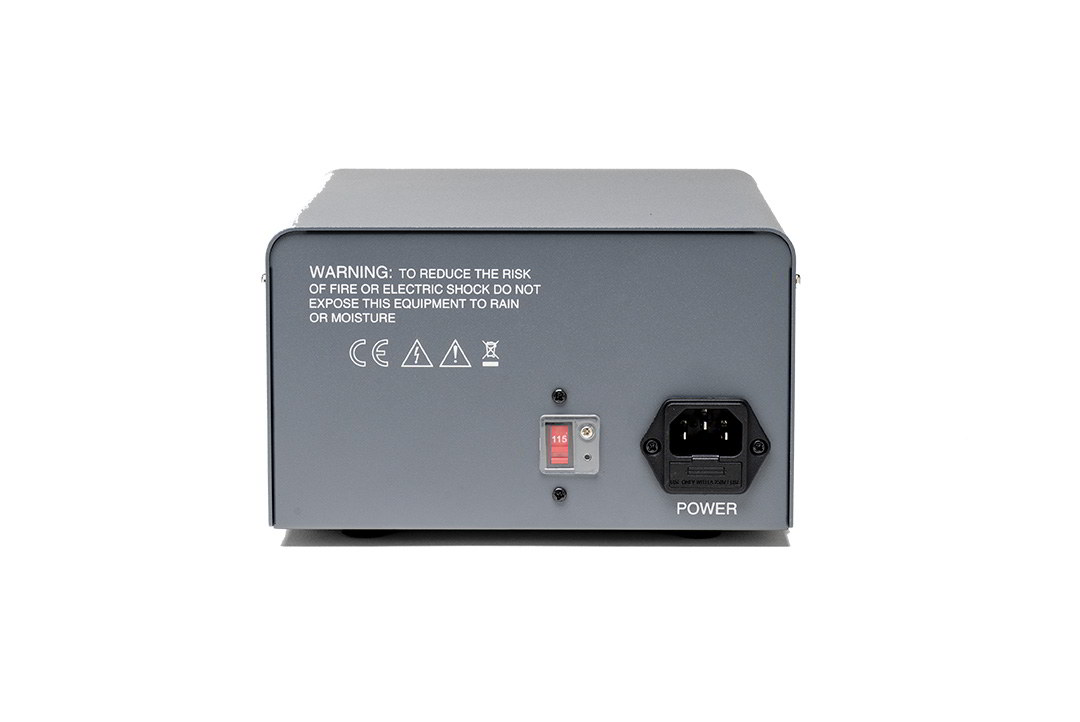

- POWER REQUIREMENT
- 115 or 230 VAC, 50 or 60 hertz; 5 watts.
