Spec
Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel balance at 1kHz-1,5 dB
Channel separation at 1kHz-23 dB
Channel separation at 15 kHz-15 dB
Frequency response-20-20.000 Hz +/- 2dB
Tracking ability at 315 Hz at recommended tracking force-80 μm
Compliance, dynamic lateral-7 μm/m N
Stylus type - Special Elliptical
Stylus tip radius - r/R 13/25 μm
Tracking force range-2.0-5.0 g (20-50 mN)
Tracking force recommended-3.0 g (30 mN)
Tracking angle-20°
Internal impedance, DC resistance - 750 Ohm
Internal inductance-450 mH
Recommended load resistance-47 kOhm
Recommended load capacitance-200-600 pF
Concorde cartridge weight- 18.5 g

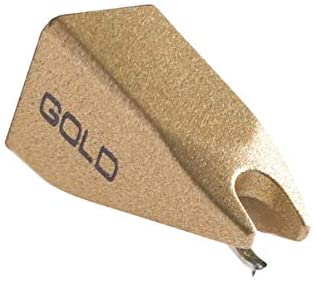

Compatible with cartridges -Gold
