Spec
- THD+N(20Hz-20kHz)
- 0dBu < 0.006%
- Frequency response
- 0 ... 300kHz (-3dB)
- Input impedance
- > 10kohm
- Output impedance
- < 50ohm
- Channels crosstalk
- > 90dB
- Maximum input level
- +26dBu
- Maximum output level
- +26dBu
- Dynamic range
- > 120dB
- Control
- Attack
- 0.1, 0.3, 1, 3, 10, 30 (ms)
- Release
- 0.1,0.3,0.6,0.9,1.2,Auto (s)
- Ratio
- 1.5, 2, 4, 10, INF
- Sidechain Filter
- 60, 90, 150, T1, T2
- THD
- 0% … 8%
- Thereshold
- -20 ... +20dB
- MIX
- Dry .... Wet
- Make up
- 0 ... 20dB

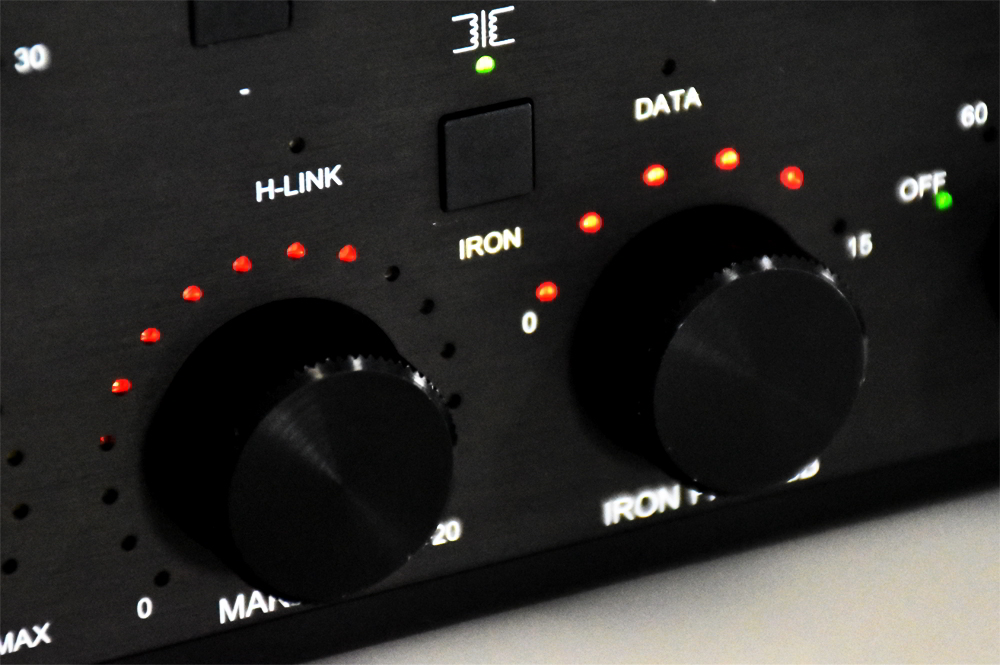

- Iron PAD
- 0 … -15dB
- Power
- 115V
- Size
- EIA 3U (D=約270mm:突起物含む)
