Spec
ELECTRICAL | |
Total rated output power1 | 600 W |
Number of channels | 2 |
Rated output power1 | 2 x 300 W |
Output power: | 4 Ω / 8 Ω / 70 V / 100 V |
Maximum output power per channel (power sharing) | 500 W / 600 W / 500 W / 600 W |
- AMPLIFIER
- Nominal Gain (4 Ω / 8 Ω / 70 V / 100 V)
- 27.0 dB / 30.0 dB / 33.2 dB / 36.2 dB
- Signal to Noise Ratio (A-weighted, ref. to rated output power, LEVEL 0 dB)
- > -100 dB / > 102 dB / > 101 dB / > 103 dB
- THD+N (1/8 Rated Output Power, 1 kHz)
- < 0.1%

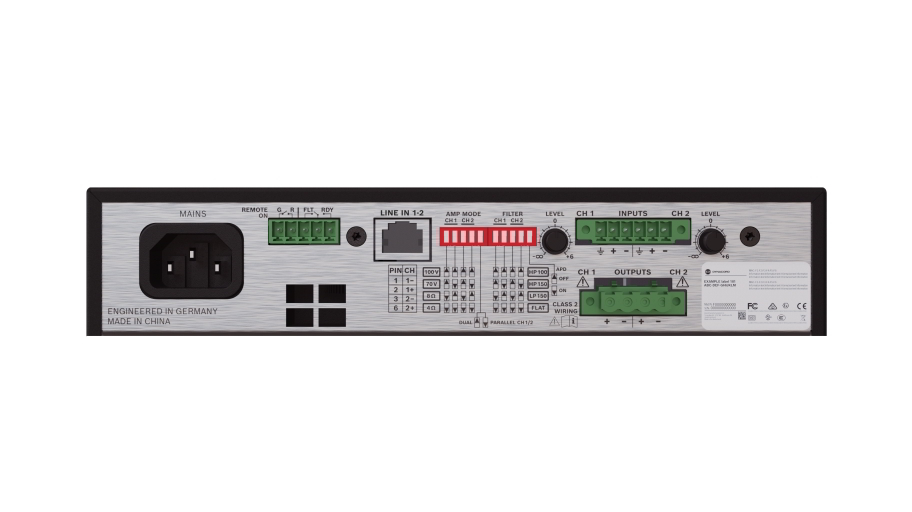

- CONNECTIVITY
- Type
- 1 x 6-pin Euroblock, 3.81 mm, male, parallel 1 x RJ45 (AES72-1E)
- Loudspeaker Output
- 2 x 4-pin Euroblock, 5.08 mm, female
- Control Port Type
- 1 x 5-pin Euroblock, 3.81 mm, male
- GENERAL
- Signal Processing
- Input Routing, Filter (24 dB/Oct.), Hi-pass 30/50/100/150 Hz, Lo-pass 150 Hz, Peak Limiter
- Power Requirements
- 100 V to 240 V, 50 Hz to 60 Hz AC
- Power Consumption
- Idle mode (ecoRAIL with no input signal): < 12 W
- Consumption at 1/8 rated output power: 115 W
- Standby mode (APD active): < 1 W
- Protections
- Audio limiters, high temperature, DC, HF, short circuit, back-EMF, peak current limiters, inrush current limiters, mains over/under voltage protection
