Spec

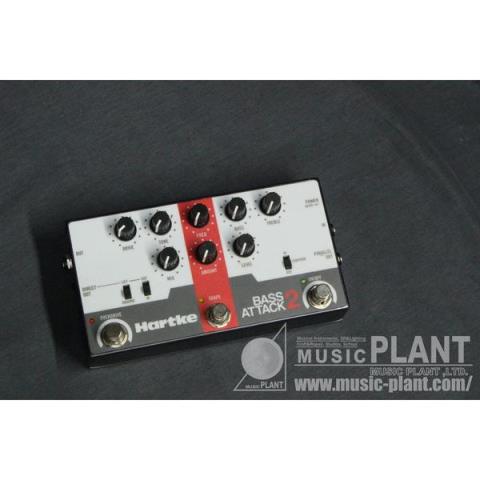

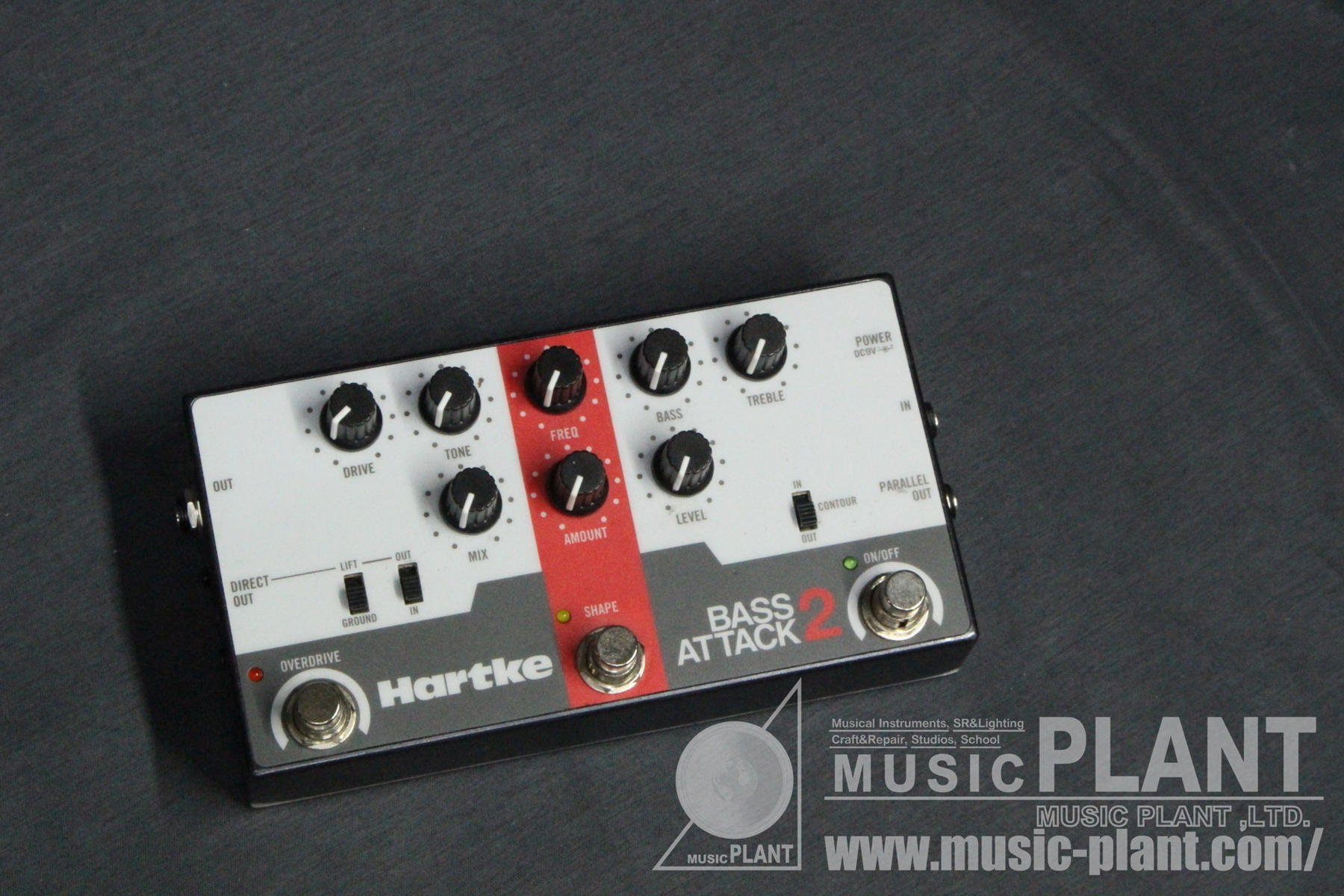

Bass preamp and direct box with overdrive
Shape EQ circuit with Frequency and Amount control
Bass and Treble knobs with Contour EQ switch
Overdrive effect with Mix wet/dry control
XLR direct output with Pre/Post and Ground Lift switches
1/4" parallel and effect outputs
Powered via two AA batteries, AC adapter (sold separately) or phantom power
Rugged, zinc die cast stompbox-style design
Input Impedance: 1 Meg Ohm
Output Impedance OUT: Unbalanced 1k Ohm
Direct Out: Balanced 400 Ohm
Parallel Out: same as Input Source
Level: +6dB to -24dB
Tone Controls Bass: +/- 15dB, 30 Hz
Treble: +/- 18dB, 20kHz
Contour {Switch}: Fixed Mid Scoop Curve
Shape Frequency: 200Hz to 800Hz
Amount: +15/-25dB
Direct Output IN/OUT {Switch} IN: Parallel Input jack, OUT: Parallel Output jack
LIFT/GROUND {Switch}: Isolates the Input and Direct Output signal grounds
Power {in jack}: 9VDC center negative
Batteries: 2x AA - internal up-converter to generate 9v
