Spec (Point5 Proのスペックです)
- Driver Complement
- Low Frequency:ACS-Point5 Pro: Apogee 5.25 inch (133 mm)
Ferrofluid™ cooled, Kevlar™ composite permanent
magnet cone type driver - High Frequency:0.5 inch (13 mm) Mylar tweeter
Nominal Impedance 8 ohms, both models - Sensitivty1
- 87.5 dB SPL / 100 Hz - 20 kHz
- FREQUENCY RESPONSE
- 100 Hz - 20kHz ± 3 dB, 1m on axis; -10 dB @ 60 Hz
- SOUND PRESSURE LEVEL2
- Point5 Pro: 108 dB cont, 114 dB peak @ 1m
- MAX POWER HANDLING3
- Point5 Pro: 150 watts continuous, 600 watts peak
- DISPERSION4
- 4 Horizontal —100 degrees
- Vertical — 100 degrees
- INPUT CONNECTORS
- Spring Terminals
- GRILL
- Coated perforated metal
- RIGGING HARDWARE
- Four 1/4-20 threaded inserts
- COLOR
- Black
- DIMENSIONS
- 9.25 inch (235 mm) high by 6.25 inch (159 mm) wide (front)
- 5.625 inch (143 mm) wide (rear) by 7 inch (178 mm) deep
- WEIGHT
- Point5 Pro:2.0 kg
- 1 watt @ 1 meter, unless otherwise specified
- Measured at rated MAX POWER HANDLING
- Max power with music program
- 6 dB down Points

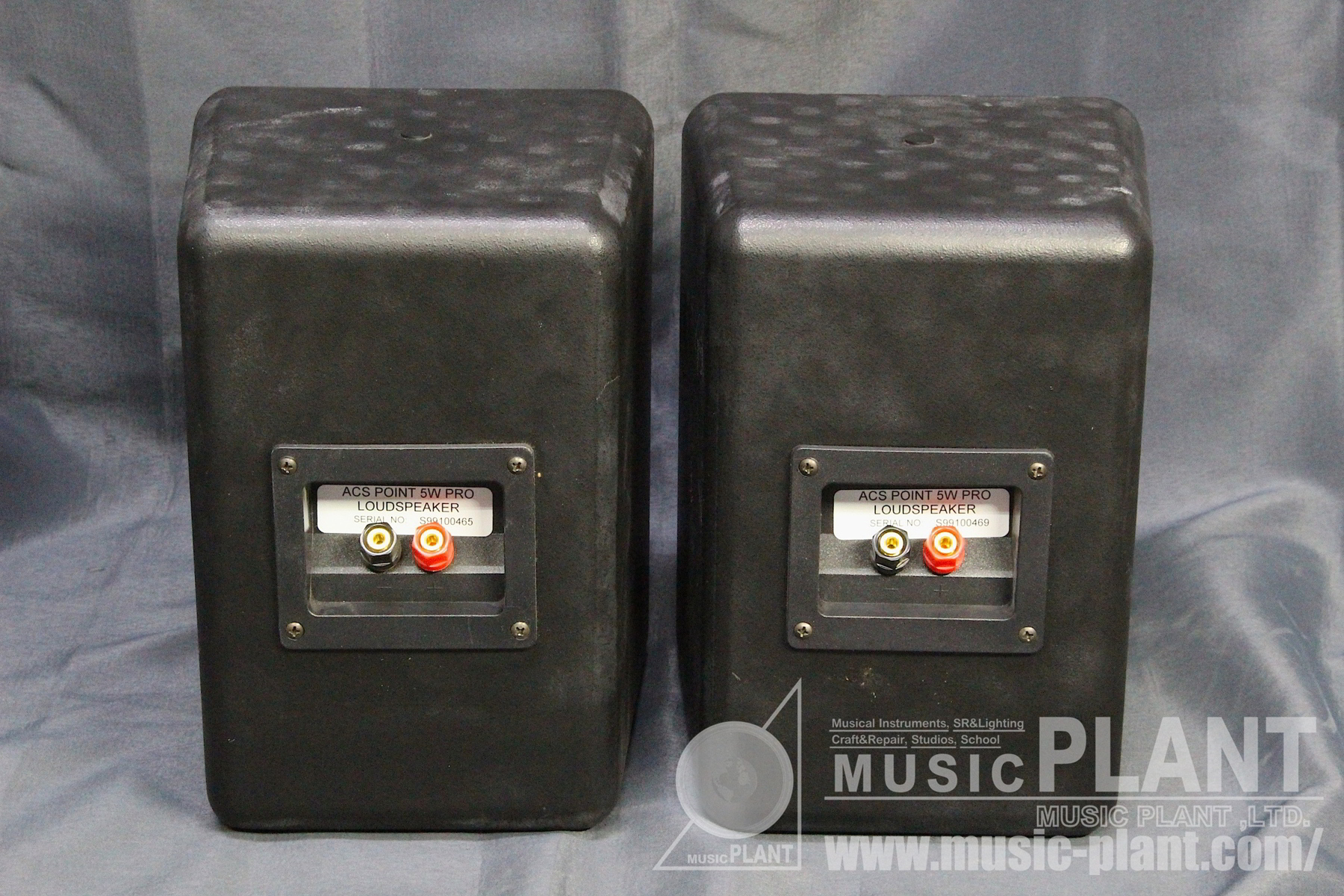

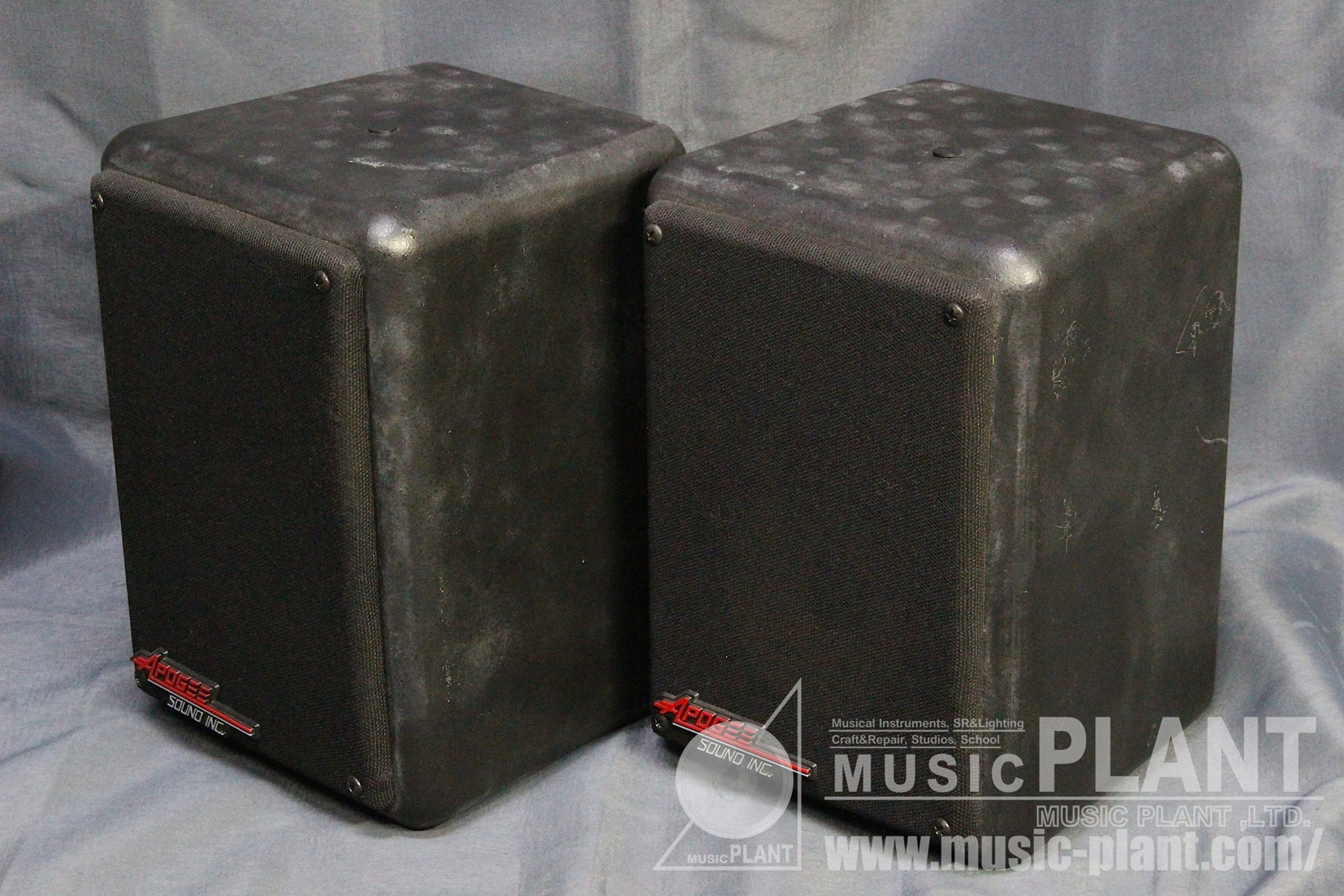

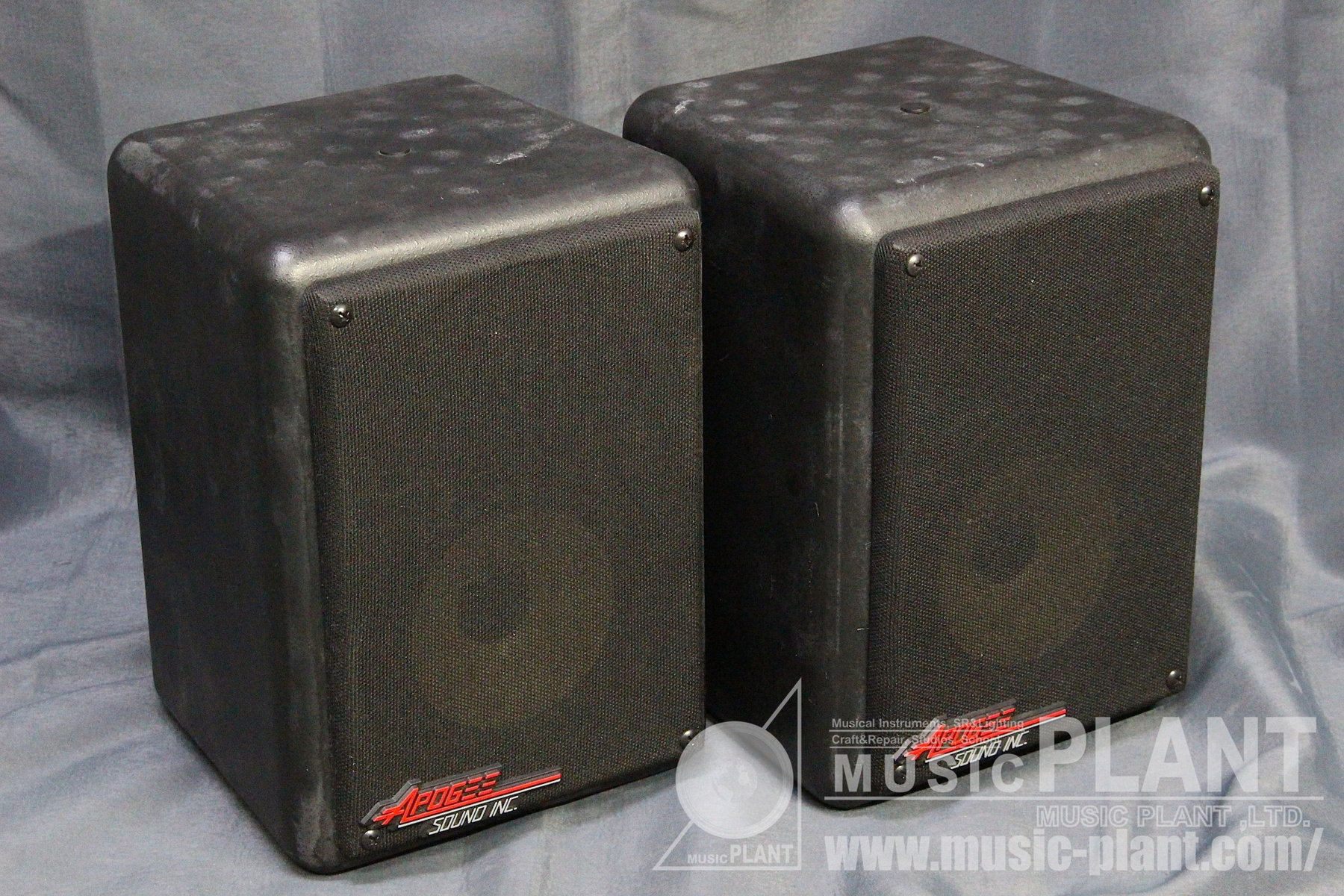

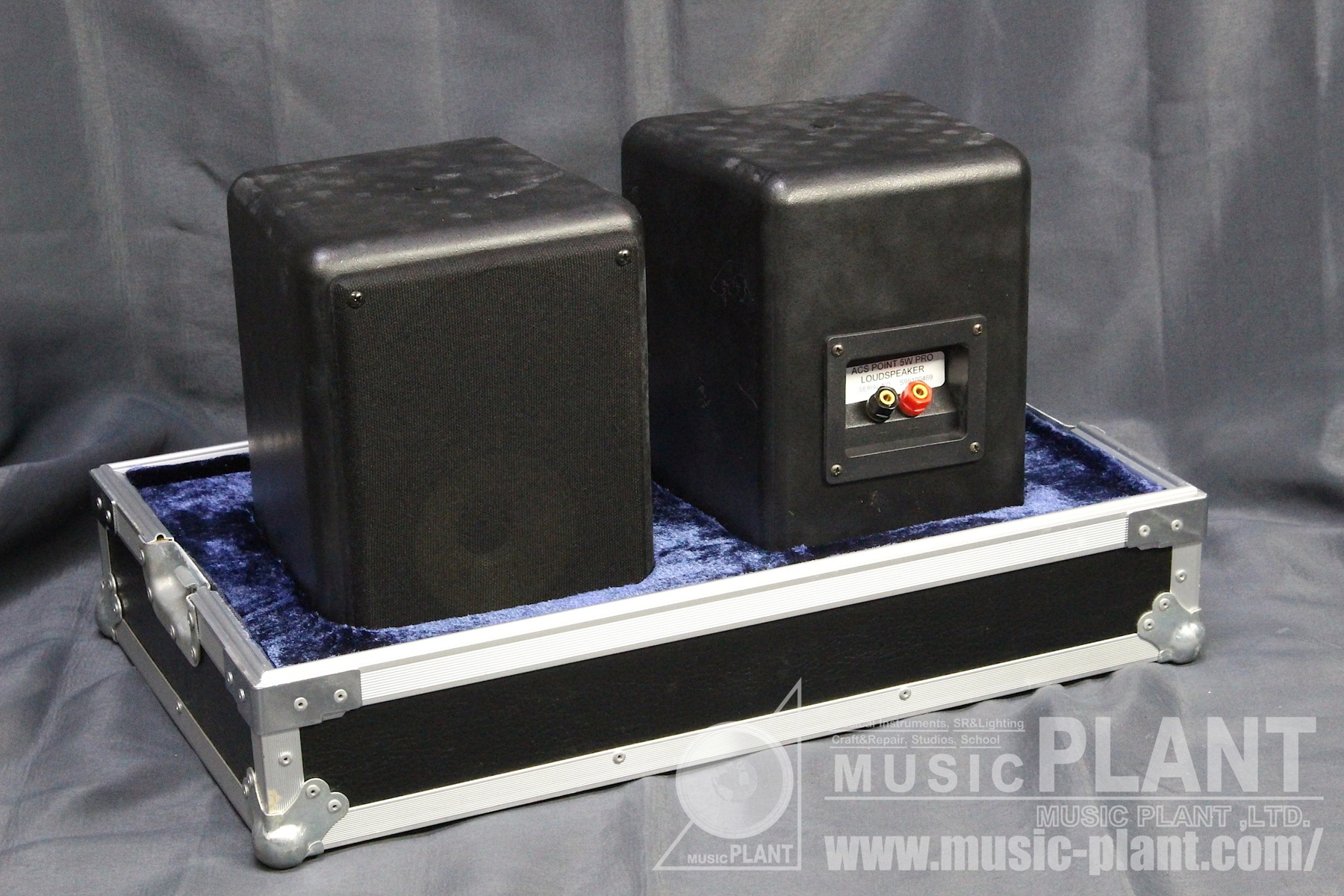

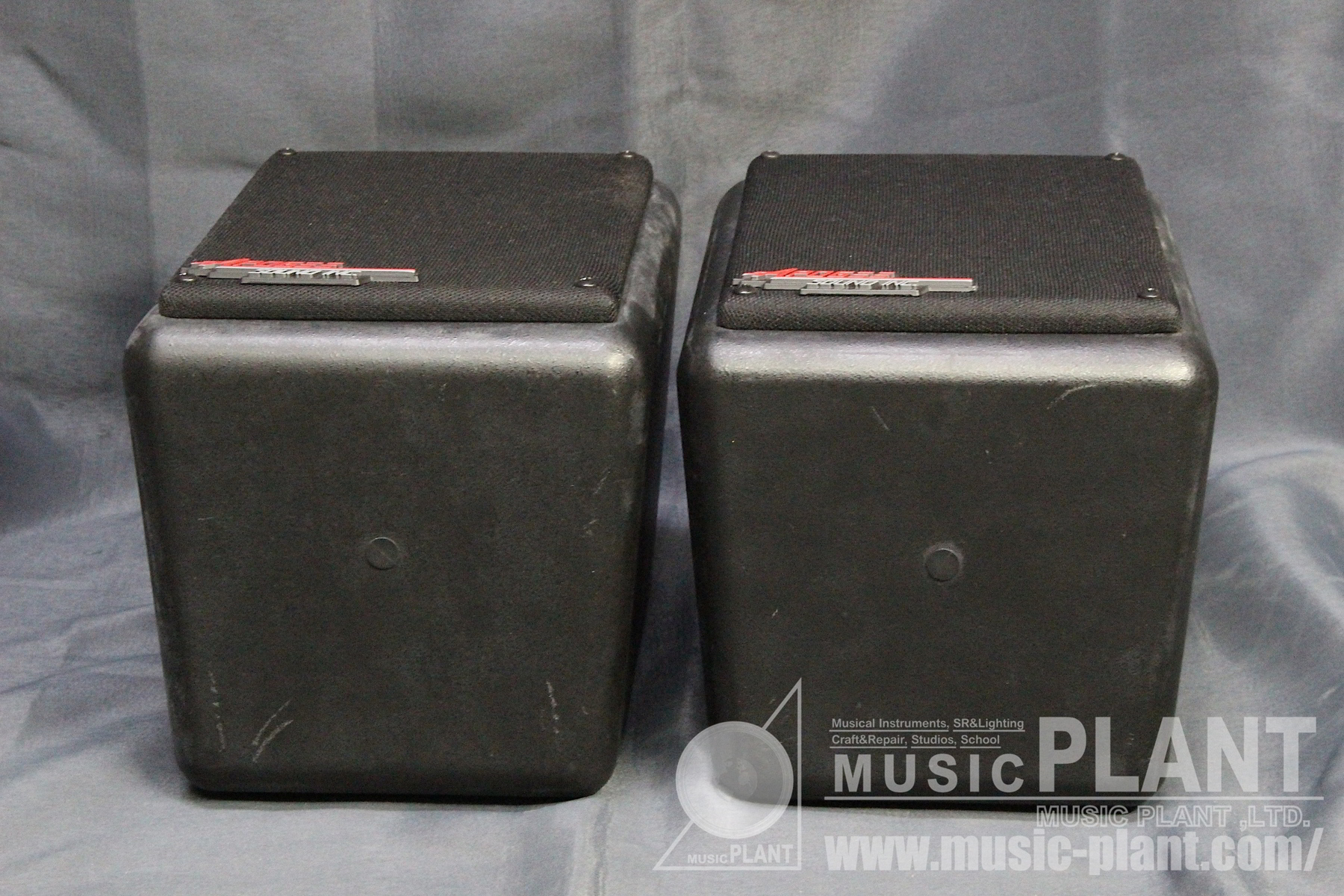

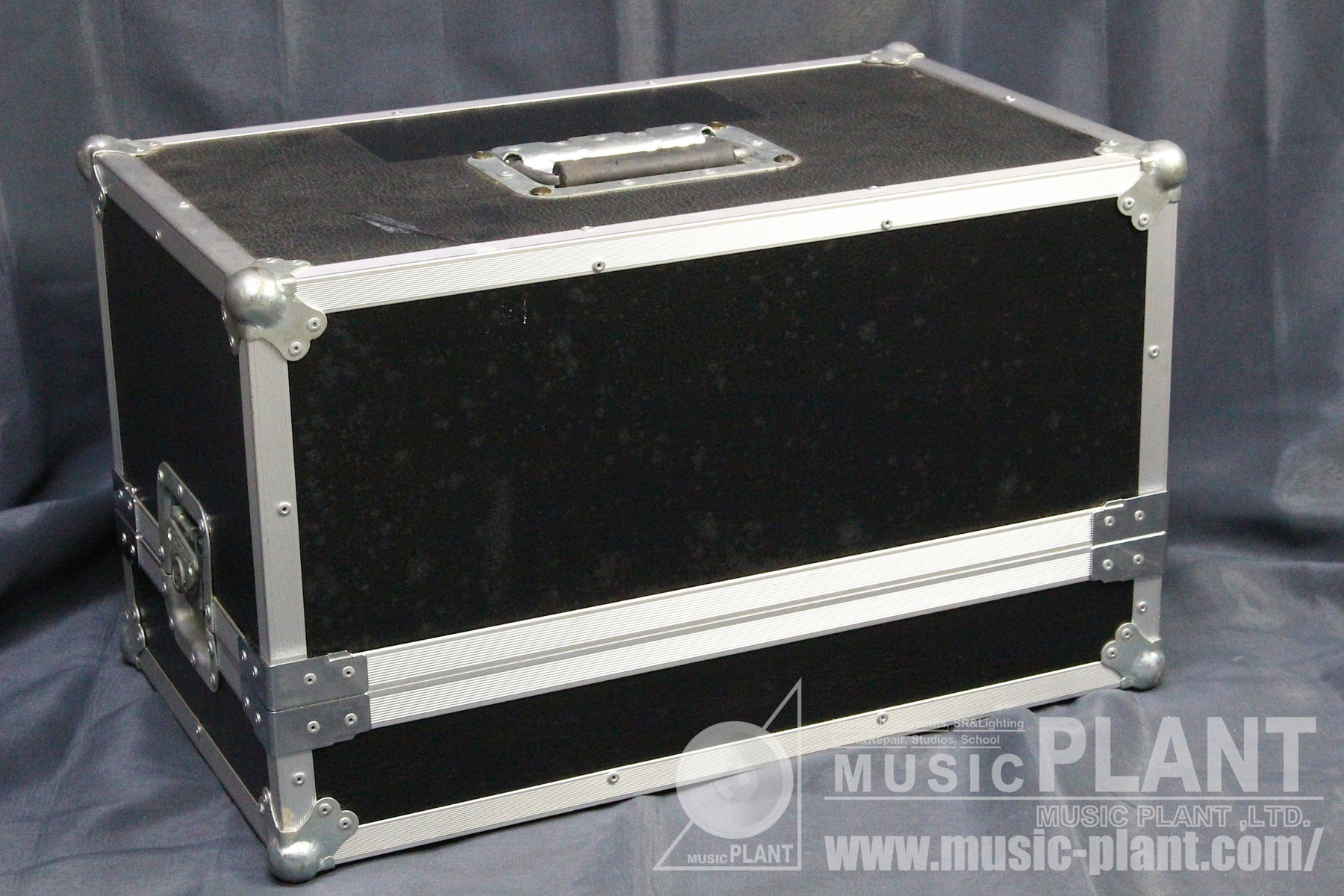

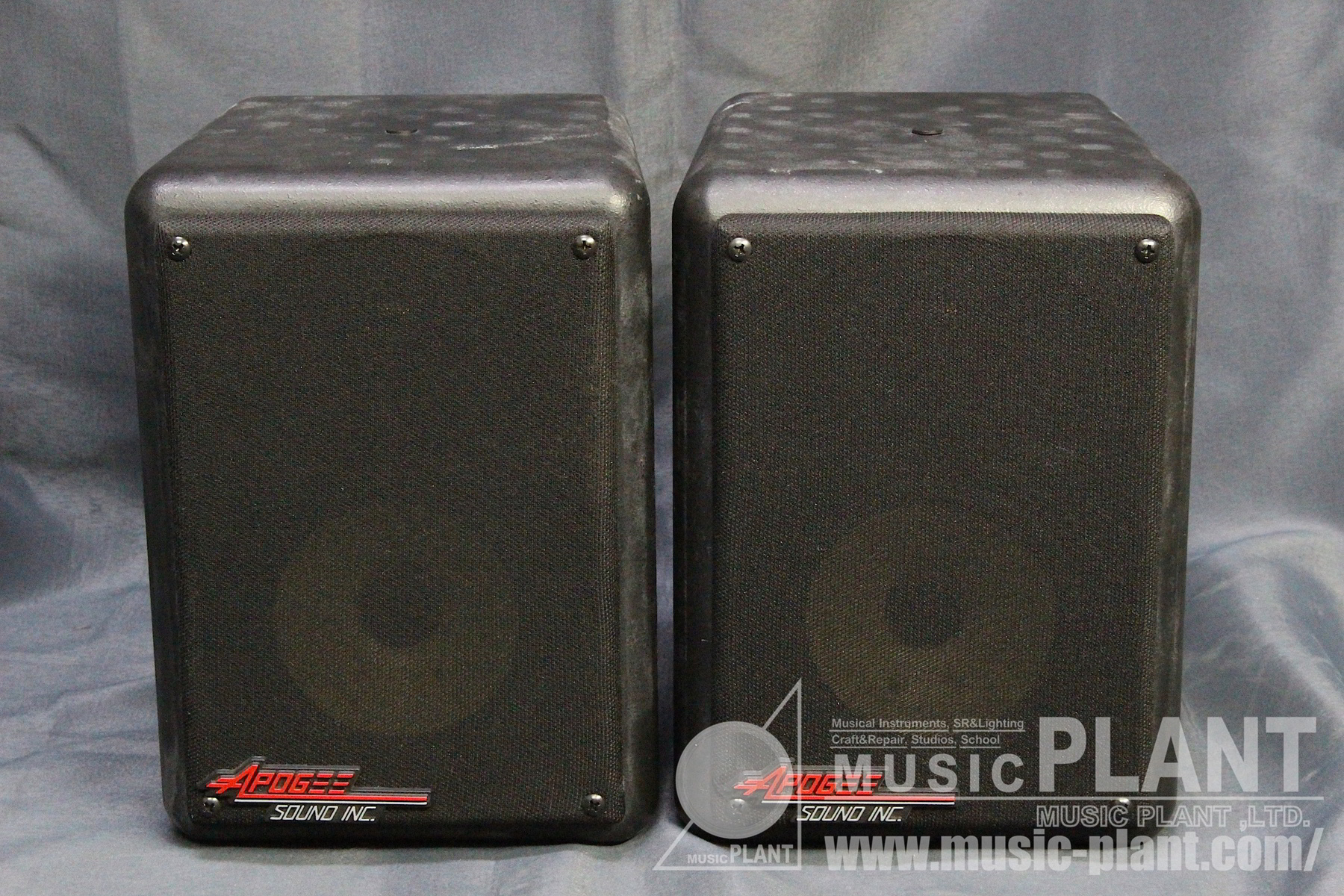

追加画像
クリックで別ウインドウで拡大します。
