特徴
Spec
- Type
- Pressure Gradient Condenser
- Capsule
- TK51 Edge Terminated Diaphragm
- Tube Type
- 6072A
- Transformer
- Custom Wound Haufe Transformer
- Polar Pattern
- Cardioid, Omnidirectional, Figure-8

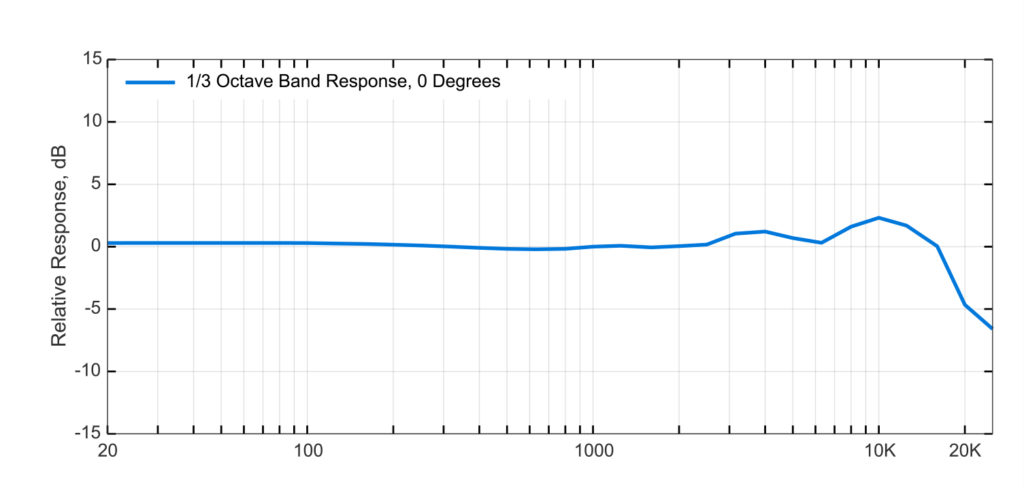

- Frequency Range
- 20Hz - 20kHz
- Sensitivity
- 19 mV/Pa
- THD at 1kHZ at 1Pa (Amplifier)
- < 0.4%
- Output Impedance
- < 300 Ω
- Maximum SPL (for 1% THD)
- 128 dB
- S/N Ratio
- 86 dBA
- Self Noise (Amplifier)
- 8 dBA
- Dimensions/Size
- 200 mm L x 46 mm Dia
- Weight
- 615 g
- Current Draw from Mains
- 50 mA

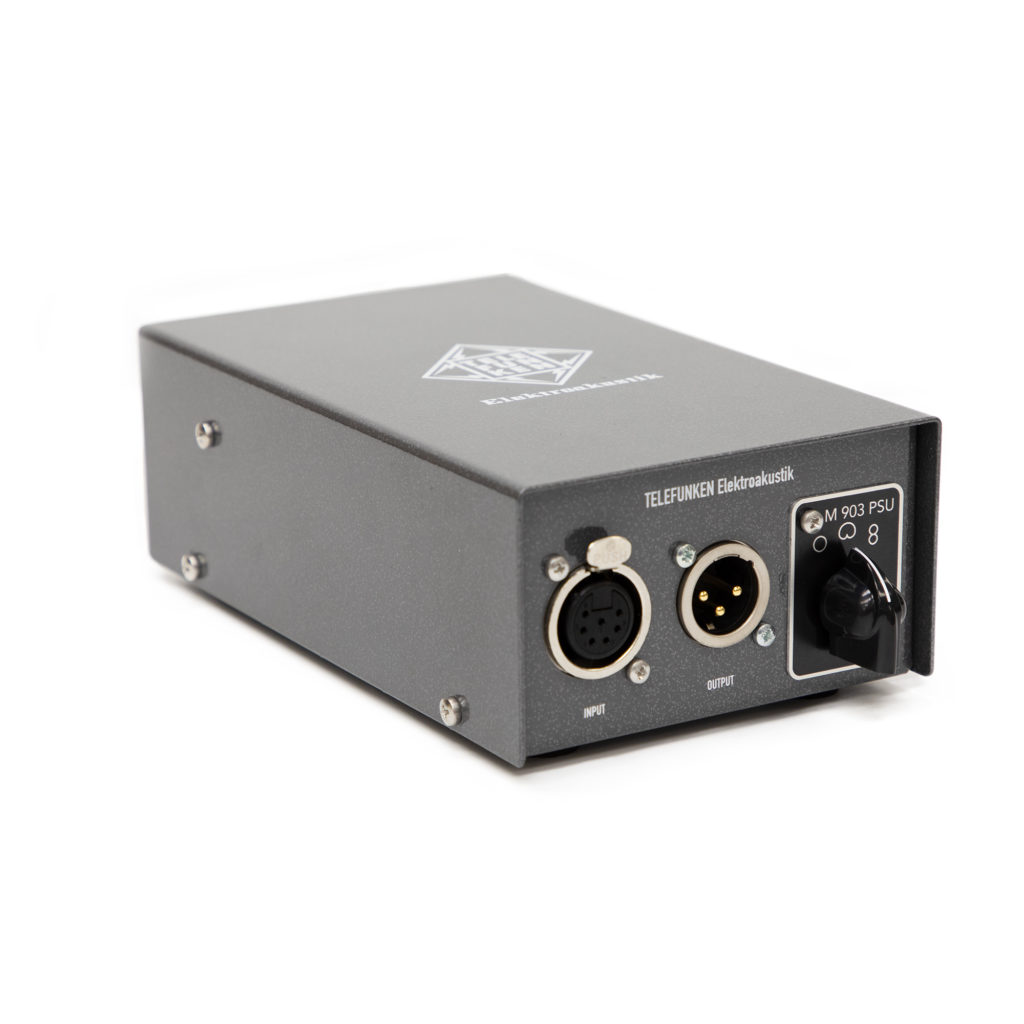

- Power Supply
- M 903 PSU - 7 Pin Female XLR Input, 3 Pin Male XLR Output, Polar Pattern Selector
- Cable

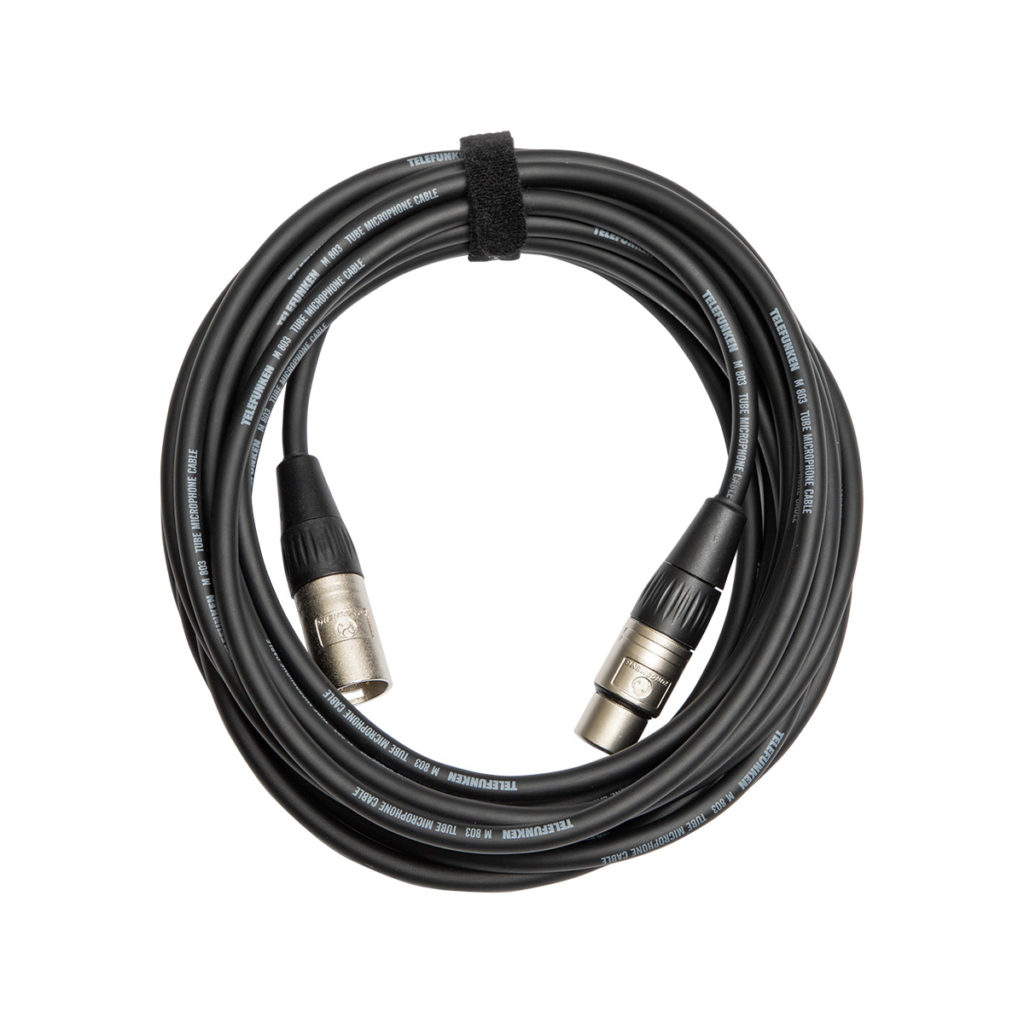

- M 803 - 7 Meter TELEFUNKEN Tube Microphone Cable, 7 Pin Male & Female XLRs

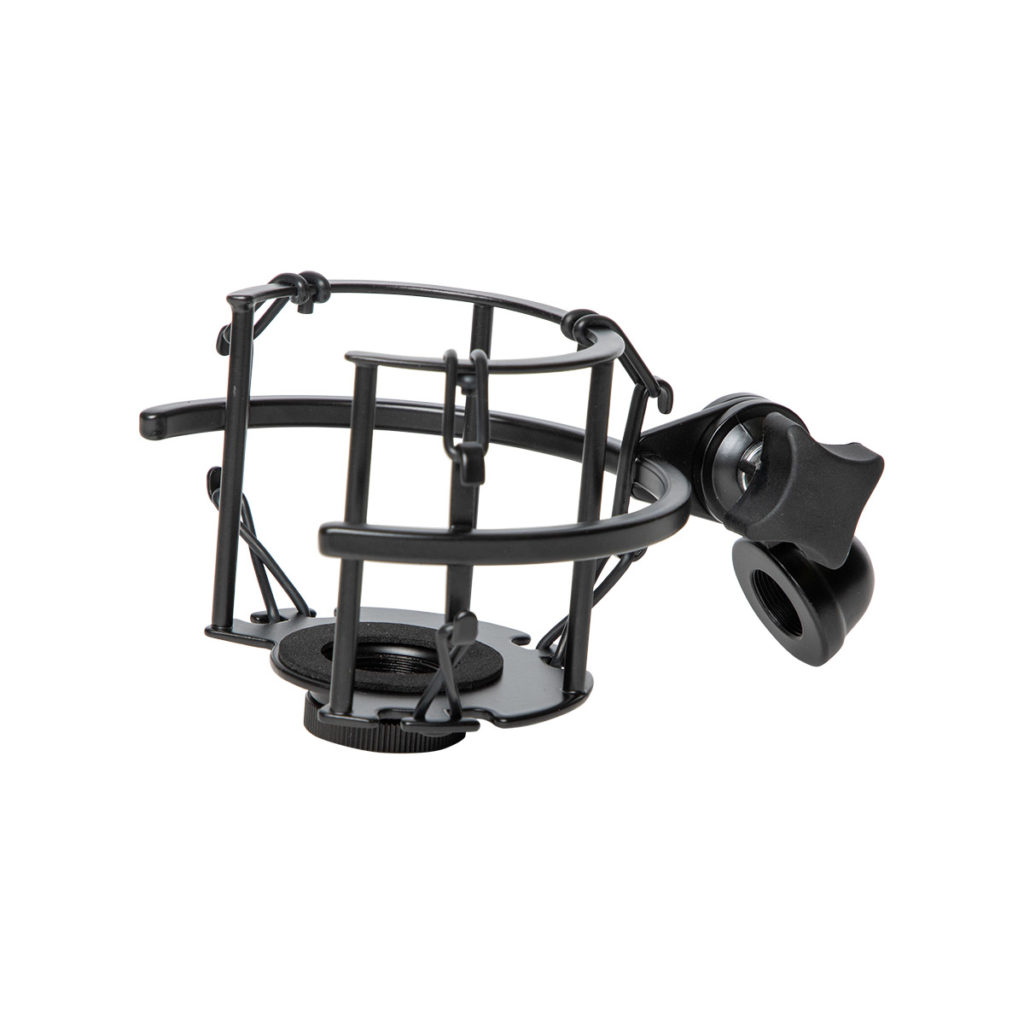

- Shock Mount

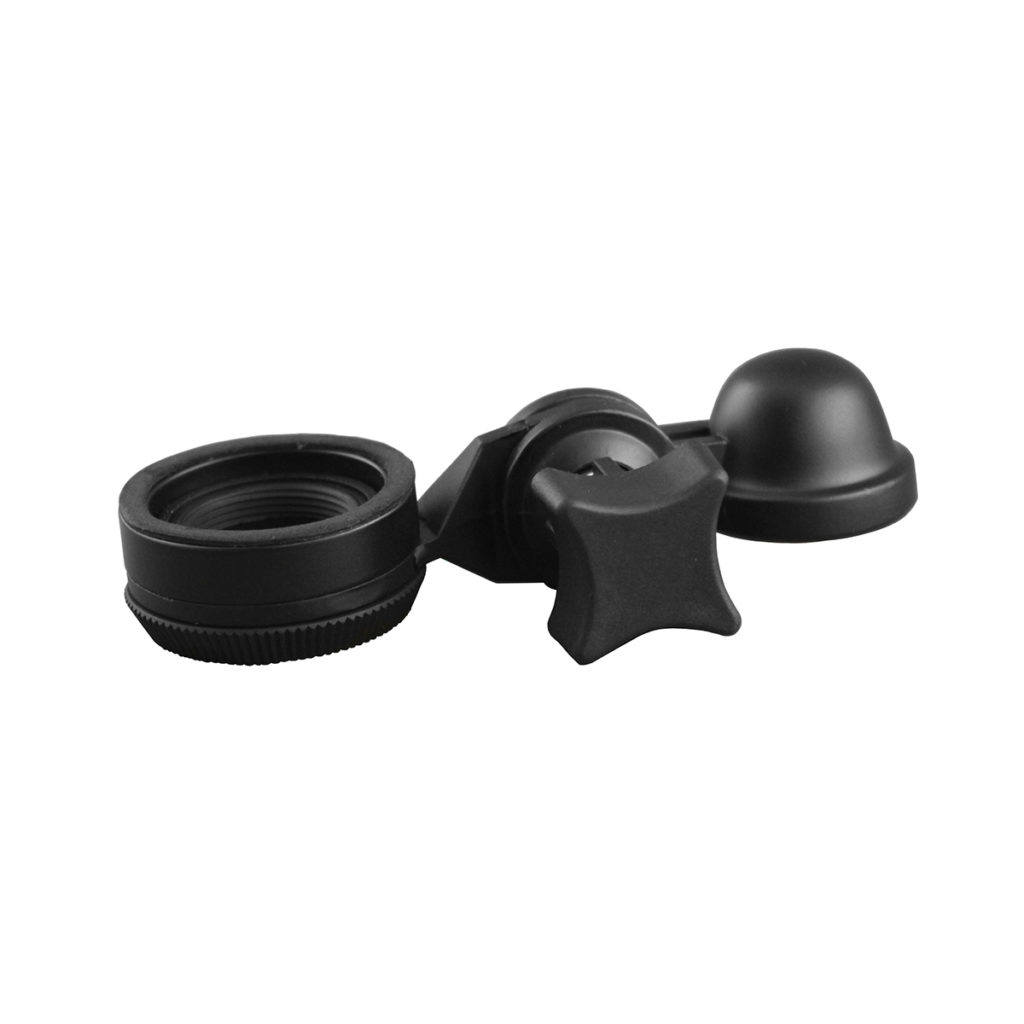

- M 703 - Shock Mount, M 782 - Stand Mount

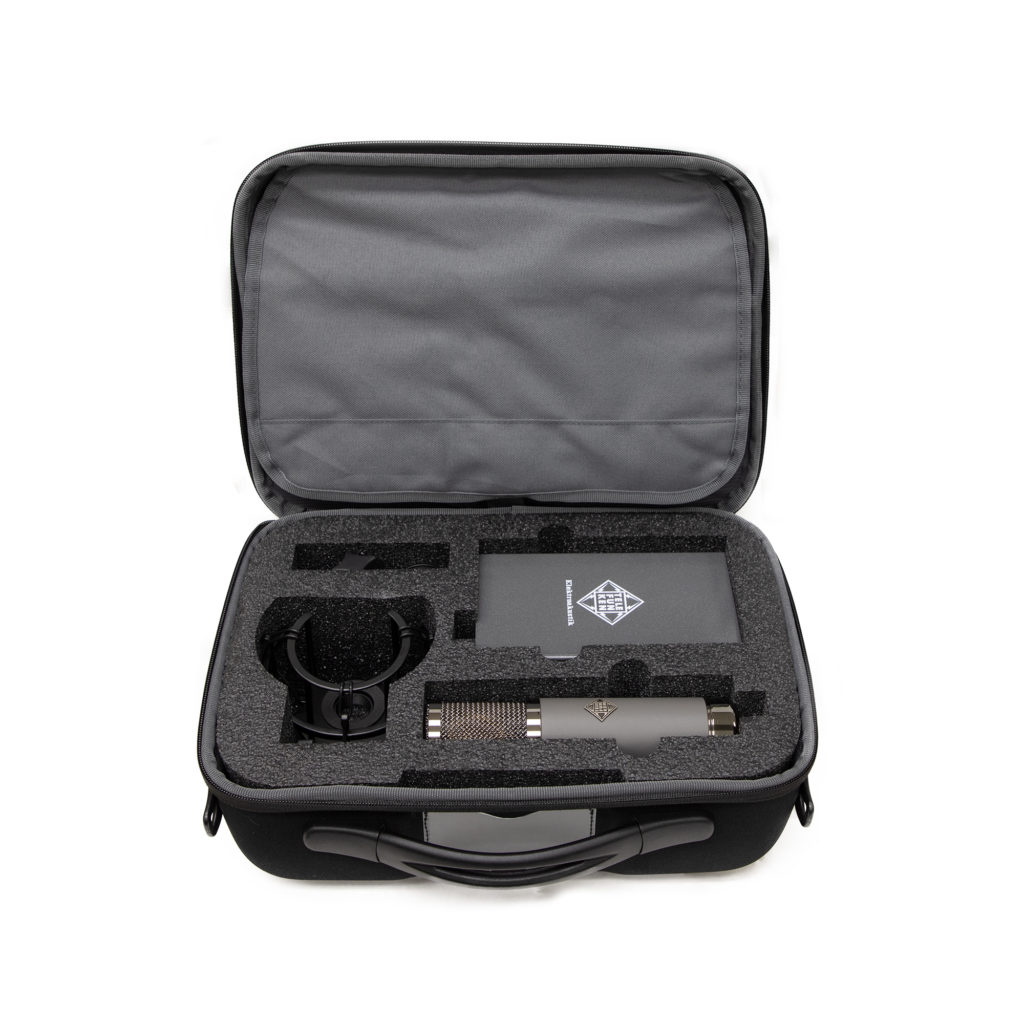

- Flight Case
- ZC03 - Light Weight Carrying Case
追加画像
クリックで別ウインドウで拡大します。
