Spec
- Acoustical operating principle
- Pressure gradient transducer

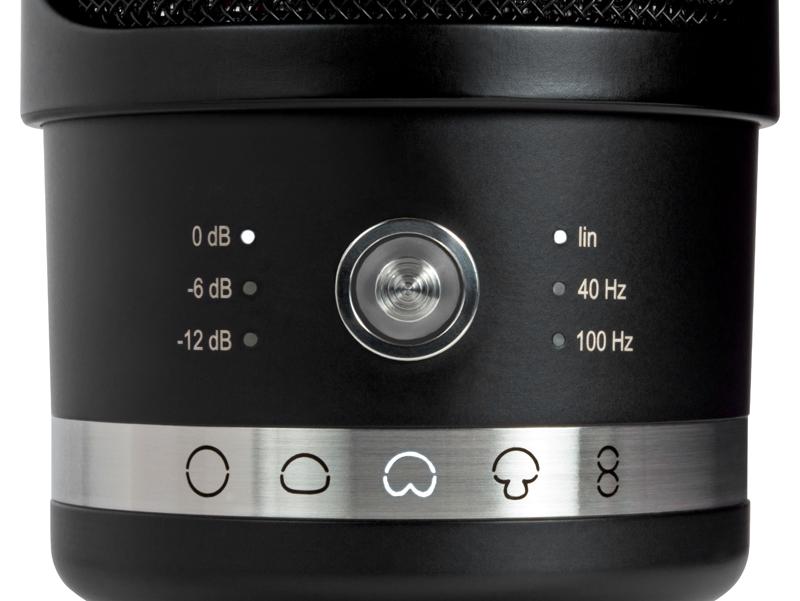

- Directional pattern
- Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
- Frequency range
- 20 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm
- 11 mV/Pa
- Rated impedance
- 50 ohms
- Rated load impedance
- 1 kohms
- Equivalent noise level, CCIR1)
- 22 dB
- Equivalent noise level, A-weighted1)
- 10 dB-A
- Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)
- 72 dB
- Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)
- 84 dB
- Maximum SPL for THD 0.5%2)
- 141 dB
- with preattenuation -6 dB
- 147 dB
- with preattenuation -12 dB
- 153 dB
- Max. output voltage for THD < 0.5 %
- 10 dBu
- Power Supply (IEC 61938)
- P48
- Current consumption
- 3.2 mA
- Required connector
- XLR 3 F
- Weight
- 445 g
- Diameter
- 64 mm
- Length
- 145 mm
