Spec

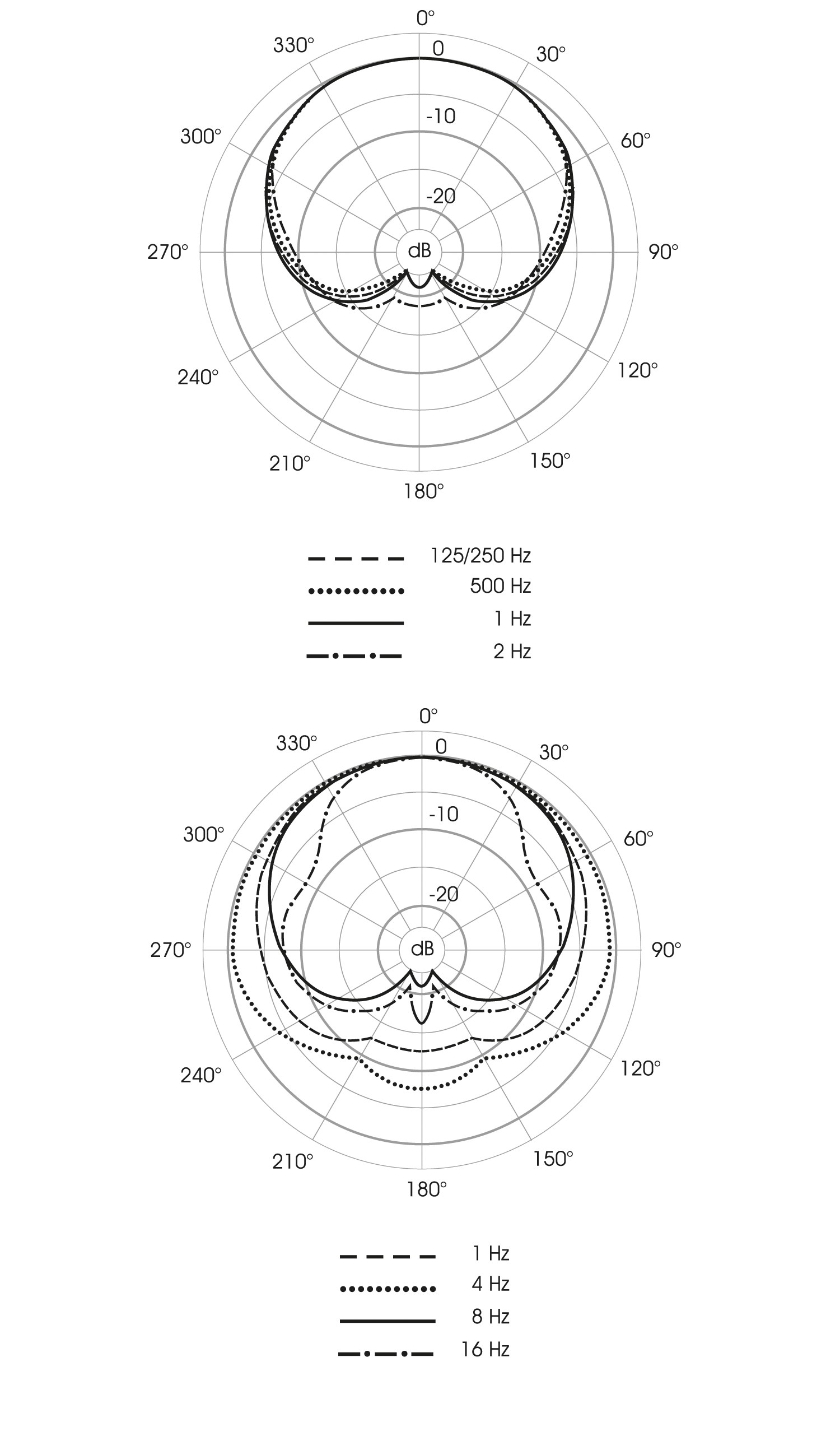

Polar pattern | cardioid | |
Acoustic operating principle | pressure gradient transducer | |

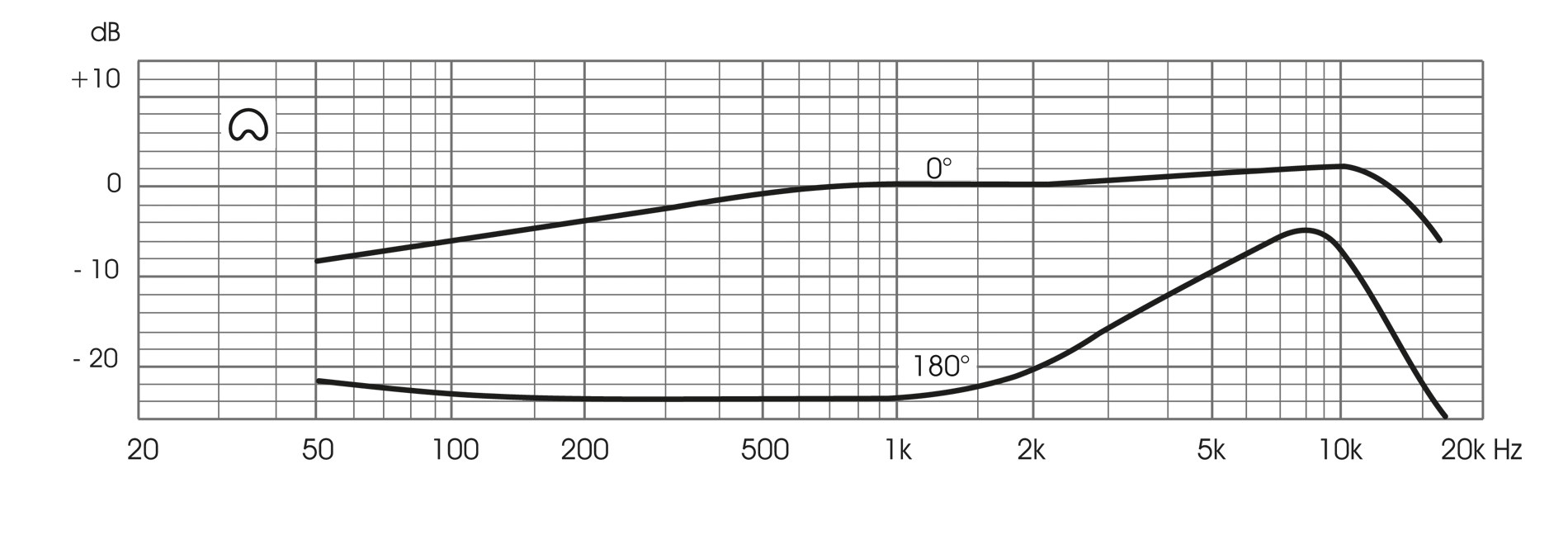

Frequency range | 20 Hz to 20.000 Hz | |
Sensitivity at 1 kHz | 17 mV/Pa | |
Switch position "reduced bass roll-off" at 60 Hz | -15 dB | |
Output impedance | 150 Ohm | |
Noise level | CCIR 468-4 | 22 dB |
DIN EN 60268-4 | 13 dB-A | |
Signal-to-noise ratio | CCIR weighted | 72 dB |
A-weighted | 81 dB | |
SPL for THD 0,5 % | 133 dB | |
with 10 dB preattenuation | 143 dB | |
Dynamic range | 120 dB | |
Current consumption | 3 mA | |
Output connector | XLR3M | |
Weight | 160 g | |
Length | 166 mm | |
Diameter | 21/25 mm | |
Surface | satin nickel, black matt |
