Spec
- Free field frequency response ±6 dB
- 30 Hz … 22 kHz
- Free field frequency response ±3 dB
- 34 Hz … 21 kHz
- Free field frequency linearity deviation between 100 Hz and 10 kHz
- ± 1.1 dB
- Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu)
- <20 dB(A) SPL
- Sine wave output with a THD < 0.5 % at 1 m in half space
- 95 dB SPL (>85 Hz)
- Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz)
- 116.3 dB SPL
- Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz)
- 110.3 dB SPL
- Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz)
- 106.8 dB SPL
- Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions
- 108 dB(C) SPL
- Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced
- ±0.87; ±0.39; ±0.23 dB
- Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range)
- 100 dB(C) SPL
- Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer)
- 107 dB(C) SPL
- Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range)
- 93 / 99 dB(C) SPL
- Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer)
- 94 / 100 dB(C) SPL
- Display Brightness
- White: 100%/60%/30%/off; Red: 100%/60%/30%
- Output power midrange amplifier (THD+N with limiter deactivated: 10%)
- 90 W
- Output power midrange amplifier (THD+N with limiter deactivated: 0.1%)
- 70 W

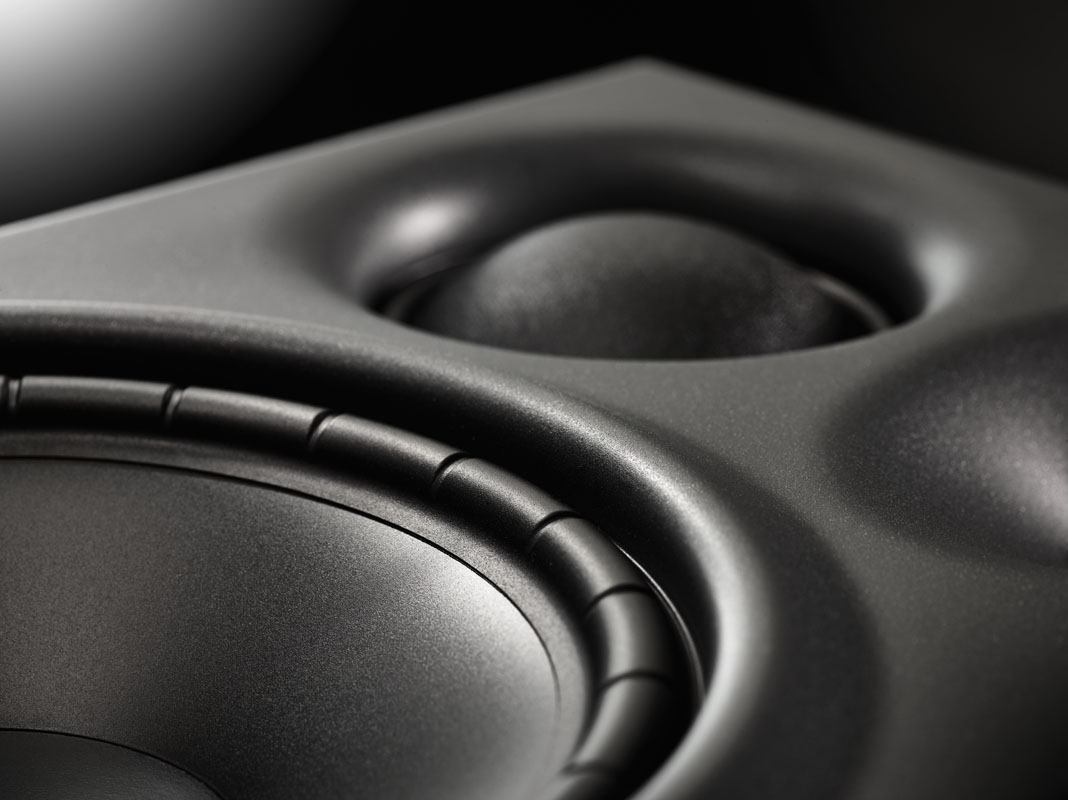

- Midrange
- 75 mm (3") with magnetic sheilding
- Bass Extension (Hz, -6 dB)
- 30
- Maximum output level (dB SPL)
- 116.3
- Max. Listening Distance up to (m)
- 6
- Analog input(s)
- XLR: analog electronically balanced
- Analog input impedance
- >13k Ohms
- Max. input level
- +24 dBu
- Common mode rejection ratio (CMRR)
- >56 dB @ 15kHz
- Input gain control (sensitivity)
- 0 dB ... -15 dB
- Output level control (output level in 1 m based on 0 dBu input level)
- 94; 100; 108; 114 dB SPL

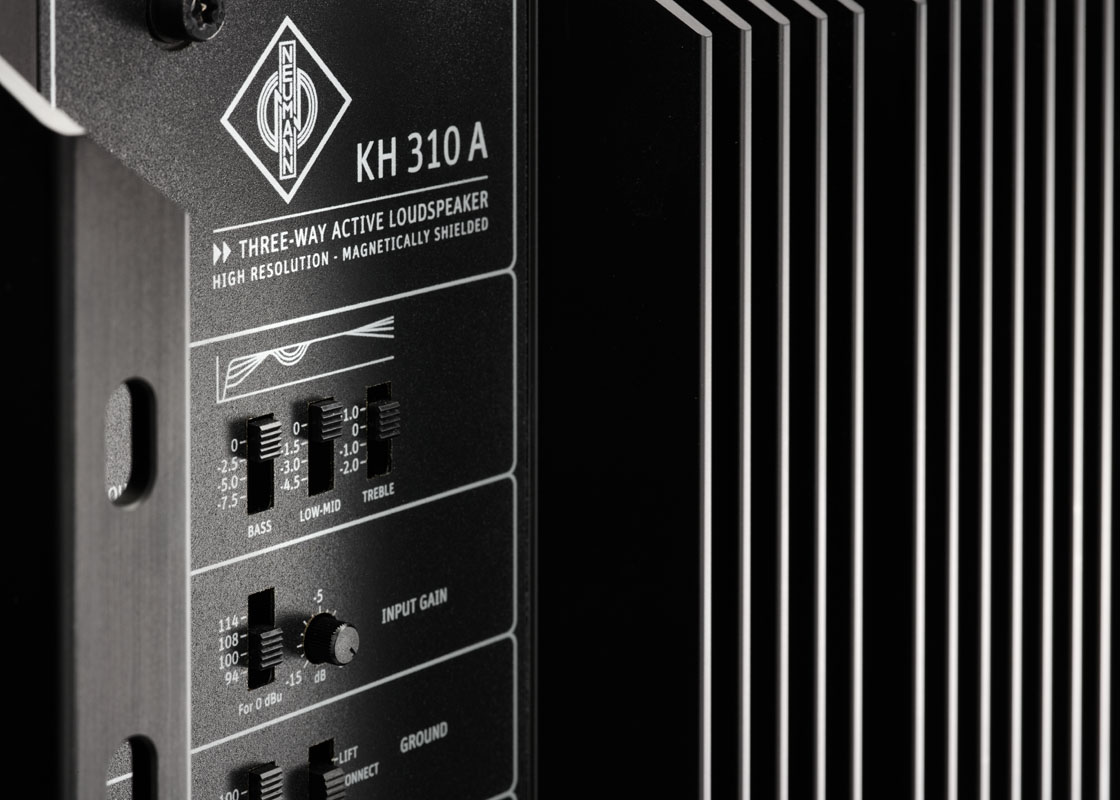

- Equalization: Bass
- 0; -2.5; -5; -7.5 dB
- Equalization: Low-Mid
- 0; -1.5; -3; -4.5 dB
- Equalization: Treble
- +1; 0; -1; -2 dB
- Controller design
- Analog; active
- Crossover frequency
- 650 Hz and 2.0 kHz
- Crossover slope
- 24 dB/oct; 4th order
- Protection circuitry
- Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters. Amplifier overheat.
- Infrasonic filter: frequency; slope
- 15 Hz; 6 dB/oct.
- Display: On; Normal Operation
- Neumann logo “White”
- Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute
- Neumann logo “Red”
- Output power woofer amplifier (THD+N with limiter deactivated: 10%)
- 210 W
- Output power tweeter amplifier (THD+N with limiter deactivated: 10%)
- 90 W
- Output power woofer amplifier (THD+N with limiter deactivated: 0.1%)
- 150 W
- Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%)
- 70 W

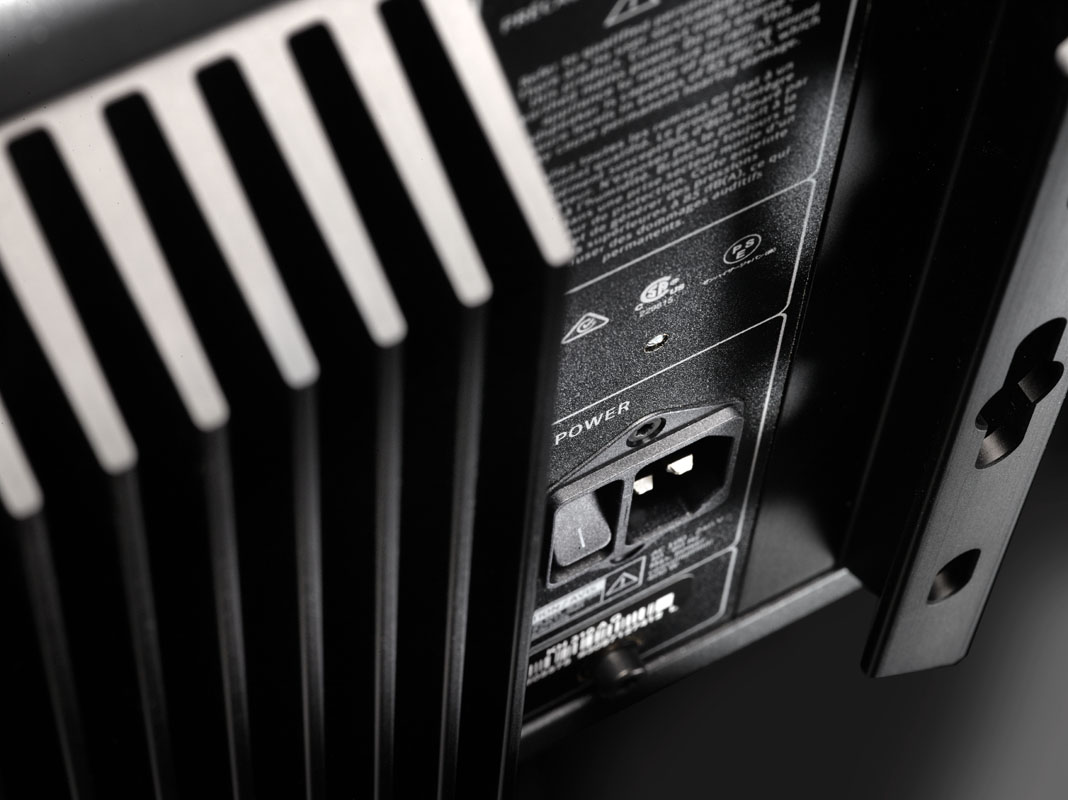

- Mains Power Supply: input voltage; frequency
- 100-240V; 50/60 Hz
- Power consumption (230 V / 100 V): Idle
- 24 W
- Power consumption (230 V / 100 V): Full output
- 300 W
- Cabinet material
- Polyurethane front, wooden sleeve, aluminum electronics panel
- Cabinet surface finish; color (front / back)
- Painted; metallic anthracite (RAL 7021) / black (RAL 9005)
- Operating conditions
- +10° C to +40° C (+50° F to +104° F); <90% RH, non-condensing
- Transport/storage conditions
- -25° C to +70° C (-13° F to 158° F); <90% RH; non-condensing
- Woofer
- 210 mm (8 1/4") magnetically sheilded

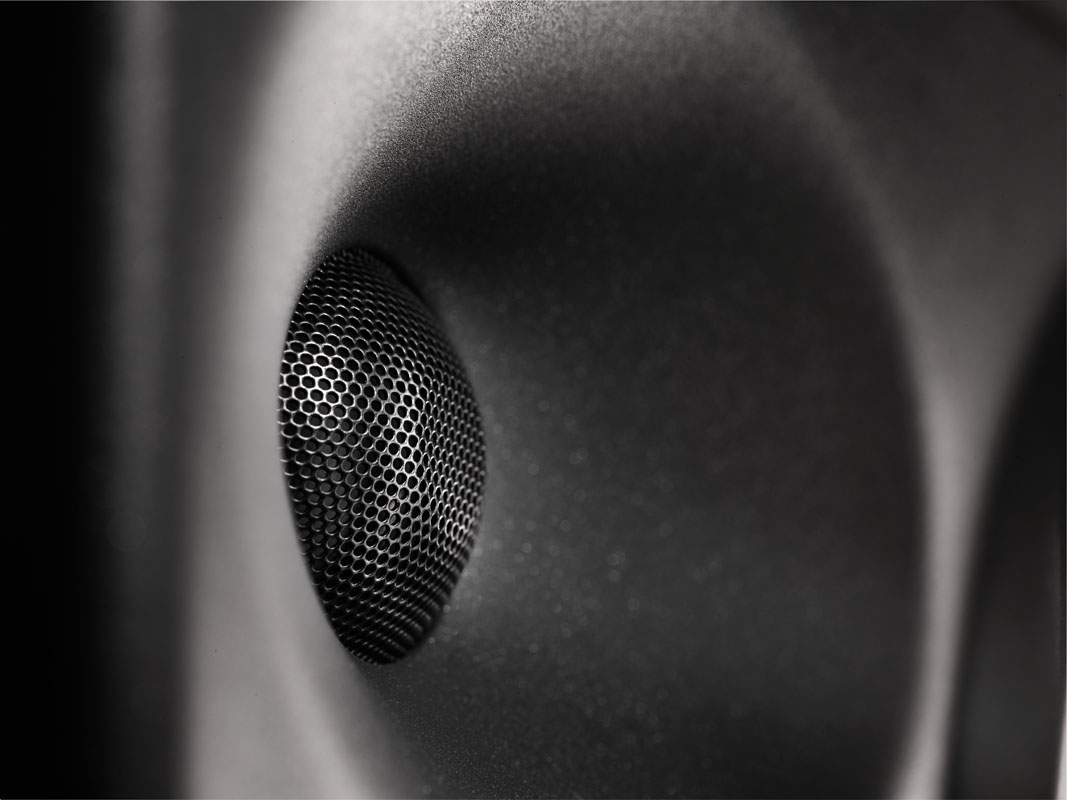

- Tweeter
- 25 mm (1") with protecting black metal grille
- Mounting points
- 2 x M8 on side panels; thread depth from outside of cabinet 25 mm (1”);Rear panel screws for attaching LH 41 base plate
- Product dimensions (height x width x depth)
- 253 x 383 x 292 mm (10" x 15 1/8" x 11 1/2")
- External net volume
- 28.3 liters
- Packed dimensions (height x width x depth), mm (inches)
- 360 x 380 x 590 mm (14 1/8" x 15" x 23 1/4")
