Spec

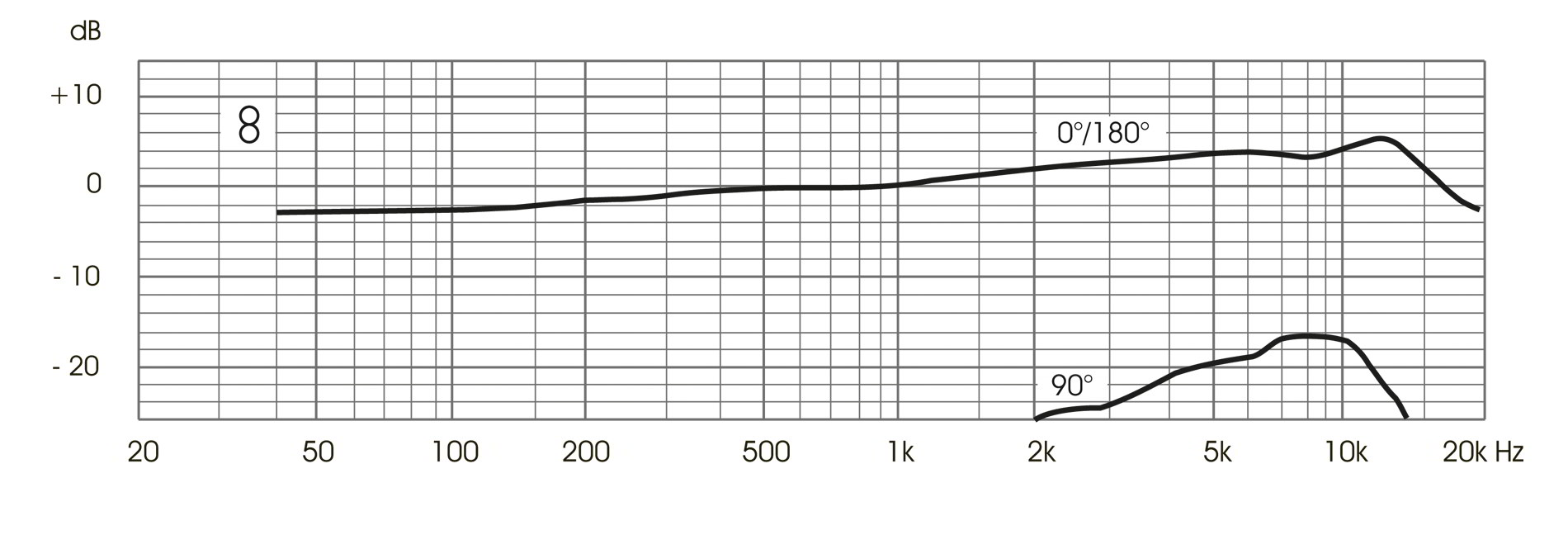

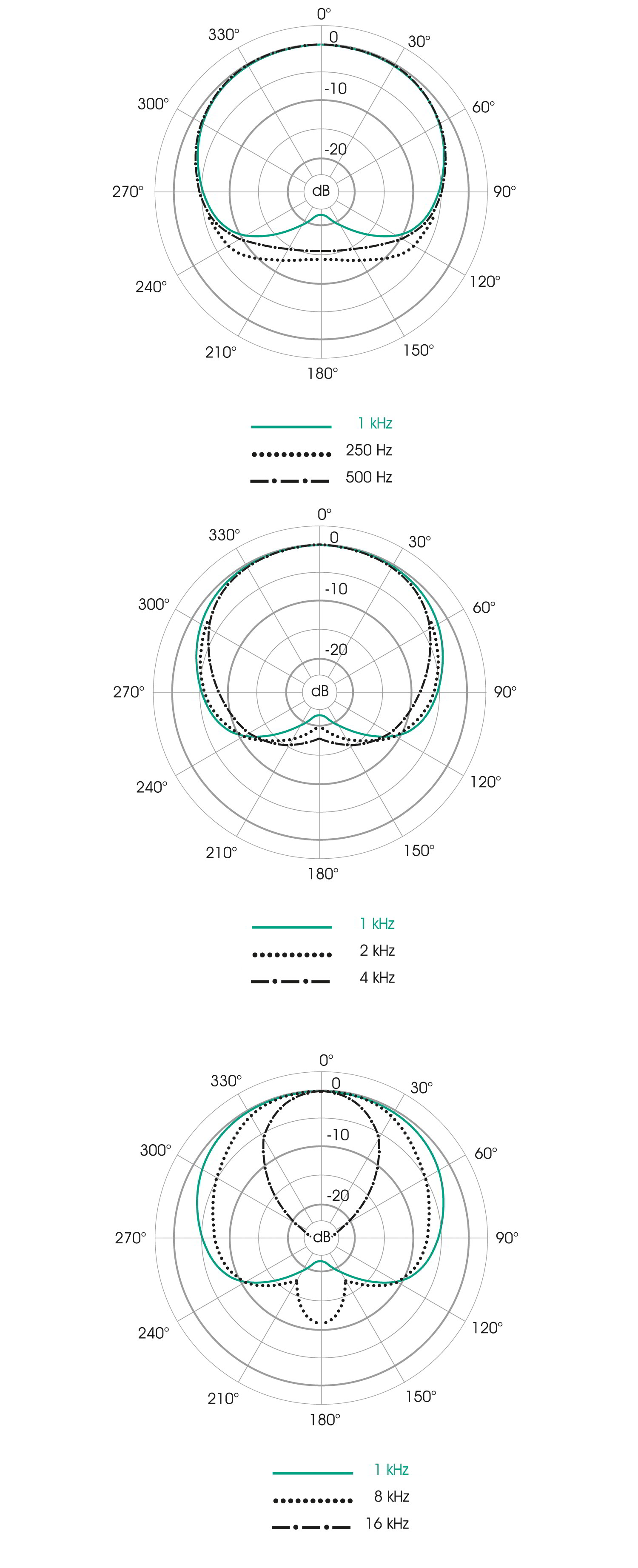

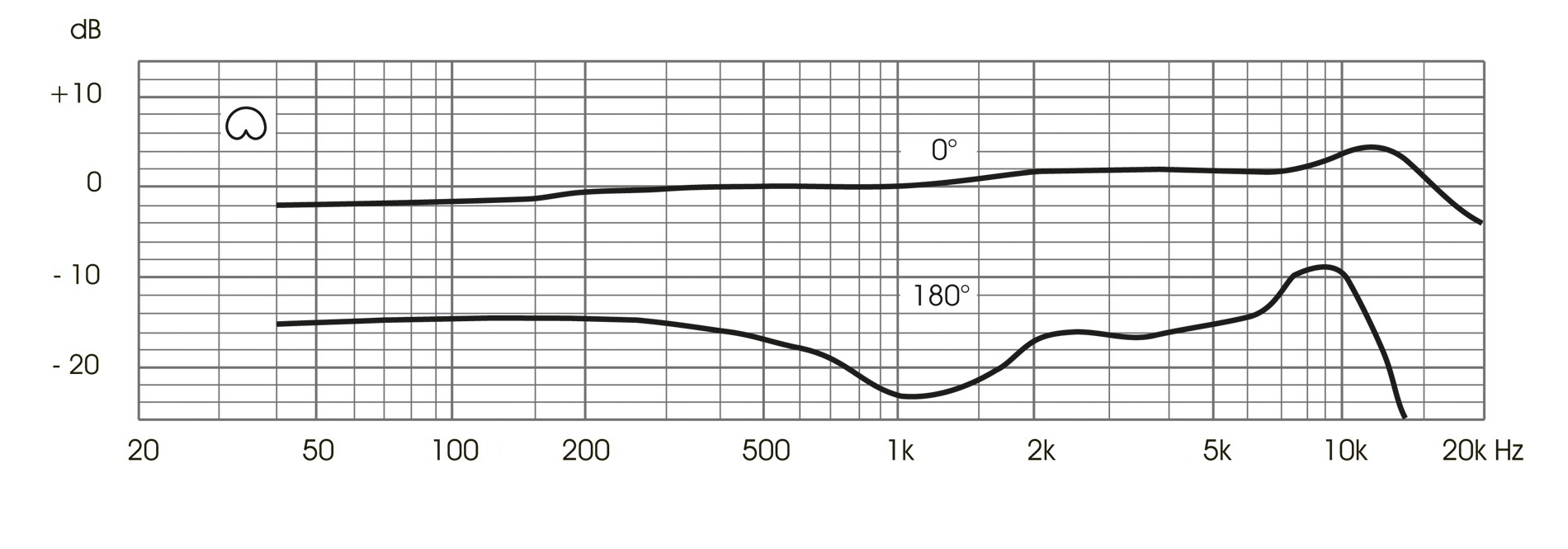

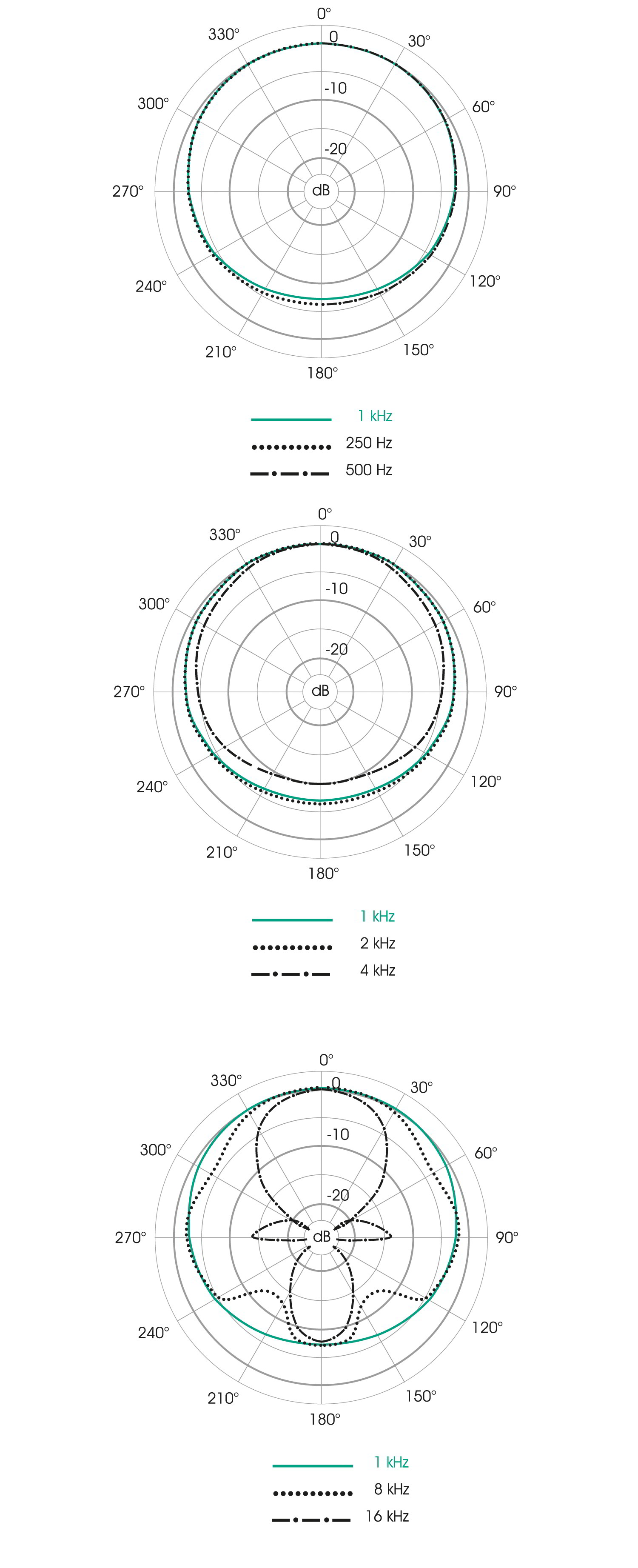

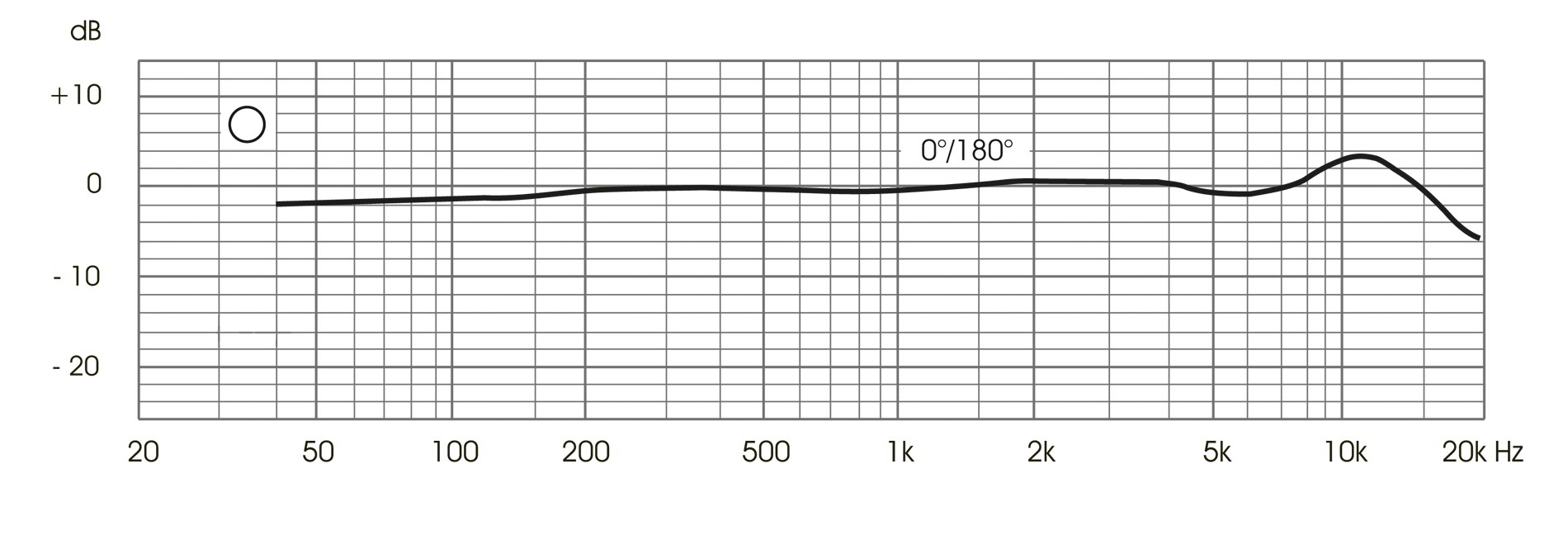

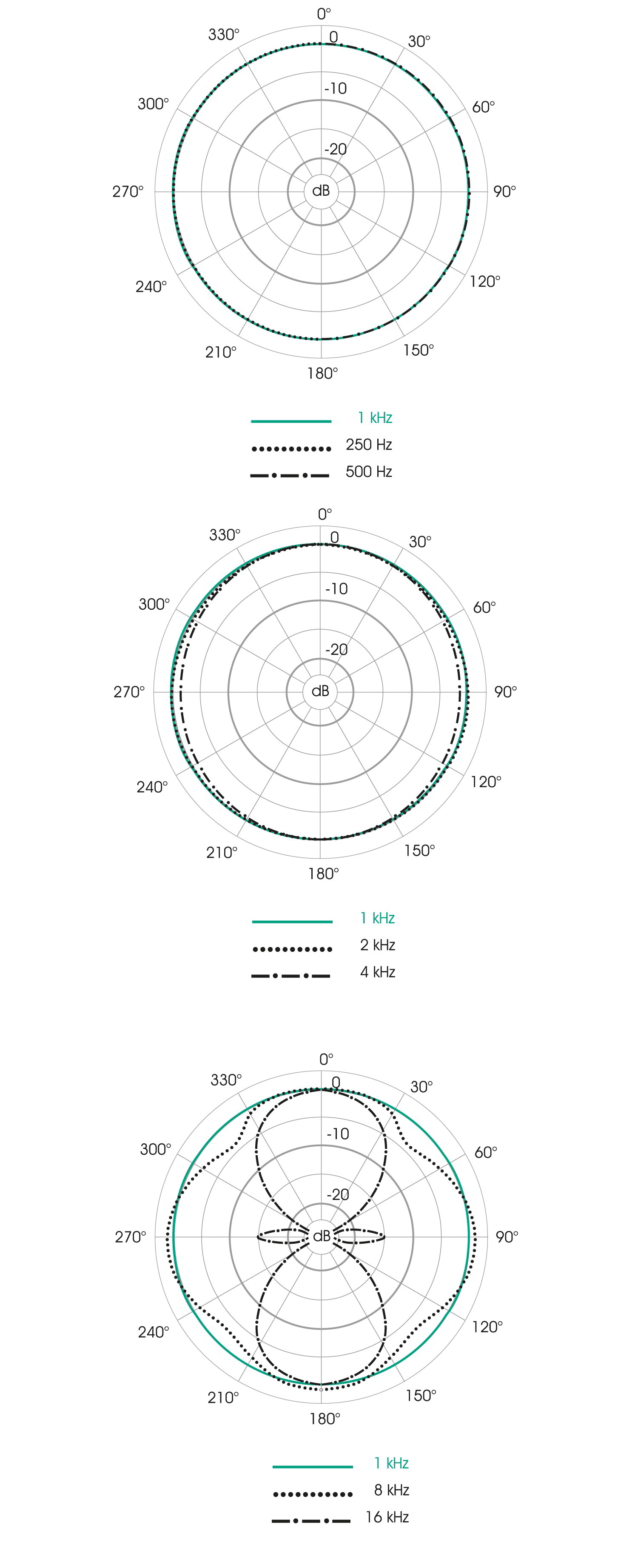

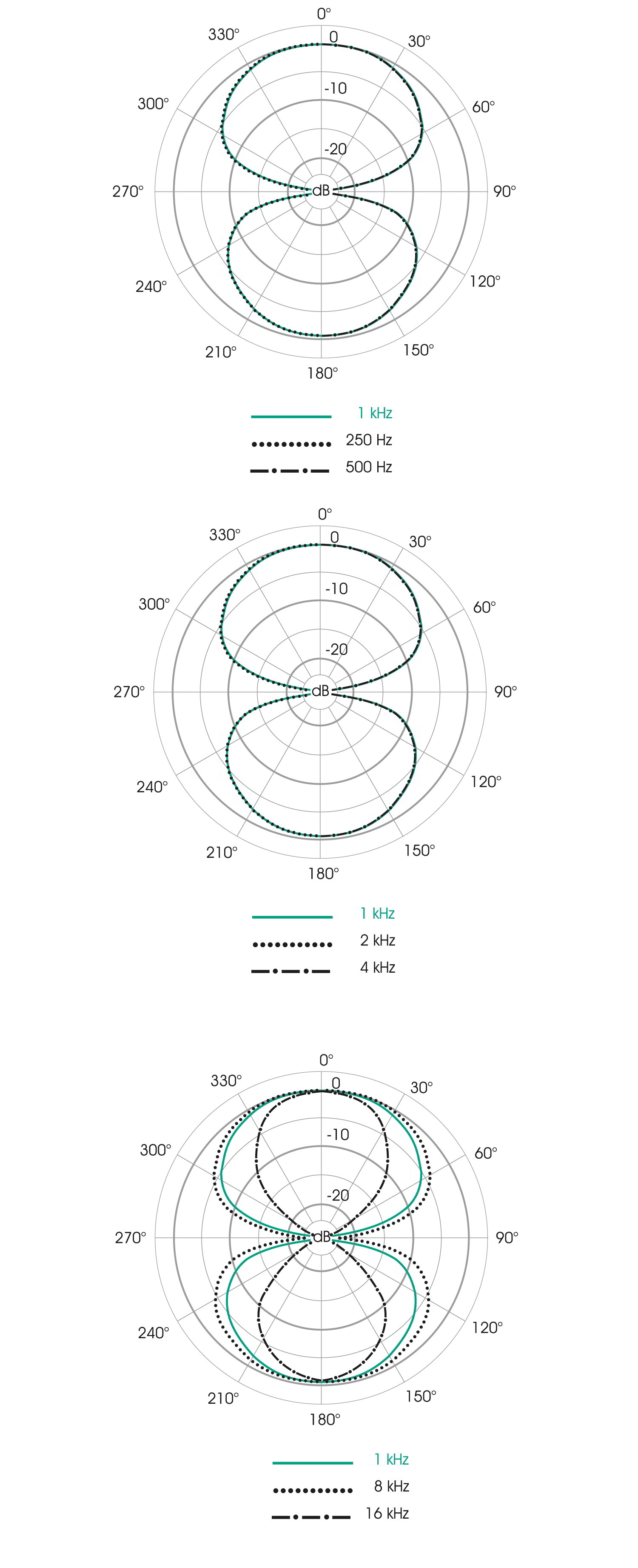

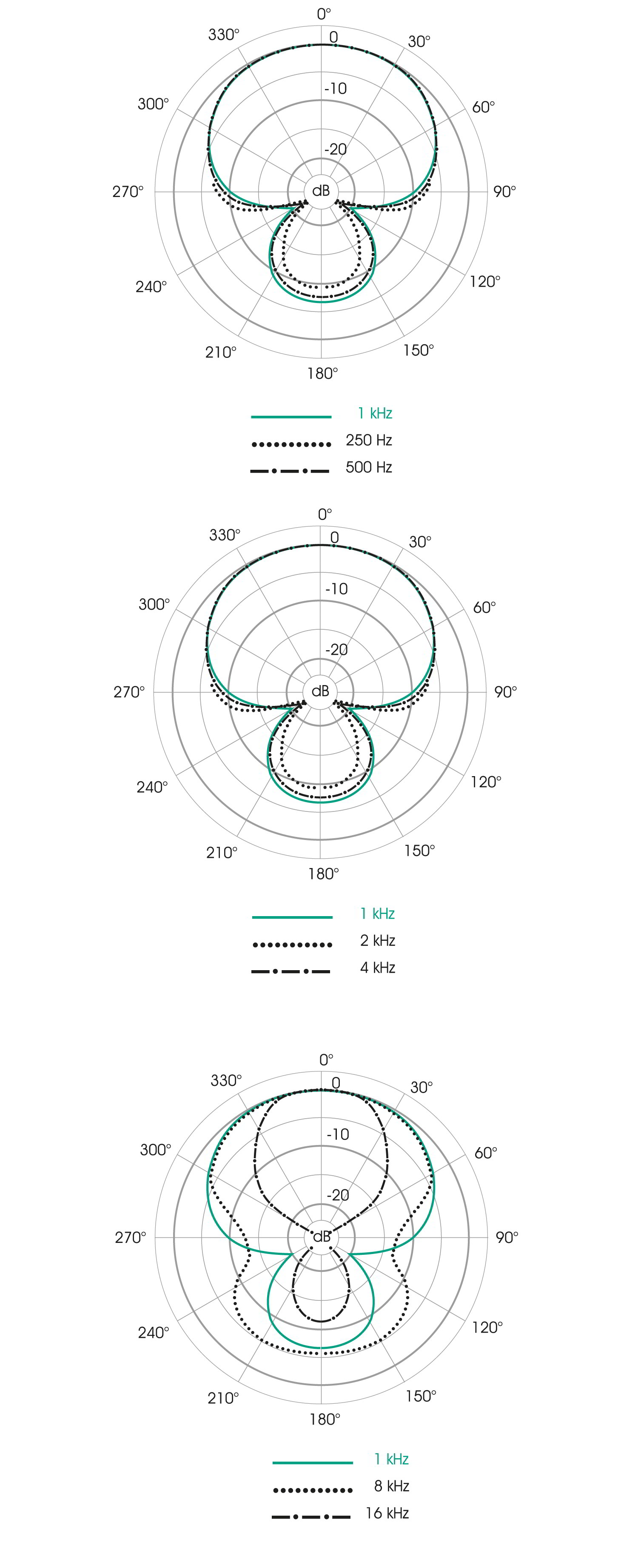

Polar pattern | omni, wide cardioid, cardioid, super cardioid, figure of 8 | |
Acoustic operating principle | pressure gradient transducer | |

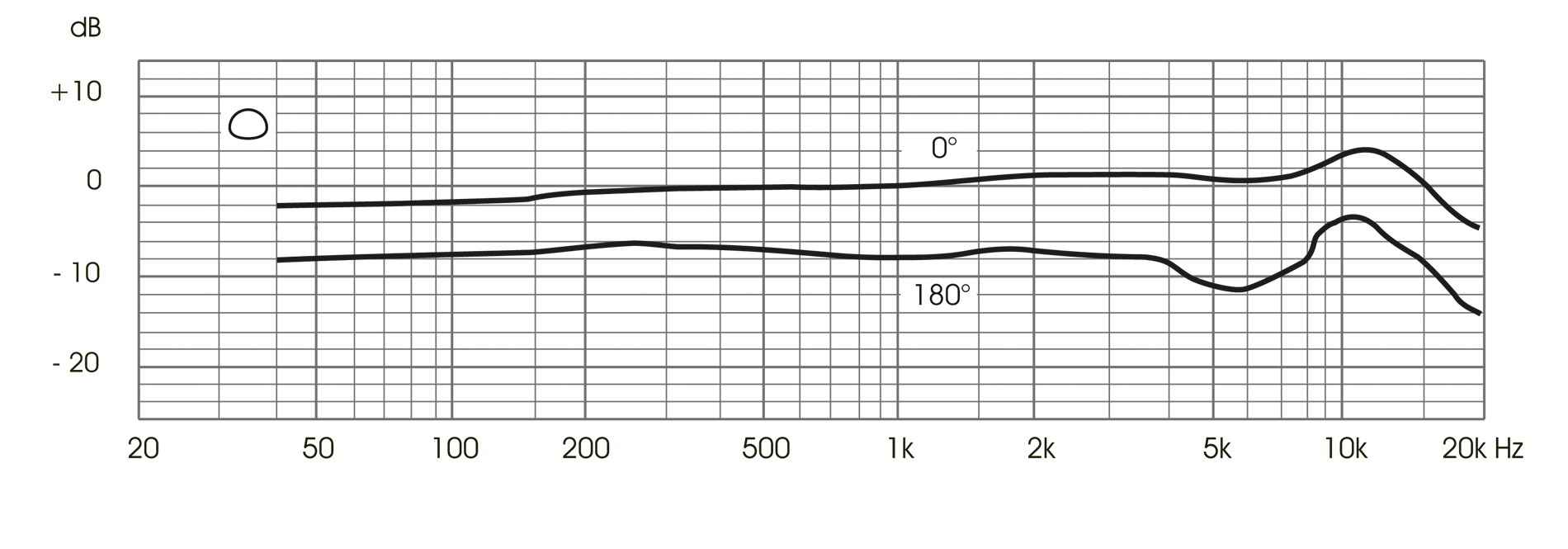

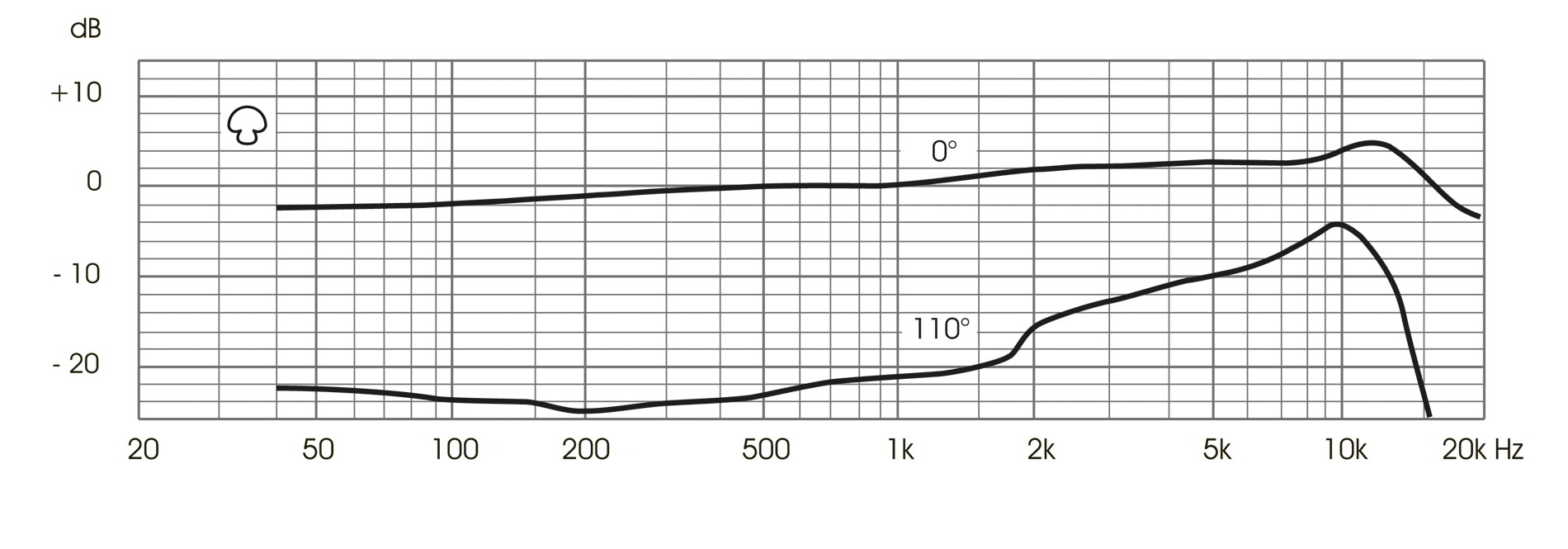

Frequency range | 20 Hz to 20.000 Hz | |
Sensitivity at 1 kHz | 20 mV/PA | |
Output impedance | 100 Ohm | |
Noise level | CCIR 468-4 | 13 dB |
DIN EN 60268-4 | 7 dB-A | |
Signal-to-noise ratio | CCIR weighted | 81 dB |
A-weighted | 87 dB | |
SPL for THD 0,5 % | 142 dB | |
Dynamic range | 135 dB | |
Current consumption | 4,5 mA | |
Output connector | XLR5M | |
Weight | 650 g | |
Length | 158 mm | |
Diameter | 65 mm | |
Surface | satin nickel, dark bronze |
