Spec

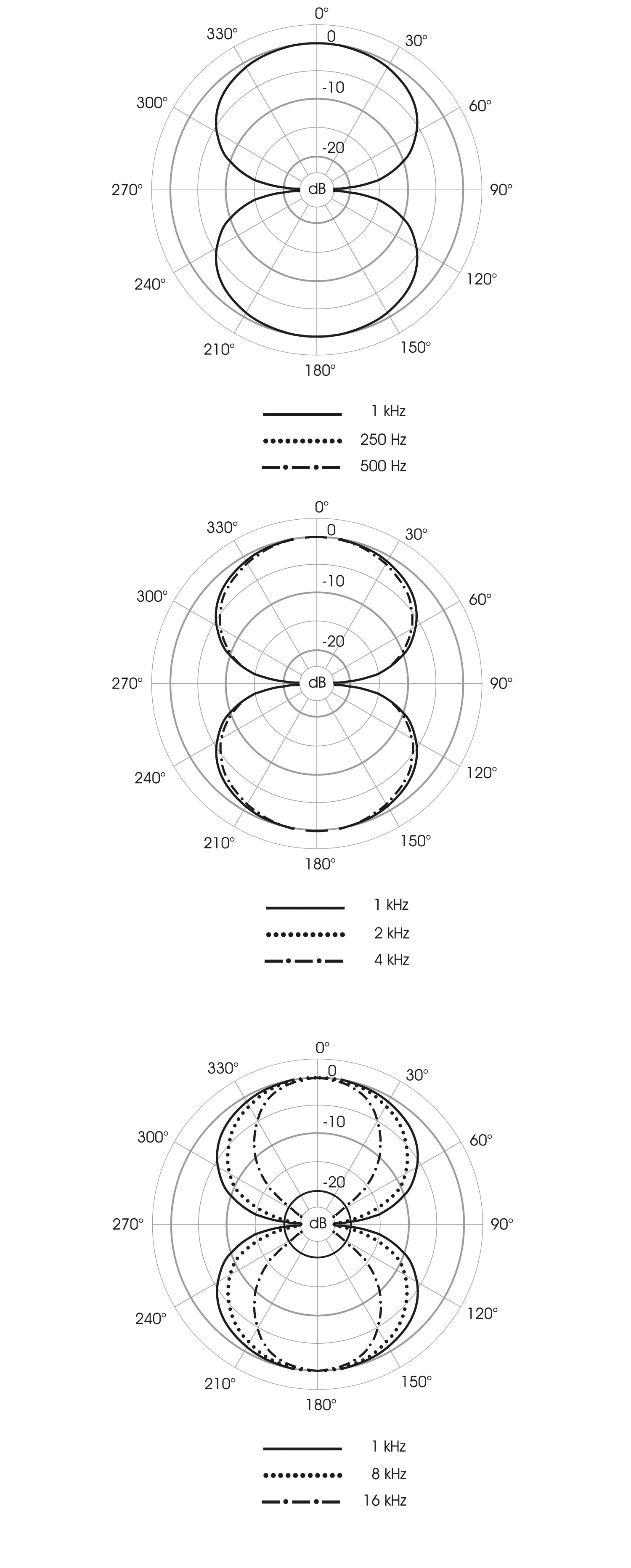

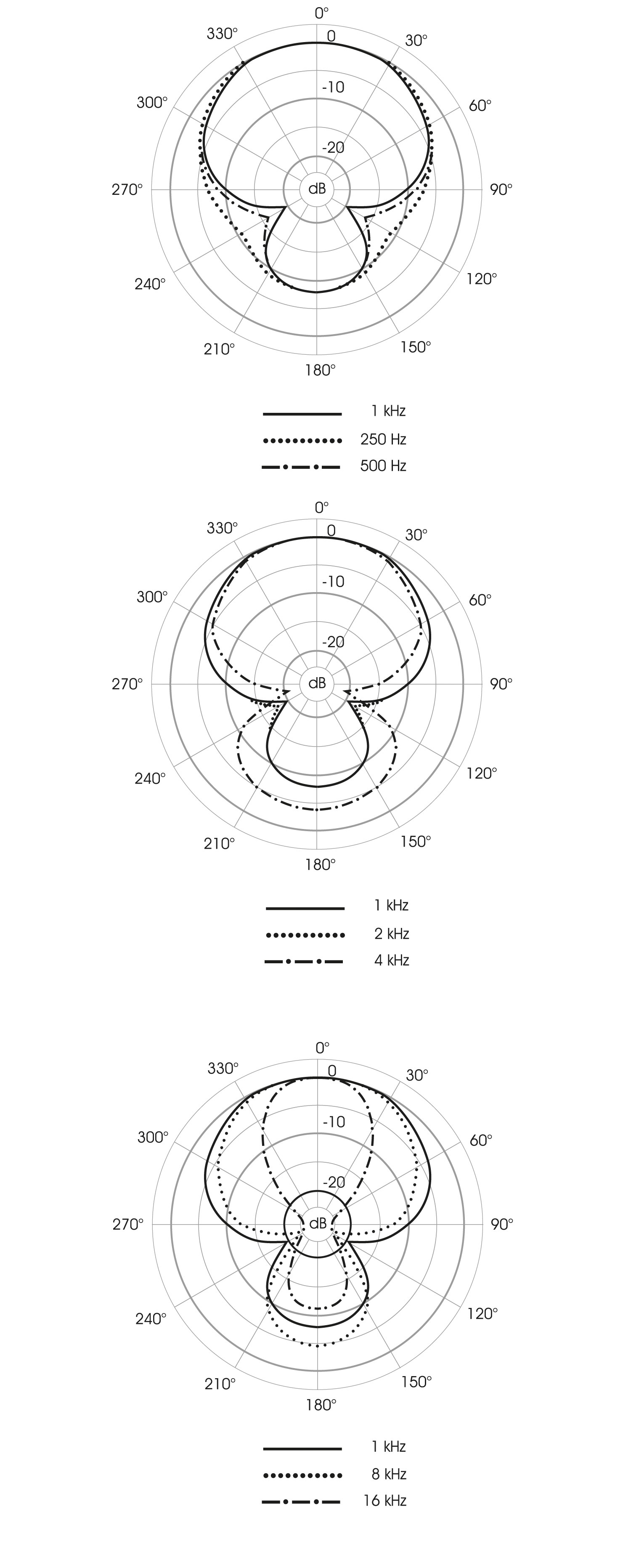

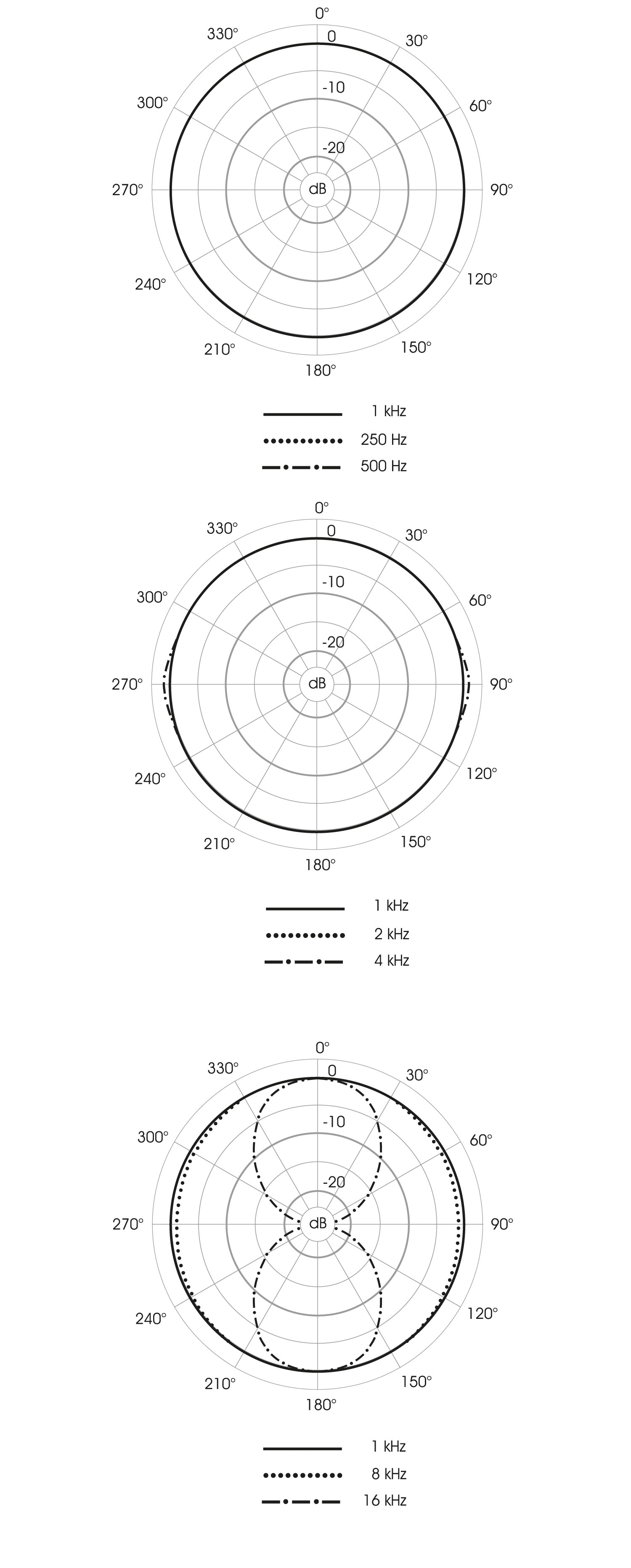

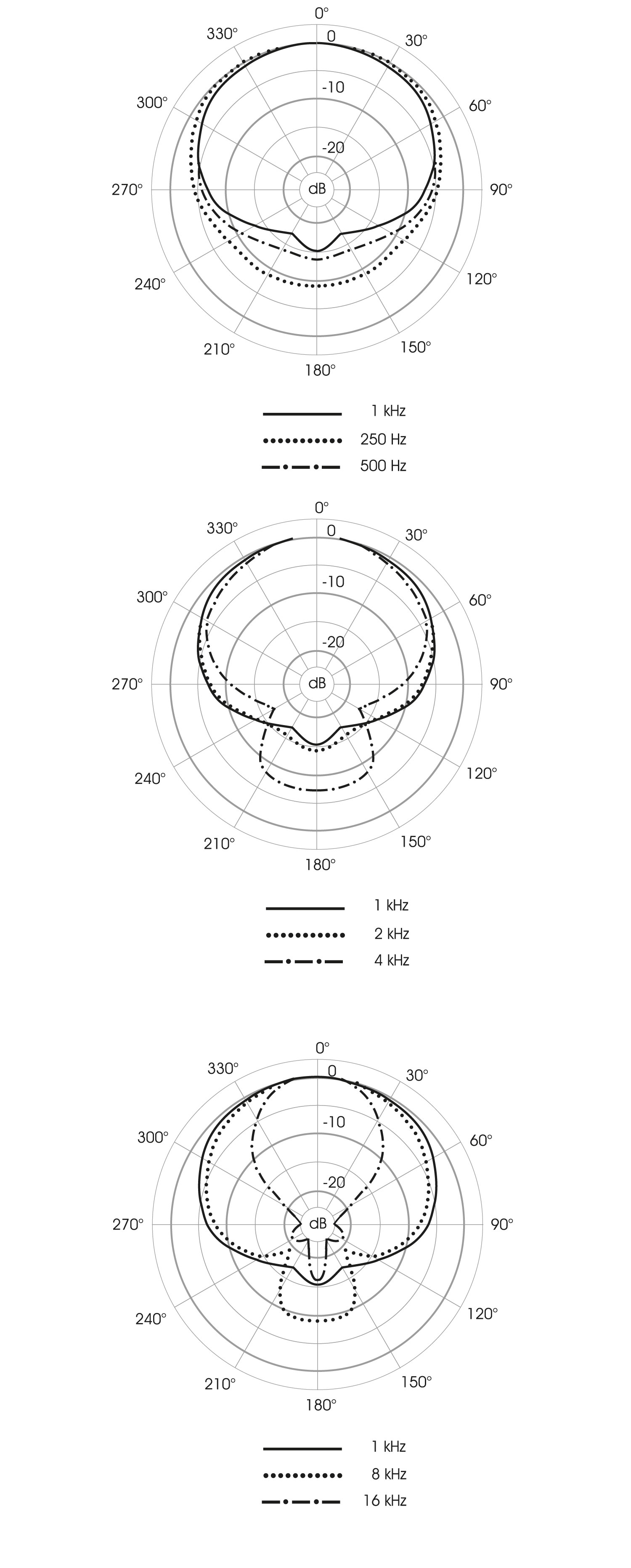

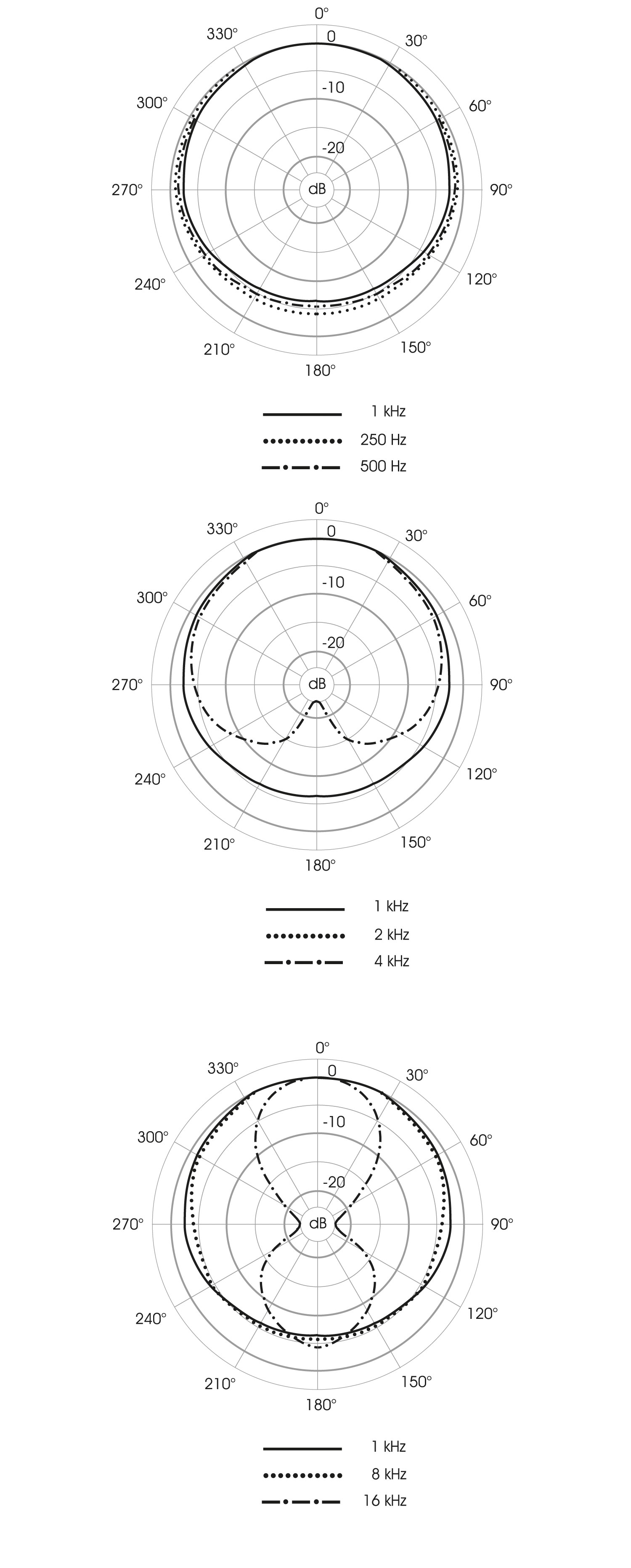

Polar pattern | omni, widecardioid, cardioid, supercardioid, figure of 8 | |
Acoustic operating principle | pressure gradient transducer | |

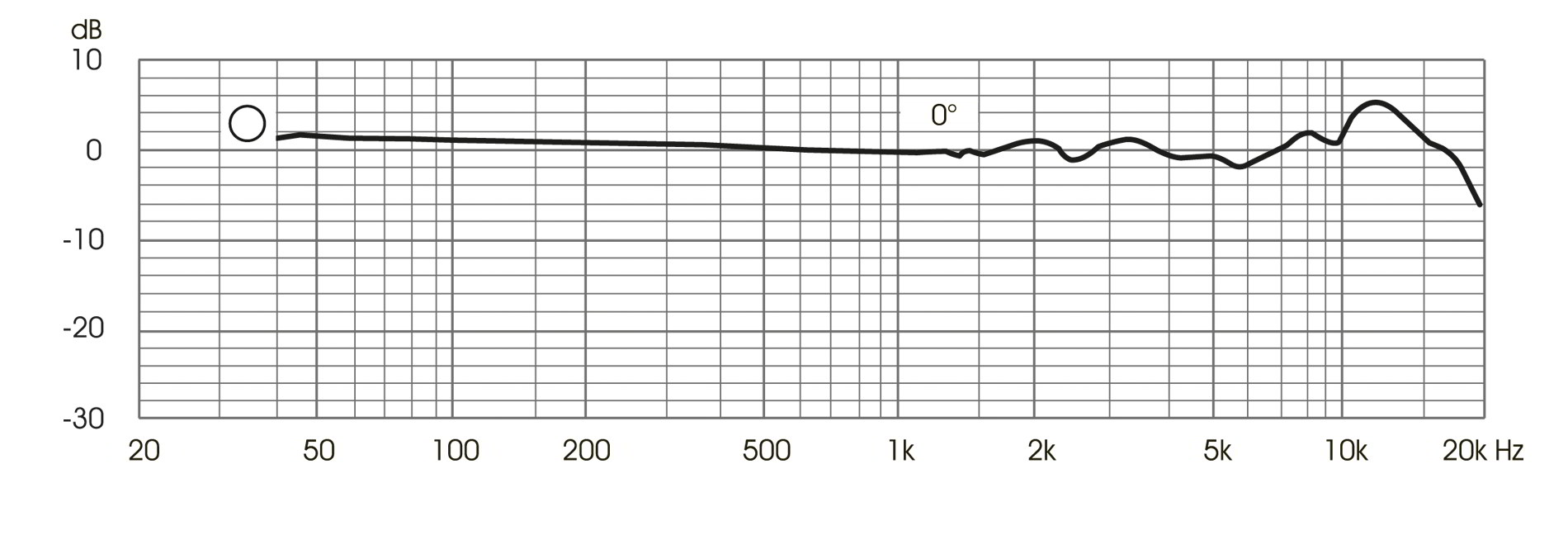

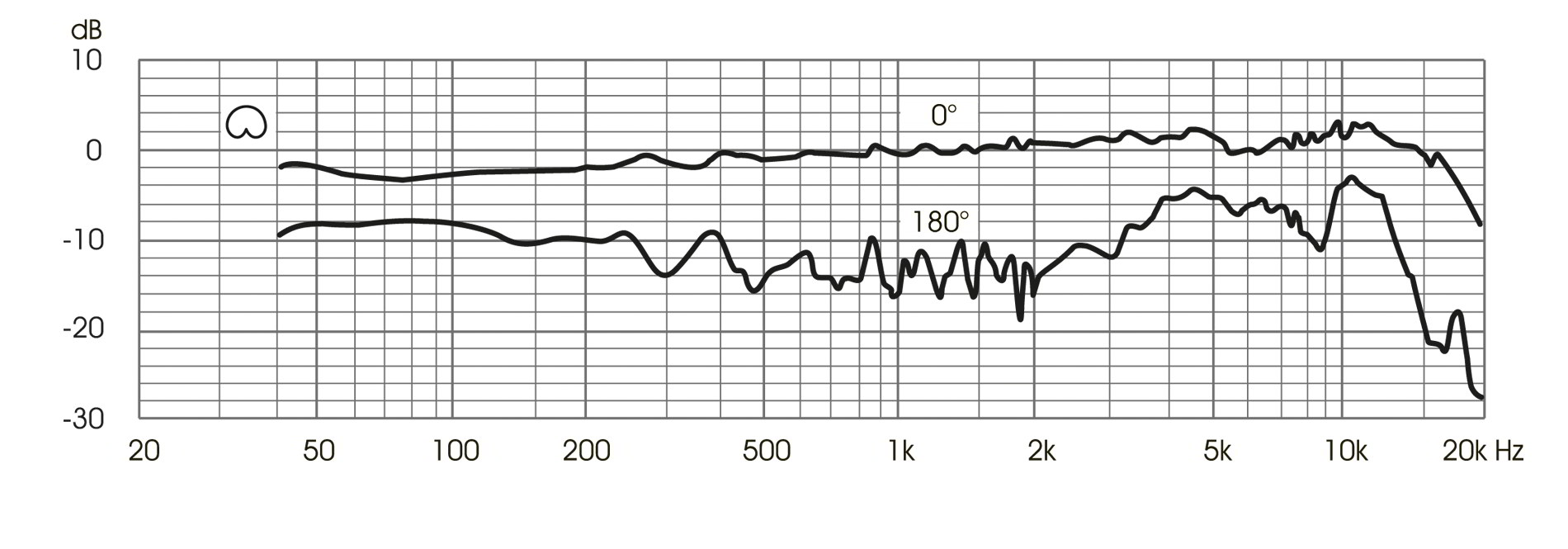

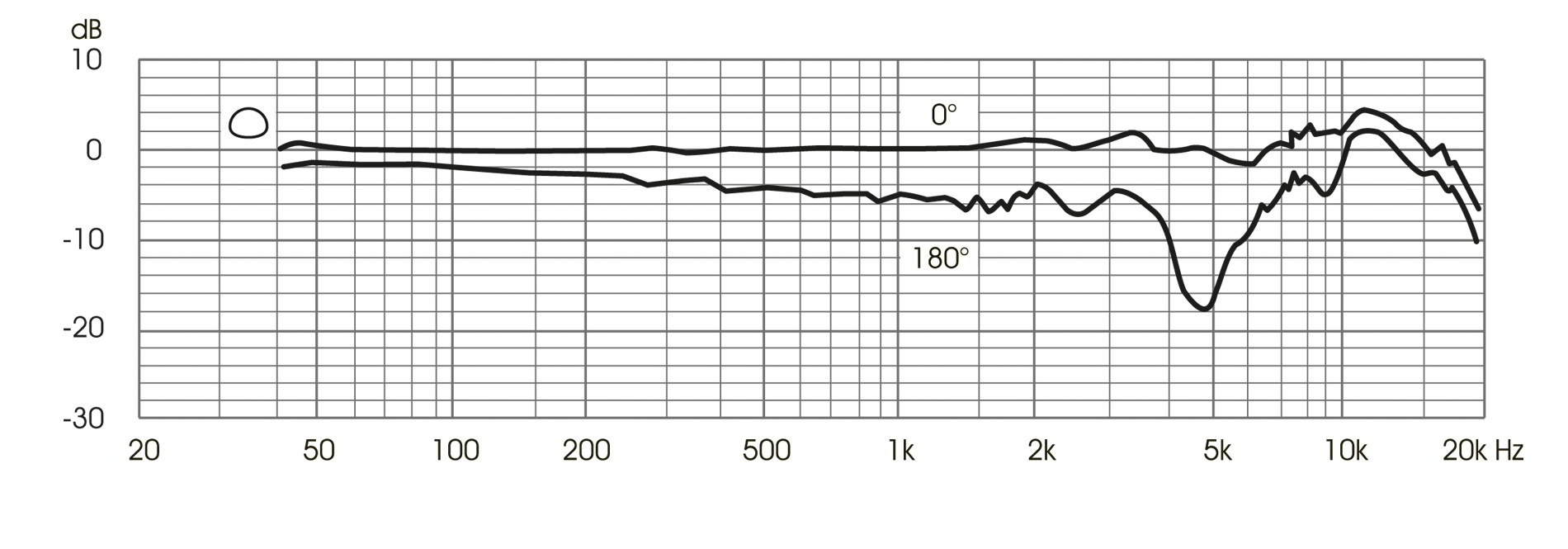

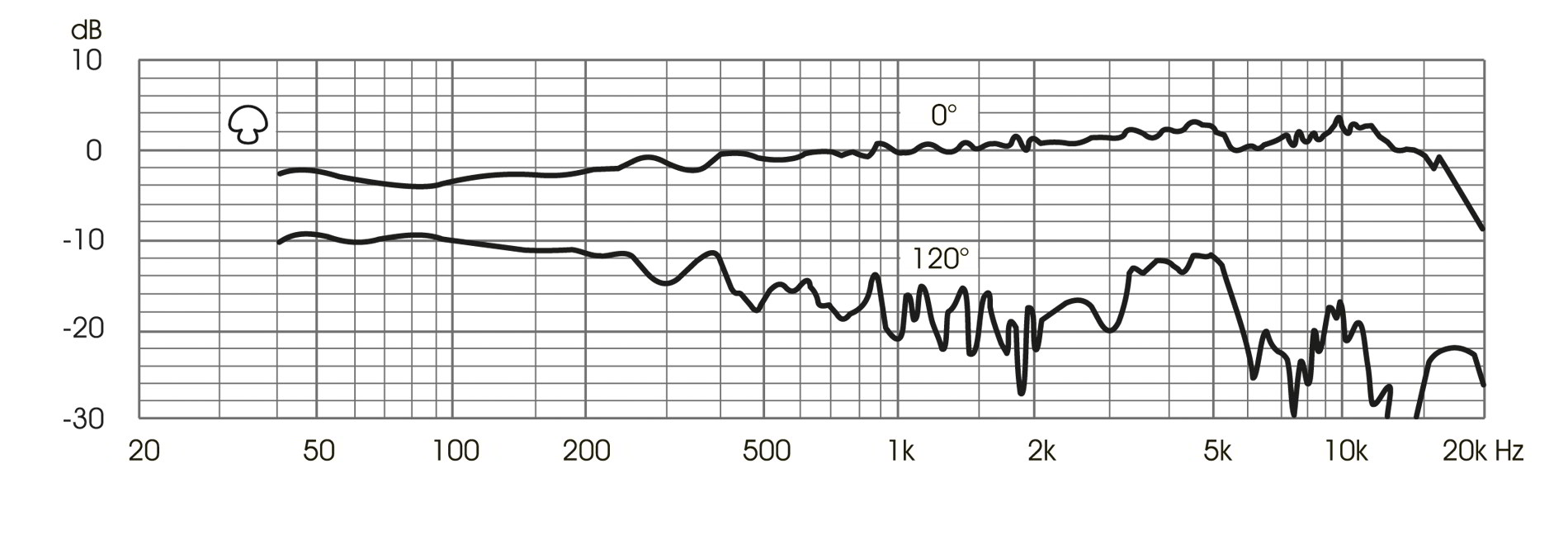

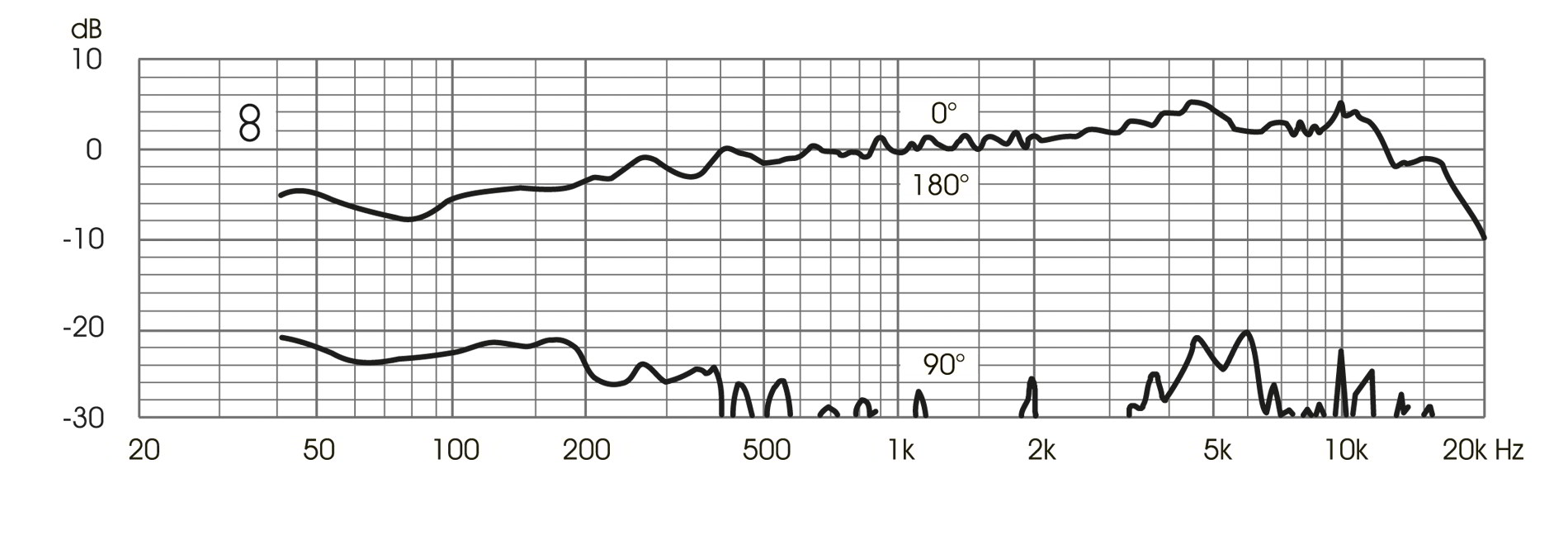

Frequency range | 20 Hz to 20.000 Hz | |
Sensitivity at 1 kHz | 8 / 13 mV/Pa ± 3 dB | |
Switch position "reduced bass roll-off" at 90 Hz | -10 dB ± 1 dB | |
Output impedance | 150 Ohm | |
Noise level | CCIR 468-4 | 26 dB |
DIN EN 60268-4 | 14 dB-A | |
Signal-to-noise ratio | CCIR weighted | 68 dB |
A-weighted | 80 dB | |
SPL for THD 0,5 % | 139 / 135 dB | |
with 10 dB preattenuation | 149 / 145 dB | |
Dynamic range | 121 dB | |
Current consumption | 3 mA | |
Output connector | XLR3M | |
Weight | 540 g | |
Length | 195 mm | |
Diameter | 70 mm | |
Surface | satin nickel, black matt |
