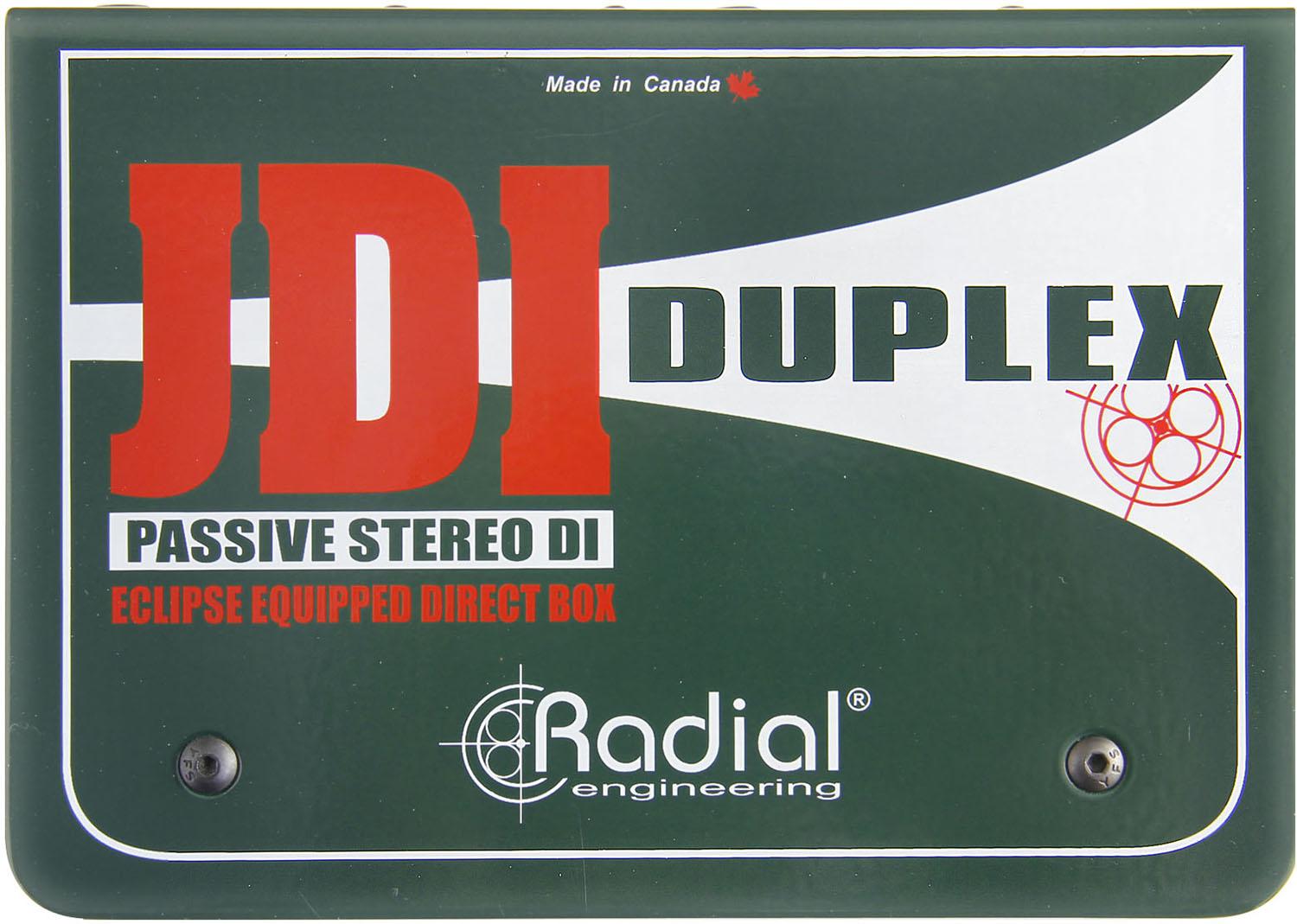

Radial Engineering JDI Duplex

Specifications

Audio circuit type:

Passive, transformer based

Number of channels:

Dual channel (stereo)

Frequency response:

20Hz ～ 20KHz (± 2dB)

Dynamic range:

135dB

Maximum input:

+20dB @ 1kHz

Total harmonic distortion:

0.001%; 1kHz/+4dBu; 600 Ohm load

Phase deviation:

-1° @ 20Hz; 0.5° @ 150Hz; 600 Ohm load

Input impedance:

140k Ohm PAD off; 10k Ohm PAD on

Input impedance - balanced FXLR:

10k Ohm

Output impedance - balanced MXLR:

600 Ohms

Features

Transformer:

JENSEN JT-DB-EPC

Shield:

Dual Faraday, MuMETAL® can

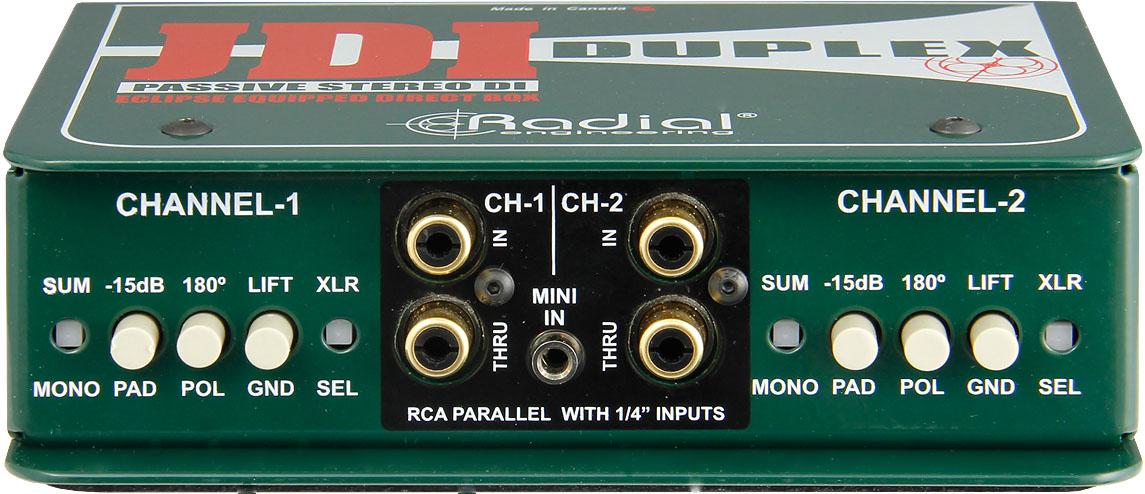

Input pad:

-15dB (1/4" and RCA inputs only)

Sub mono:

Resistive summing mixer

180° polarity reverse:

Toggles pins 2 and 3 at the XLR outputs

Ground lift:

Disconnects pin-1 at XLR output

XLR input:

+4dB balanced female XLR

XLR configuration:

AES standard (pin-2 hot)

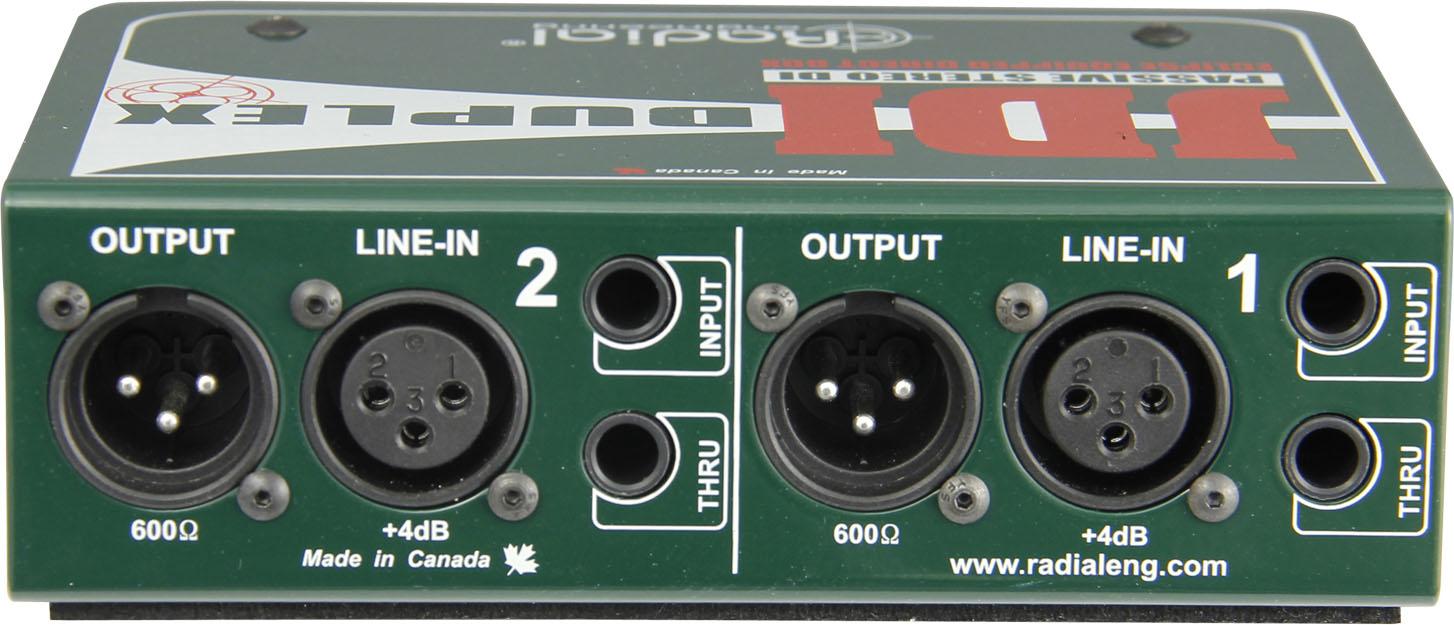

Connectors:

1/4", RCA, 3.5mm TRS in, XLR-F in, XLR-M out

General

Construction:

14 gauge steel chassis & outer shell

Finish:

Durable powder coat

Size (W x H x D):

160mm x 48 x 127mm (6.3" x 1.9" x 5")

Weight:

1kg (2.2lbs)

Shipping size (W x H x D):

210 x 159 x 83mm (8.25" x 6.25" x 3.25")

Shipping weight:

1.43 kg (3.15 lbs)

Power:

Passive, no power required

Conditions:

For use in dry locations only between 5°C and 40°C
