特徴

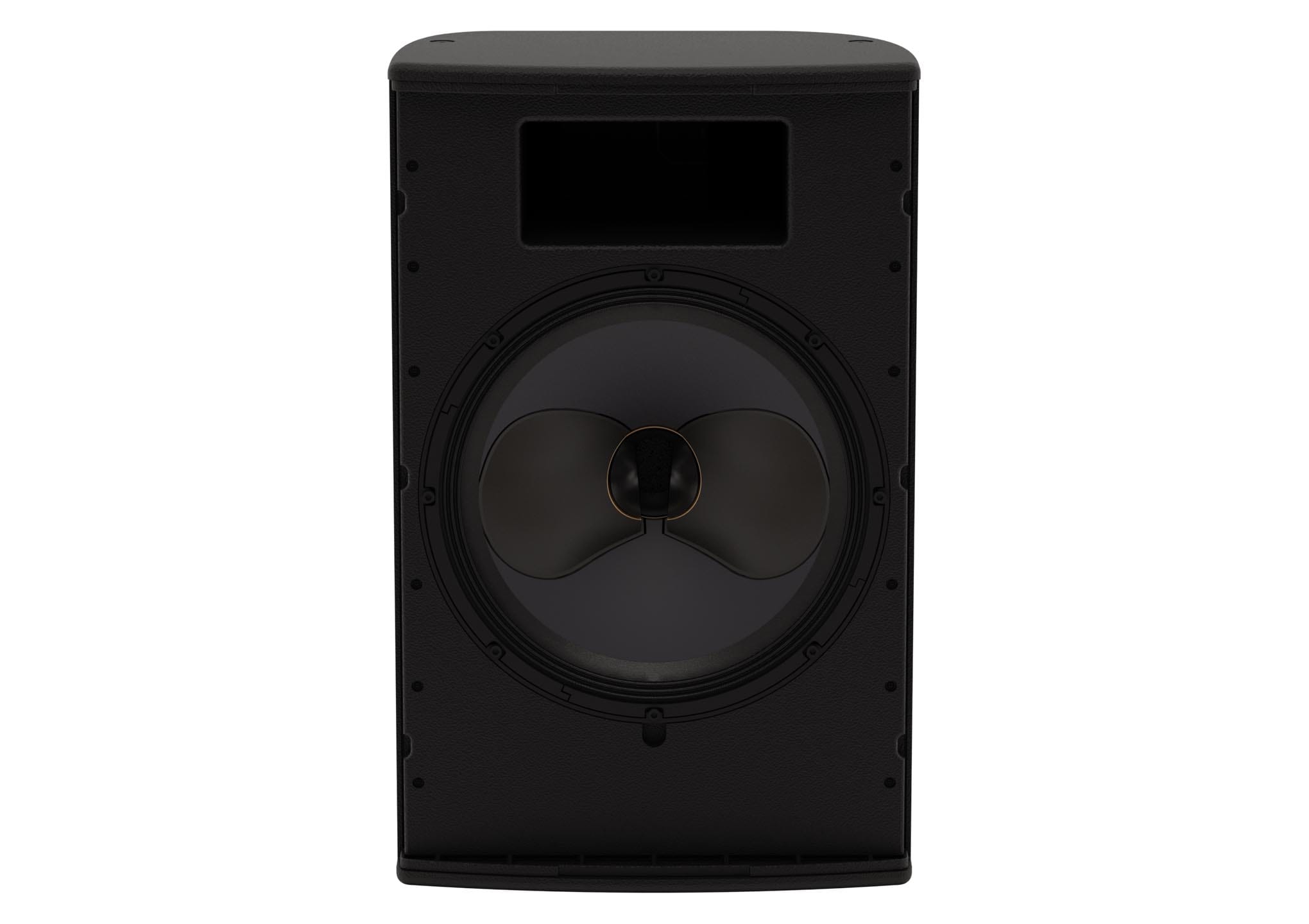

- 超小型CDD™パッシブ2WAYシステム
- 同軸非対称拡散テクノロジー
- エレガントなABS樹脂エンクロージャー
- 直接雨などにさらされることのない環境下での屋外使用可
- -20°C to +70°Cの温度環境下で使用可能
- IP54に合致する環境テスト済
- 回転可能な同軸ドライバーユニット
- 縦向き、横向きに設置可能な金具をご用意
- はめ込み式耐水、耐塵グリル
- ノミナルインピーダンス8Ω
- 目立ちにくい耐水取り付け金具
Spec
- TYPE
- High-output, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 55Hz-18kHz ± 3dB
- -10dB @ 45Hz
- DRIVERS
- LF: 15" (380mm)/3" (75mm) voice coil, long excursion, shared ferrite motor system with HF
- HF: 1.4" (36mm) exit/3" (75mm) voice coil, titanium dome compression driver
- RATED POWER (2)
- 400W AES, 1600W peak
- RECOMMENDED AMPLIFIER
- MA3.0, MA5.2K
- SENSITIVITY (8)
- 100dB
- MAXIMUM SPL (9)
- 126dB continuous, 132dB peak
- NOMINAL IMPEDANCE
- 8 ohms
- DISPERSION (-6dB)
- 100°-60° horizontal, 60° vertical (user-rotatable)
- CROSSOVER
- 1.6kHz passive
- ENCLOSURE
- 68 litre, composite material
- FINISH
- Black or white as standard
- PROTECTIVE GRILLE
- Zinc plated mild steel with powder coated finish and weatherised backing
- ENVIRONMENTAL
- Rated at IP54
- CONNECTORS
- Low profile 20A push-lock, weatherproof input panel cover with dual cable glands
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link +
- FITTINGS
- 10 x M8 fly points
- DIMENSIONS
- (W) 429mm x (H) 691mm x (D) 413mm
- (W) 16.9ins x (H) 27.2ins x (D) 16.3ins
- WEIGHT
- 28.3kg (62.4lbs)
- ACCESSORIES
- CDDYA15B yoke assembly black
- CDDYA15W yoke assembly white
