Spec
- Free field frequency response ±6 dB
- 17 … 600 Hz
- Free field frequency response ±3 dB
- 18 … 300 Hz
- Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu)
- <20 dB(A) SPL
- Sine wave output with a THD < 0.5 % at 1 m in half space
- 95 dB SPL (>40 Hz)
- Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz)
- 116.7 dB SPL
- Reproduction accuracy between 50 Hz and 100 Hz: 100%, 80%, 50% of subwoofers produced
- ±1.20; ±0.54; ±0.28 dB
- Crosstalk (1 kHz), level matching
- -95 dB; ±0.1dB
- LFE Gain
- 0 / +10 dB

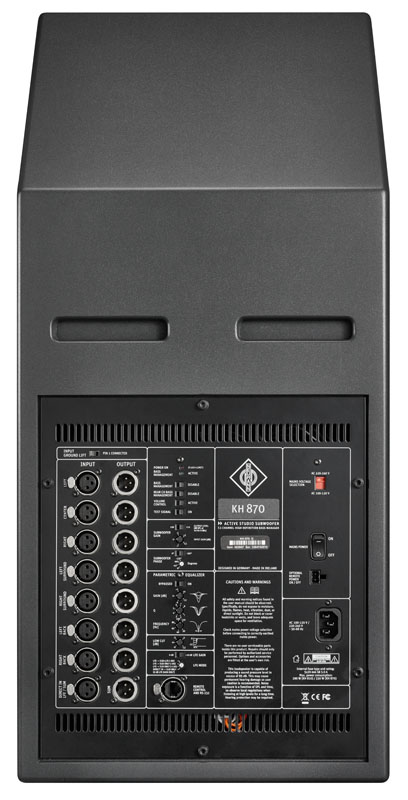

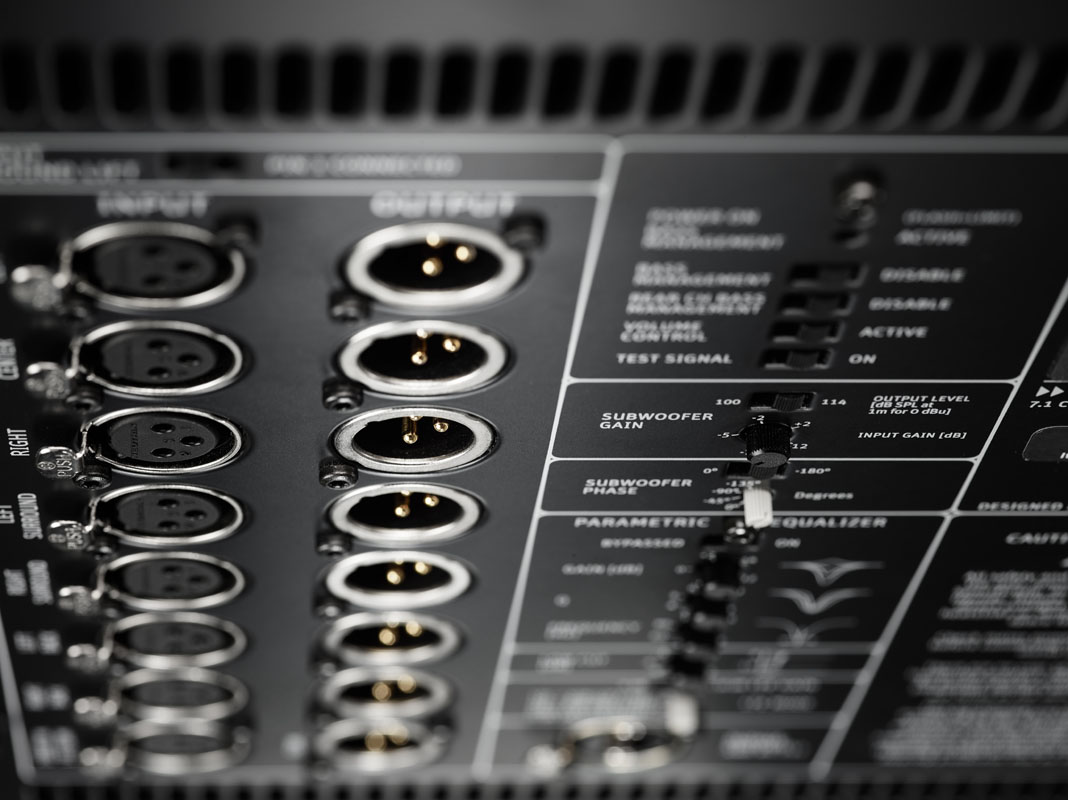

- Analog output(s)
- 8 x XLR; analog electronically balanced
- Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range)
- 118 dB SPL
- Equalization: Low cut
- 30 Hz; 0 … -12 dB
- Equalization: Parametric EQ: Gain
- +4 ... -12 dB
- Equalization: Parametric EQ: Frequency
- Bypass; 20 ... 120 Hz
- Equalization: Parametric EQ: Q
- 1 ... 8
- Phase
- 0; 45; 90; 135 and 0/180 deg
- Display: Bass Management on
- Green LED
- Cabinet weight when electronics remote located
- 45.5 kg (100 lbs 5 oz)
- Bass Extension (Hz, -6 dB)
- 17
- Maximum output level (dB SPL)
- 110.7
- Max. Listening Distance up to (m)
- 11
- Analog input(s)
- 8 x XLR: analog electronically balanced
- Analog input impedance
- >13k Ohms
- Max. input level
- +19 dBu
- Common mode rejection ratio (CMRR)
- > 56 dB @ 15 kHz
- Volume control
- NRC 1 hardware remote or RS-232
- Volume control range; resolution
- 118 dB; 0.25 dB
- Analog dynamic range; THD+N
- 119 dB(A); <0.001% (-100 dB)
- Signal routing modes
- LFE 80+re-routing; LFE 80 Hz; LFE 120 Hz; Wide
- Input gain control (sensitivity)
- +2 ... -12 dB
- Output level control (output level in 1 m based on 0 dBu input level)
- 100; 114 dB SPL
- Controller design
- Analog, active
- Crossover frequency
- 80 Hz
- Crossover slope
- 24 dB/oct; 4th order
- Protection circuitry
- Peak and thermo limiters
- Infrasonic filter: frequency; slope
- 6.5 Hz; 12 dB/oct.
- Remote control
- RJ45 connector: Via NRC1 remote control (optional): volume for all channels; bass management on/off; LFE gain 0/10 dB.Via RS-232: more parameters remote controllable
- Display: On; Normal Operation
- Red LED
- Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute
- Red LED
- Output power woofer amplifier (THD+N with limiter deactivated: 10%)
- 400 W
- Output power woofer amplifier (THD+N with limiter deactivated: 0.1%)
- 320 W
- Mains Power Supply: input voltage; frequency
- 220-240 / 100-120 V (switchable); 50/60 Hz
- Power consumption (230 V / 100 V): Idle
- 25 W
- Power consumption (230 V / 100 V): Full output
- 550 W
- Cabinet material
- Wood cabinet, aluminum electronics panel
- Cabinet surface finish; color (front / back)
- Painted; metallic anthracite (RAL 7021) / black (RAL 9005)
- Operating conditions
- +10° C to +40° C (+50° F to +104° F); <90% RH, non-condensing
- Transport/storage conditions
- -25° C to +70° C (-13° F to 158° F); <90% RH; non-condensing

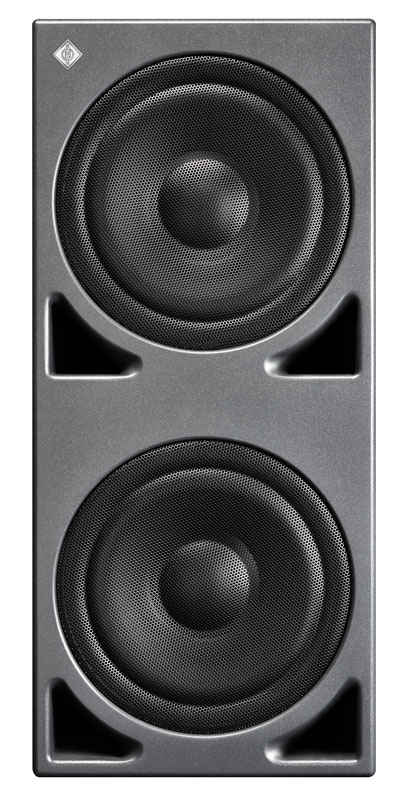

- Woofer
- 2 x 265 mm (10") with magnetic shielding and protecting black metal grille
- Mounting points
- 35 mm flange on top panel
- Product dimensions (height x width x depth)
- 735 x 330 x 645 mm (28.9" x 13" x 25.4")
- External net volume
- 156 liters
- Packed dimensions (height x width x depth), mm (inches)
- 860 x 470 x 770 mm (33 7/8" x 18 1/2" x 30 3/8")
