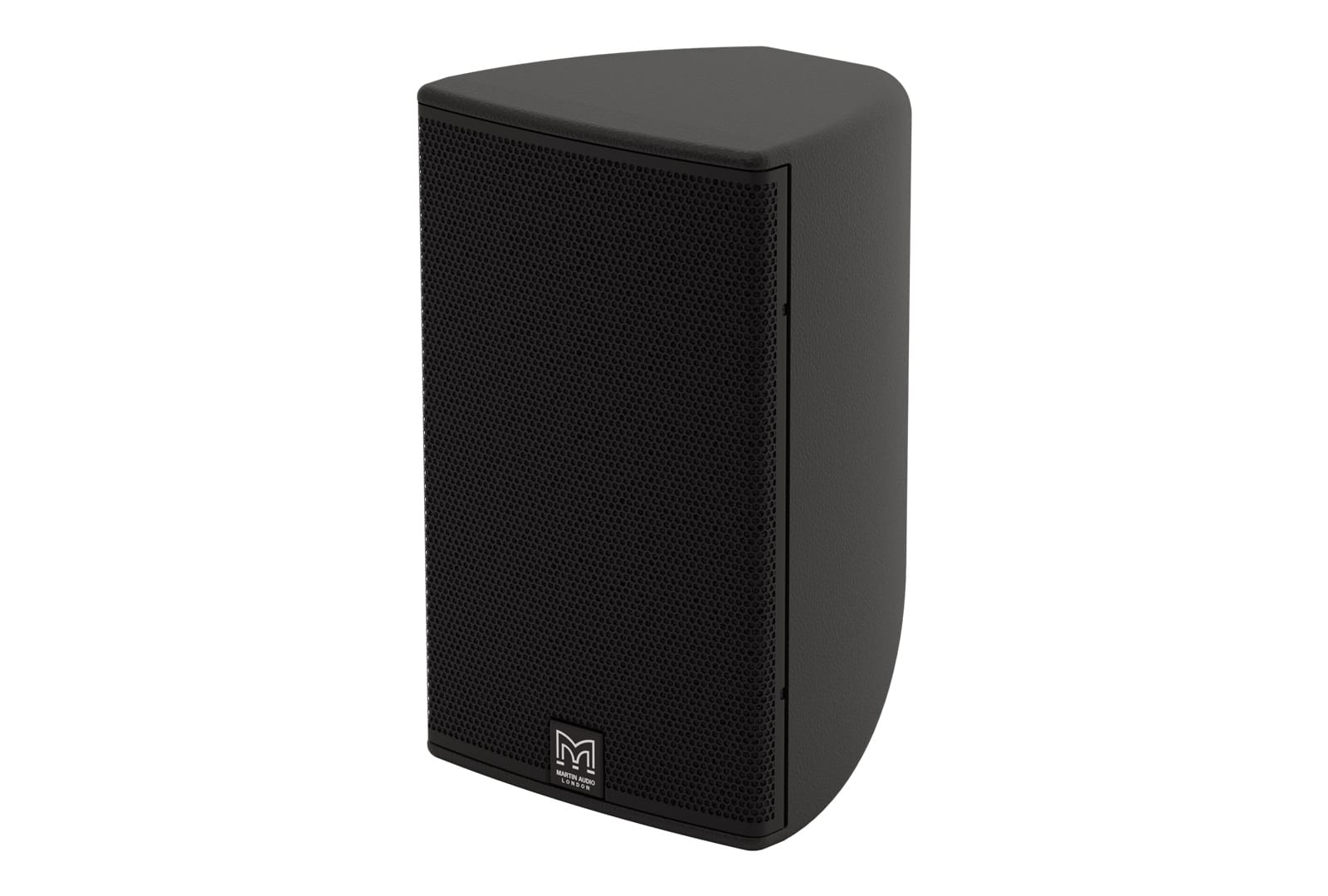

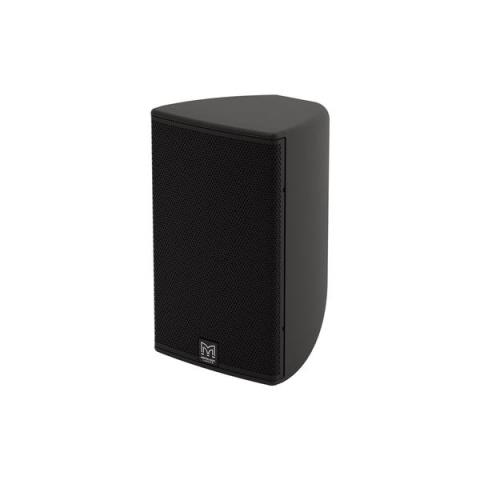

特徴
- 超小型CDD™パッシブ2WAYシステム
- 同軸非対称拡散テクノロジー
- エレガントなUPM合板エンクロージャ
- 回転可能な同軸ドライバーユニット
- 縦横に設置可能な金具オプション
- はめ込み式金属グリル構造
- ノミナルインピーダンス8Ω
- 目立ちにくい取付金具
Spec
- TYPE
- Ultra-compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 70Hz-20kHz ± 3dB, -10dB @ 55Hz
- DRIVERS
- LF: 8" (200mm)/2" (50mm) voice coil, long excursion, shared ferrite motor system with HF
- HF: 1" (25mm) exit/1.4" (38mm) voice coil, polyimide dome compression driver
- RATED POWER (2)
- 200W AES, 800W peak
- RECOMMENDED AMPLIFIER
- MA2.8Q, MA2.0
- SENSITIVITY (8)
- 94dB
- MAXIMUM SPL (9)
- 117dB continuous, 123dB peak
- NOMINAL IMPEDANCE
- 8 ohms
- DISPERSION (-6dB)
- 110°-80° horizontal, 60° vertical (user-rotatable)
- CROSSOVER
- 2.3kHz passive
- ENCLOSURE
- 14 litre, composite material
- FINISH
- Black or white textured paint
- PROTECTIVE GRILLE
- Black or white perforated steel with scrim cloth backing
- CONNECTORS
- Low profile 13A push-lock
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link +
- FITTINGS
- 6 x M6 inserts for wall/ceiling brackets
- DIMENSIONS
- (W) 256mm x (H) 410mm x (D) 252mm
- (W) 10.1ins x (H) 16.1ins x (D) 9.9ins
- WEIGHT
- 9.5kg (21lbs)
- ACCESSORIES
- CDDWB6/8B wall bracket black
- CDDWB6/8W wall bracket white
- CDDCB6/8B ceiling bracket black
- CDDCB6/8W ceiling bracket white
