製品仕様
- GAIN REDUCTION: Up to 40 dB
- DISTORTION: Less than 0.5% THD (0.25% typical) at +/-10 dBm
- RESPONSE: +/-0,1 dB 30 cycles to 15 Kcycles
- NOISE: 70 dB below +10 dBm output level
- GAIN: 40 dB +/- 1dB
- OUTPUT LEVEL: +10 dB nominal, + 16 dB maximum
- INPUT LEVEL: + 16 dB maximum
- ATTACK TIME: @ 10 microseconds
- RELEASE TIME: 0.06 seconds for 50% release; 0.5 to 5 seconds for complete release
- INPUT IMPEDANCE: 62.5, 150, 250, 600 ohms
- OUTPUT IMPEDANCE: 150, 600 ohms
- CONTROLS: Gain, Peak Reduction and Meter selector
- METER: dB gain reduction and dB output
- DIMENSIONS: 19 inch standard rackmount chassis, 3U
- POWER REQUIREMENTS: 35 watts, 120/240 volts, 50/60 cps

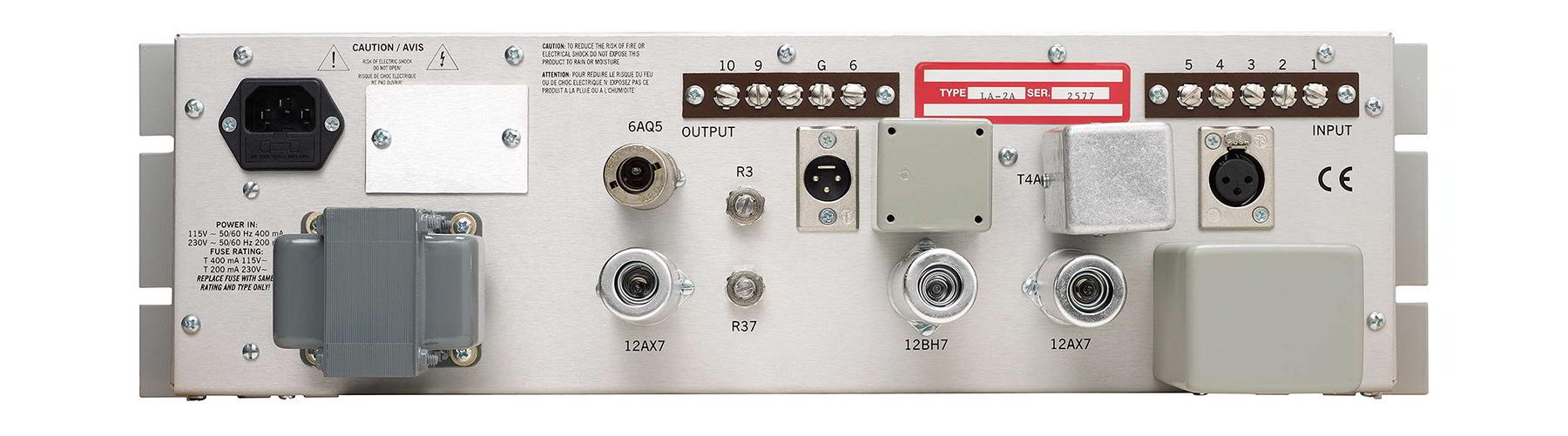

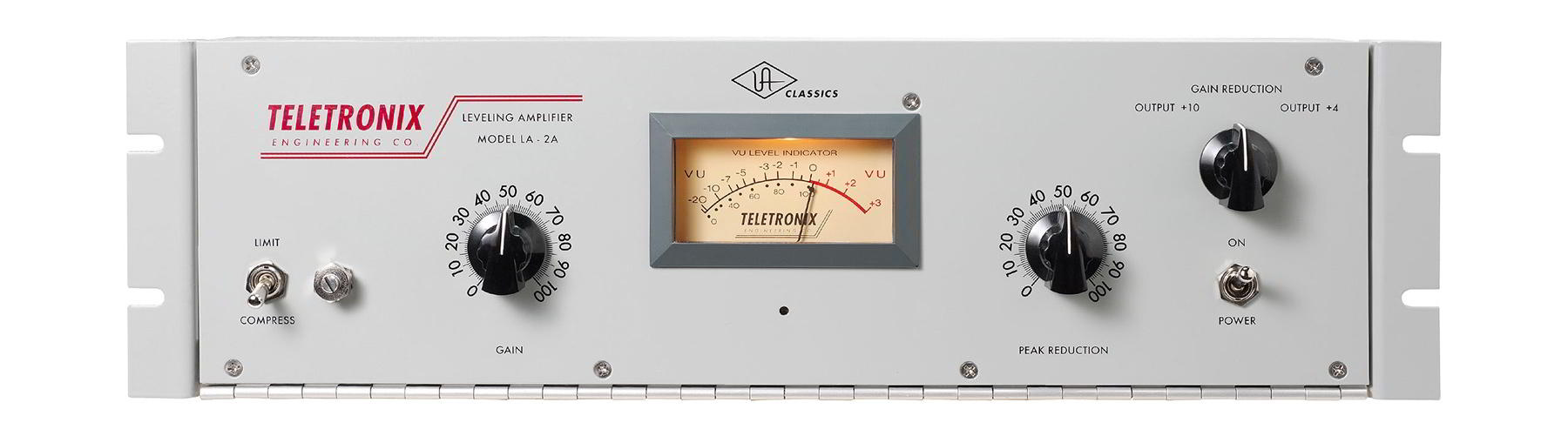

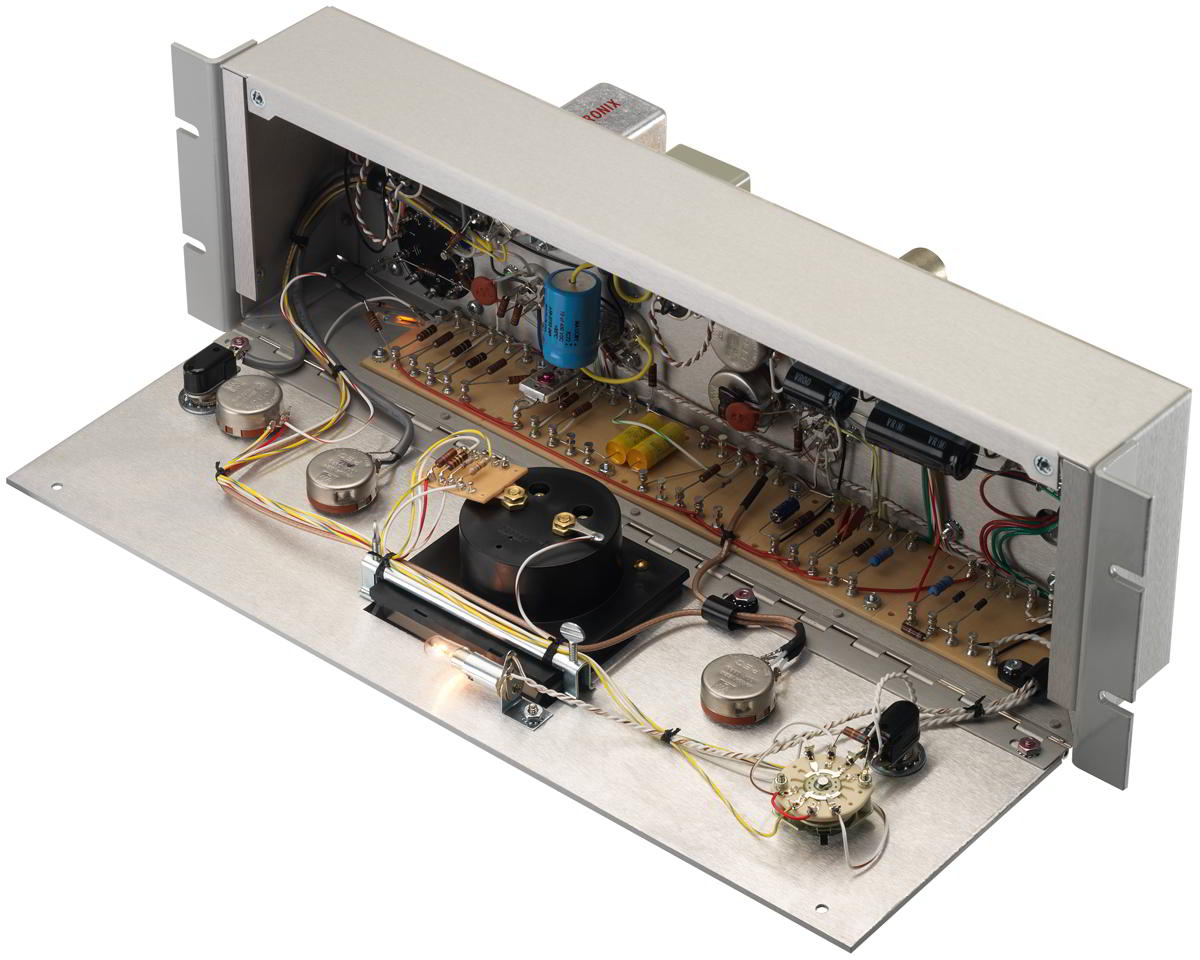

追加画像
