Spec
- Nominal impedance
- 8 Ω
- Power handling: Full-range
- Rated power RMS
- 300 W
- Program power
- 600 W
- Peak power
- 1200 W
- SPL 1 W/1 m
- 97 dB
- Max. SPL at 1 m (calculated with peak power)
- 128 dB
- Frequency range (-10 dB)
- 90-20000 Hz
- Nominal coverage angle
- 90° x 40°
- X-Over frequency
- 2200 Hz
- Voice coil tracking protection
- Halogen

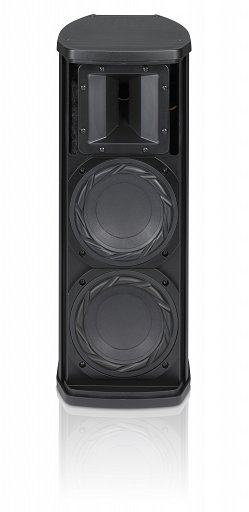

- Component HIGH
- Electro-Voice DH-3
- Component LOW
- 2 x DND 6130-16

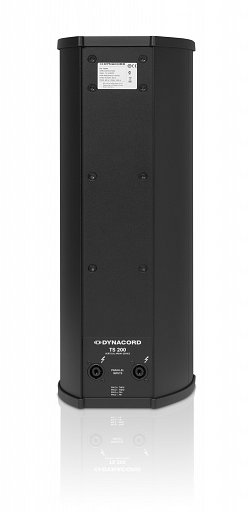

- Connector
- Model
- 2 x NEUTRIK speakON NL4
- Contacts full-range
- 1+, 1-
- Contacts wired through
- 1+, 1-
- Product dimensions (Width x Height x Depth)
- 199 x 513.5 x 239.5 mm
- Net weight
- 10 kg
- Enclosure material
- Aluminum
- Grille
- Steel
- Suspension
- 8 x M6
