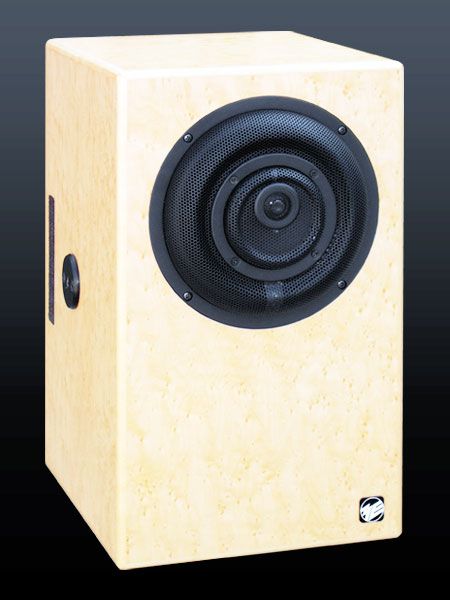

Color Option
オーダー時にオプションで塗装色を選べます。
標準色はRLシリーズ Ash-Blackです。※その他の仕上げはオプションになり、別料金となります。
- 材質はMDF合板です。
- 標準色以外は貴重な木材も含まれており、納期が大幅に伸びる場合があります。あらかじめご了承ください。
- 木材の色は、撮影・印刷の関係で実際の色と異なって見えることがあります。
Spec
- General
- active three-way monitor for use in audio-, video production studios and brodcast vans
- Maximum SPL from 100 Hz ... 6 kHz
- 110 ... 113 dB / r = 1 m (3.3 ft)
- Bandwidth
- 35 Hz ... 20 kHz ± 3 dB
- Calibration:Acoustic output level / PE = - 14 dBu
- > 89 dB / r = 1 m (3.3 ft)
- Directivity index from 100 Hz ... 10 kHz
- increasing from 2 to 10 dB
- Inherent noise sound level
- ≤ 7 dB (A) / r = 1 m (3.3 ft)
- Total harmonic distortion measured at 96 dB / r = 1 m (3.3 ft) from 100 Hz ... 10 kHz
- ≤ - 40 dB
- Nominal Input level
- + 6 dBu adjustable
- Input impedance
- ≥ 10 kOhm RC symmetrically
- Electronic Crossover frequencies
- 800 Hz and 3.8 kHz
- Nominal output powerMOSFET-amplifier
- LF:180 Watt / 4 Ohm
- MF:100 Watt / 4 Ohm
- HF:100 Watt / 4 Ohm
- Input Connector
- XLR 3F
- Loudspeaker systems
- Woofer:200 mm (8") cone
- Mid-range unit100 mm (4") cone
- Tweeter 19 mm (3/4") dome
- Operation and Clipping indicator
- LED on front side
- Power consumption
- max. 300 Watt at full load
- Mains Connection
- Euro cold-unit connector
- Dimensions (H x W x D)
- RL 944K: 481 x 285 x 330 mm (18.9 x 11.2 x 13.0 in)
- RL 944K1:398 x 254 x 245 mm (15.6 x 10.0 x9.6 in)
- stand-alone amplifier: 475 x 279 x 120 mm (18.7 x 10.9 x 4.7 in)
- Weight
- RL 944K:24 kg (52.9 lbs)
- RL 944K1:11 kg (24.2 lbs)
- stand-alone amplifier:11 kg (24.2 lbs)
- Magnetic shield
- optional
- Design of the Cabinet
- MDF-wood in ash black veneered, different veneers or colors optional
