主な特徴

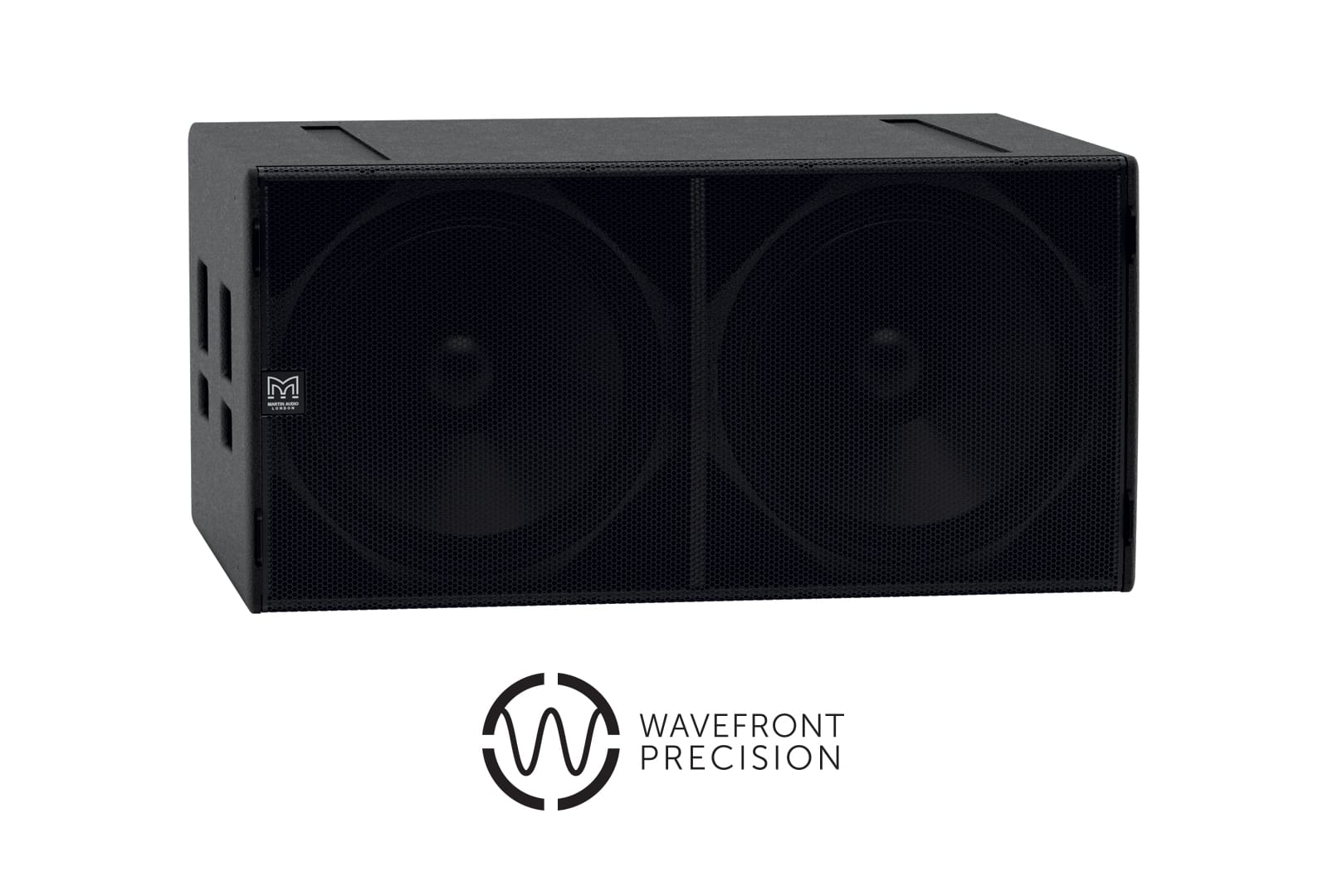

- デュアル・ダイレクトラジエーター型サブウーハー
- デュアル18インチ高変位量ドライバーフェライトマグネット防水型
- 高出力
- ツアーグレード積層合板エンクロージャー
- フライングポイントつき
Spec
- TYPE
- Dual-driver, direct radiating subwoofer
- FREQUENCY RESPONSE (1)
- 35Hz - 150Hz ±3dB,-10dB @ 30Hz
- DRIVER
- 2 x 18" (460mm)/4" (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
- RATED POWER(2)
- 2000W AES, 8000W peak
- SENSITIVITY (10)
- 105dB
- MAXIMUM SPL (9)
- 144dB
- NOMINAL IMPEDANCE
- 2 x 8Ω
- DISPERSION(-6dB)
- Omnidirectional/or Cardioid (paired)
- CROSSOVER
- 1.2kHz passive
- ENCLOSURE
- Multi-laminate birch/poplar ply
- FINISH
- Black textured paint
- PROTECTIVE GRILLE
- Black perforated steel
- CONNECTORS
- 2 x NL4 type
- INPUT CONNECTIONS(INPUT)
- LF: +1, -1 Link through: +2, -2
- INPUT CONNECTIONS(LINK)
- LF: +1, -1 Link through: +2, -2
- FITTINGS
- Two skids on base, with mating channels on top
- Four rear-mounted 100mm (4in) castors
- 24 x M10 mounting points
- 4 x bar handles, 2 on each side
- 4 x fittings for optional transit cover
- DIMENSIONS(INCLSKIDS)
- (W) 1085mm x (H) 537mm x (D) 792mm
(920mm including castors) - (W) 42.7in x (H) 21.1in x (D) 31.2in
(36.2in including castors) - WEIGHT
- 102kg (225lbs)
