Spec

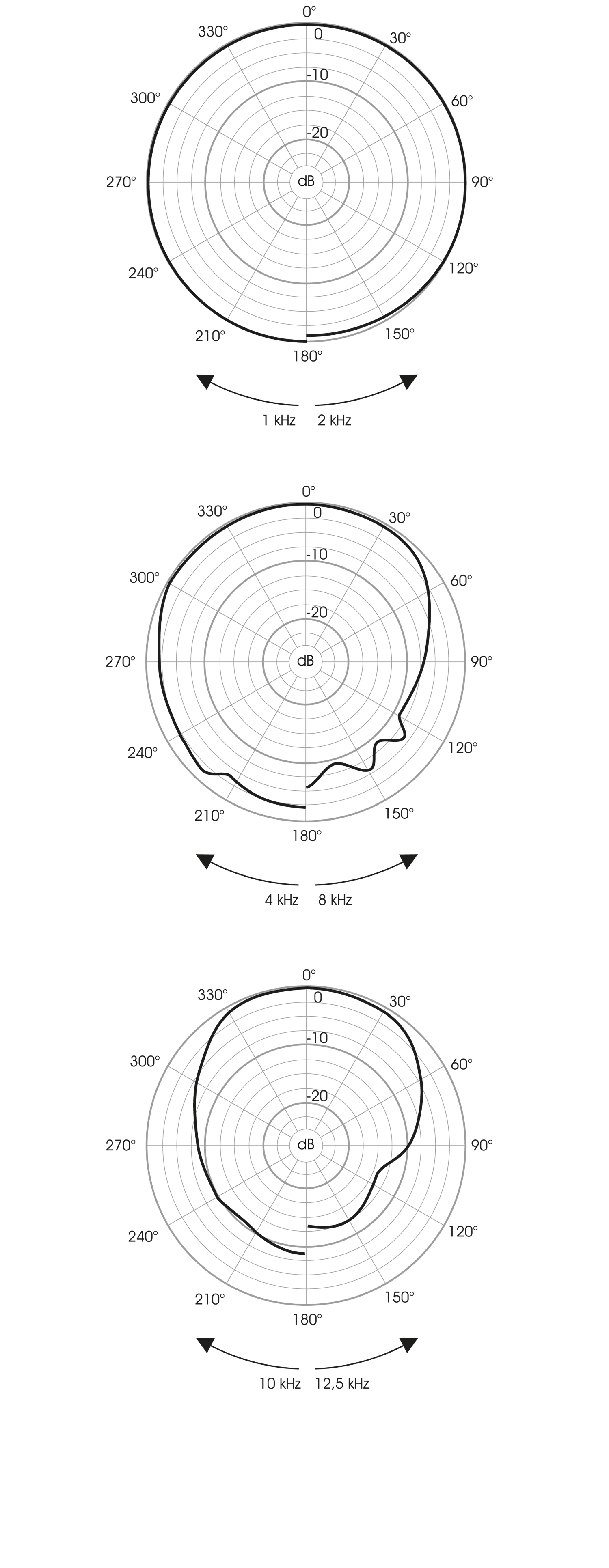

Polar pattern | omni | |
Acoustic operating principle | pressure transducer | |

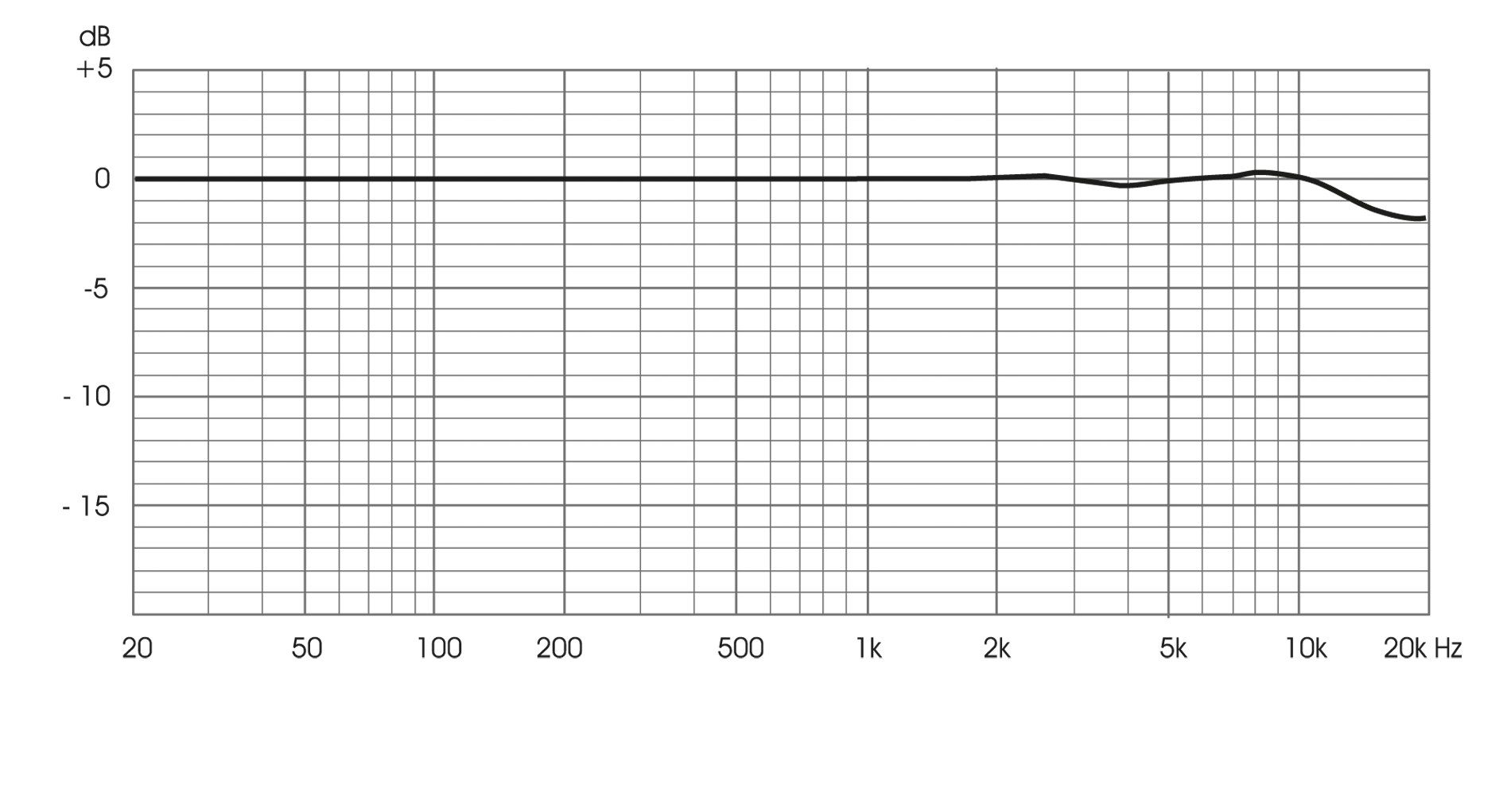

Frequency range | 20 Hz to 20,000 Hz | |
Sensitivity at 1 kHz | 50 mV/Pa | |
Output impedance | 100 Ohm | |
Noise level | CCIR 468-4 | 23 dB |
DIN EN 60268-4 | 11 dB-A | |
Signal-to-noise ratio | A-weighted | 83 dB |
SPL for THD 0,5 % | 136 dB | |
Max. output level | R = 1 kOhm | 18 dBu |
R = 10 kOhm | 19 dBu | |
Dynamic range | 125 dB | |
Current consumption | 5.5 mA | |
Output connector | XLR3M | |
Weight | 210 g | |
Length | 180 mm | |
Surface | dark bronze |
