Spec
■ 16 note polyphony (dependent on voices used per note)
■ 2-part-timbral
■ Layered, Split, Dual Bi-Timbral Modes
■ 5Voice Modes - Mono, MonoLG, Mono2, Poly, Poly2
■ 50 control knobs
■ 845mm sliders
■ 1 volume knob
■ 1 data encoder knob
■ Rubberised knob caps with spun metal discs
■ 55 function buttons
■ 2 Animate buttons plus hold button

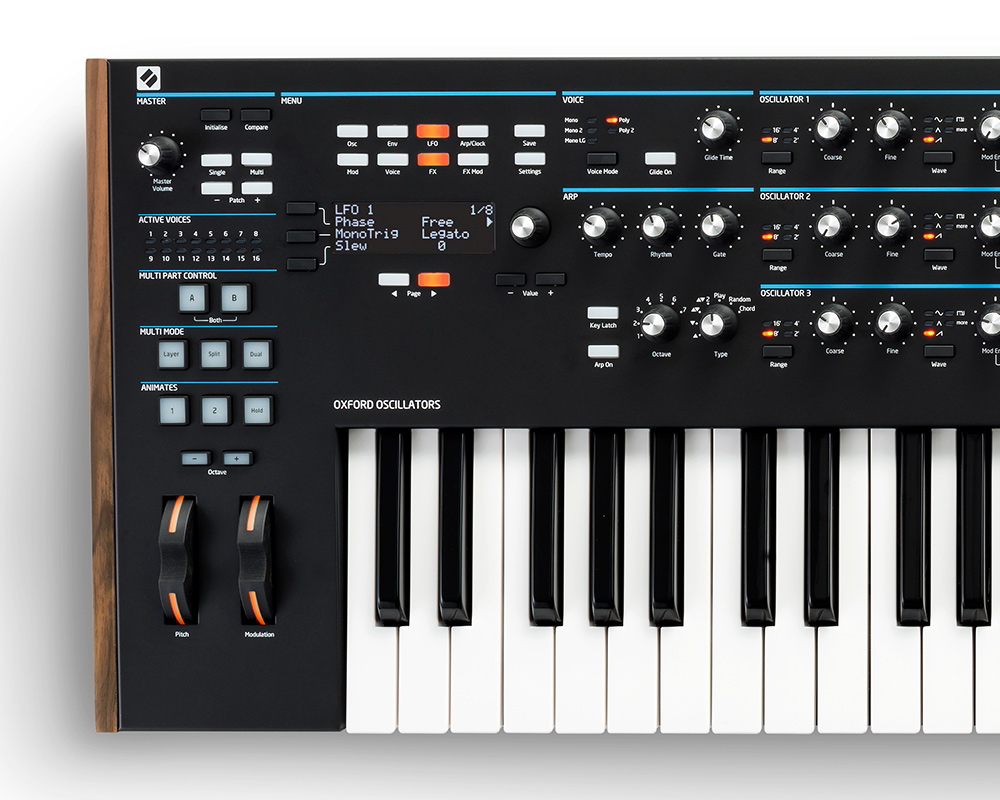

■ OLED display
■ Kensington Lock
■ Power switch
■ IEC power supply connector
■ USB socket for system (MIDI comms only, no bus power)

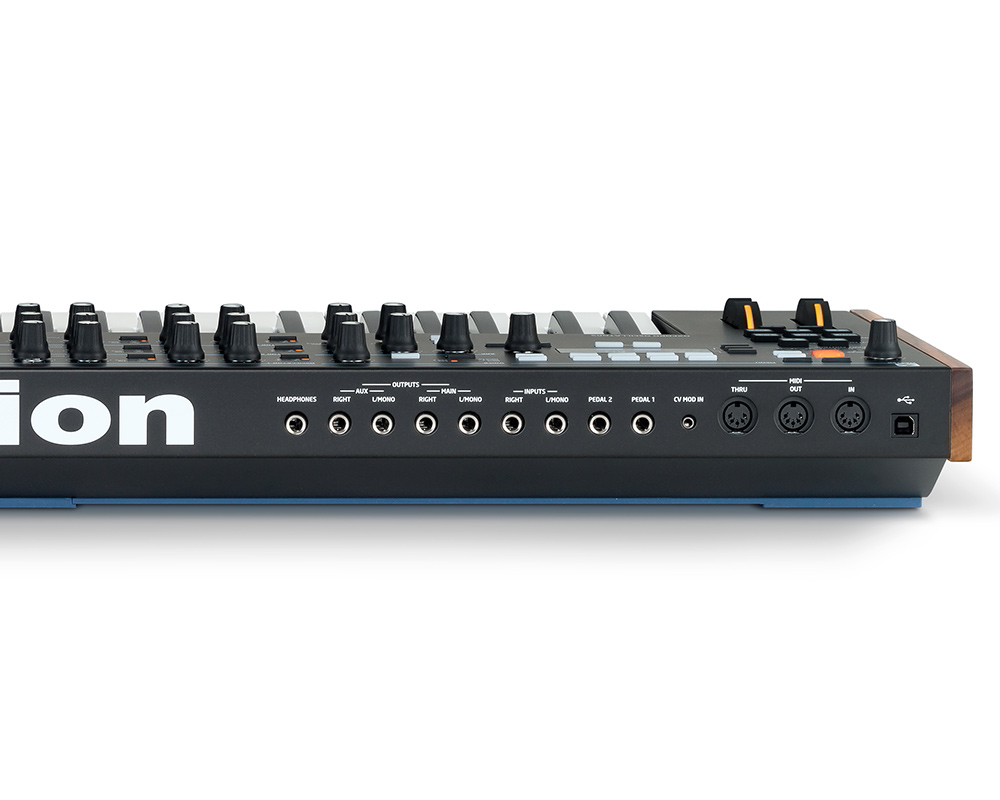

■ MIDI In / Out / Thru
■ 2 1/4" jack sockets for continuous or switched pedals
■ 1 3.5mm jack socket for CV in
■ 2 1/4" jack sockets for left and right outputs
■ 2 1/4" jack sockets for left and right auxiliary outputs
■ 2 1/4" jack sockets for left and right inputs
■ 1/4" jack socket for headphone output
■ Metal chassis with American walnut wooden end cheeks
■ Metal magnetic inset end pieces
■ Maximum power consumption 1A
■ Dimensions (W x D x H) : 998.4 x 302.4 x 71 mm
■ Weight : 11 kg
■ 2-part-timbral
■ Layered, Split, Dual Bi-Timbral Modes
■ 5Voice Modes - Mono, MonoLG, Mono2, Poly, Poly2
■ 50 control knobs
■ 845mm sliders
■ 1 volume knob
■ 1 data encoder knob
■ Rubberised knob caps with spun metal discs
■ 55 function buttons
■ 2 Animate buttons plus hold button
■ OLED display
■ Kensington Lock
■ Power switch
■ IEC power supply connector
■ USB socket for system (MIDI comms only, no bus power)
■ MIDI In / Out / Thru
■ 2 1/4" jack sockets for continuous or switched pedals
■ 1 3.5mm jack socket for CV in
■ 2 1/4" jack sockets for left and right outputs
■ 2 1/4" jack sockets for left and right auxiliary outputs
■ 2 1/4" jack sockets for left and right inputs
■ 1/4" jack socket for headphone output
■ Metal chassis with American walnut wooden end cheeks
■ Metal magnetic inset end pieces
■ Maximum power consumption 1A
■ Dimensions (W x D x H) : 998.4 x 302.4 x 71 mm
■ Weight : 11 kg
