Spec

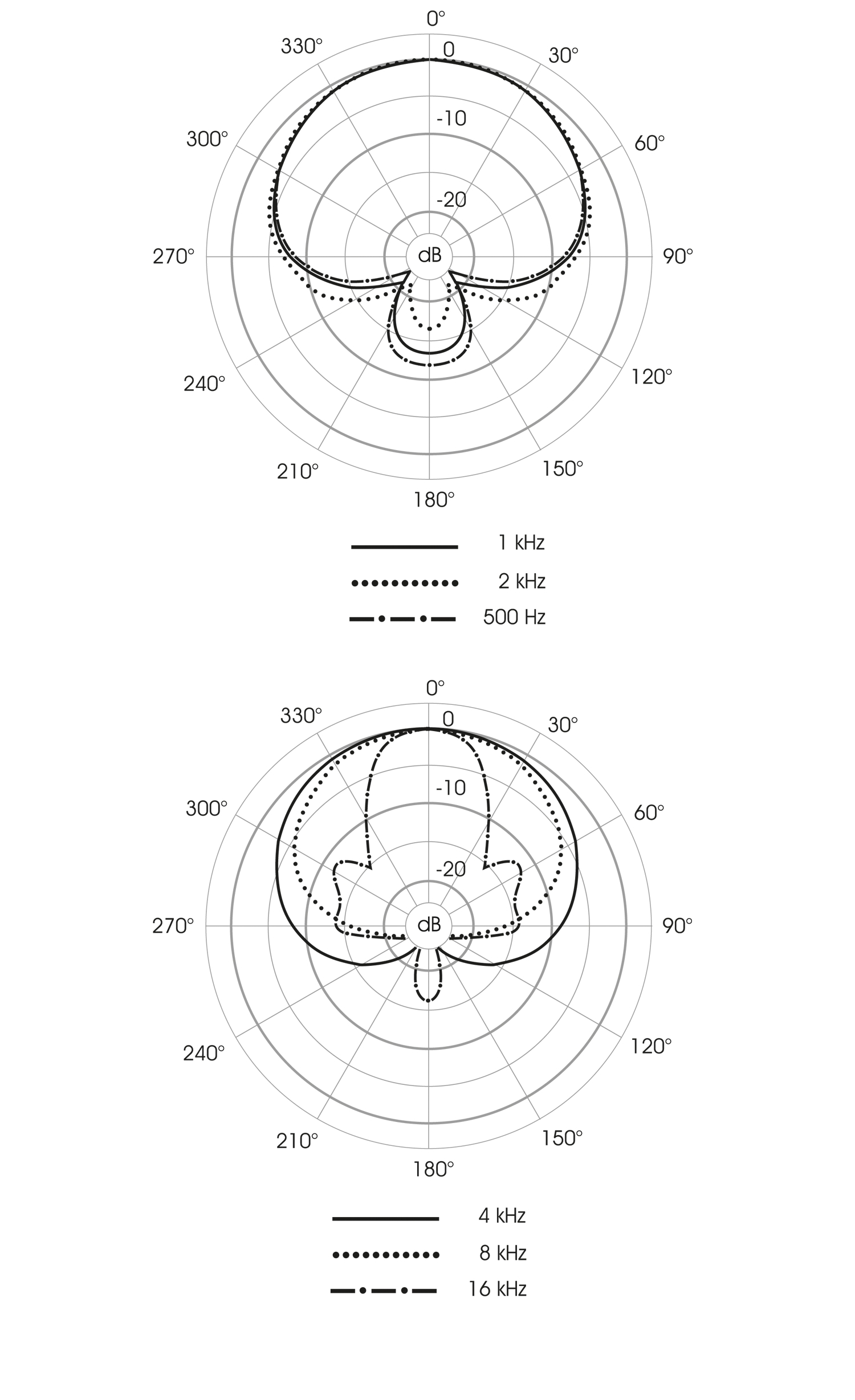

- Polar pattern
- Supercardioid
- Beaming
- >2,2 at 1 kHz
- Acoustic operating principle
- Pressure gradient transducer
- Electric operating principle
- Moving-coil principle

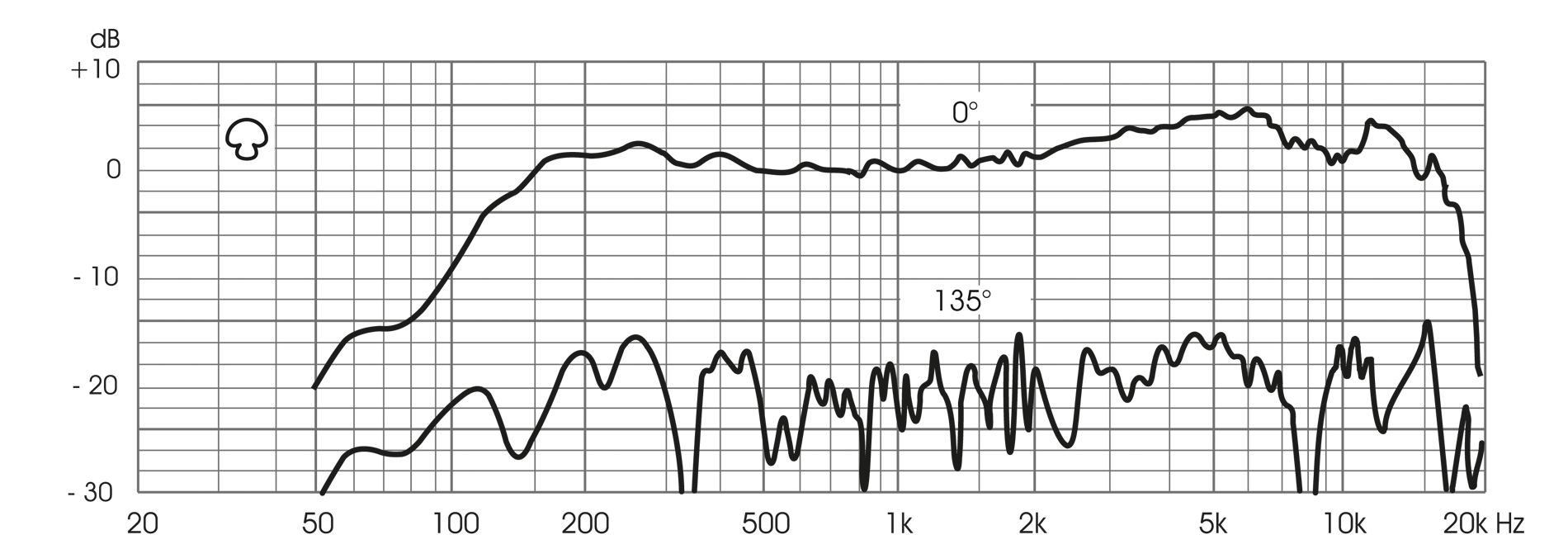

- Frequency range
- 50 Hz to 16,000 Hz
- Sensitivity at 1 kHz
- 1.5 mV/A
- Output impedance
- 220 Ohm
- Load impedance
- ≥ 1 kOhm
- Magnet field disturbing factor at 50 Hz
- ≤ 1 V/T
- Operating temperature range
- -10 °C to +45 °C
- Output connector
- XLR3M
- Connector assignment
- Pin 2 (+) and 3, pin 1 and housing
- Weight
- 375 g
- Length
- 198 mm
- Diameter
- 53 mm
- Surface
- Black matt
