特徴
・ バスパワー駆動
・ マクロ MMC クロッキング
・ ニチコン、ビシェイ、ウィマのコンデンサを使用したアナログ回路設計
・ PG-i パワーフィルタリングテクノロジー
・ USB クラス準拠
・ レボリューション ソフトウェア スイート
バンドルソフトウェア
・ Studio One Artist
・ Izotope Elements Suite including Nectar, Neutron, Ozone and RX
・ BrainWorx BX Digital
・ Lindell 6X500
Spec
Mic Input
Input Impedance = 3.5k ΩMaximum input level @ gain min = +8.615 dBuMaximum input level @ gain max = -47.182 dBuFrequency Response:frequency response 20 hz to 20 kHz @gain min (input level -1 dBFS) =+/-0.035 dBFrequency Response:frequency response 20 hz to 20 kHz @gain max (input level -1 dBFS) =+/-0.803 dBTHD + N @ 1 kHz @gain min (bandwidth 20 hz-20 kHz, un-weighted,(input level -1 dBFS) = 0.00098%SNR @ 1 kHz @gain min (bandwidth 20 hz-20 kHz, A-weighted, (input level 0 dBFS ) = 108.838 dB
Dynamic Range@gain min(bandwidth 20 hz-20 kHz, A-weighted -level 0 dBFS) = 116dB (pre convertor)Dynamic Range@gain min(bandwidth 20 hz-20 kHz, A-weighted -level 0 dBFS) = 109.197dBCrosstalk = -92.157 dB
Line Input
Input Impedance = 10k ΩMaximum Input (maximum input level @ gain min) = +19.82 7BuMaximum input level @ gain max = -35.91 BuGain Range = 55.7Frequency Response =+/-0.036 dBTHD + N = 0.00094%
Dynamic Range = 126 dB (pre convertor)Dynamic Range = 109.204 dBCrosstalk = -92.229 dB
Line Outputs
Output Impedance = 47 ΩMax Output Level = +12.224 dBuFrequency Response =+/-0.089 dBuTHD+N = 0.00165%
Dynamic Range = 106 dB (pre mixer and output control)Dynamic Range = 101.457 dB
Instrument InputInput Impedance = 1 MΩGain Range = 55.7Frequency Response =+/-0.024 dBTHD + N = 0.00481%
Dynamic Range = 103 dB (pre converter)Dynamic Range = 102.338 dBCrosstalk = -94.338 dB
Headphone OutputsOutput Impedance = 10 ΩMaximum Signal Output = 2.252 VrmsFrequency Response =+/-0.114 dB

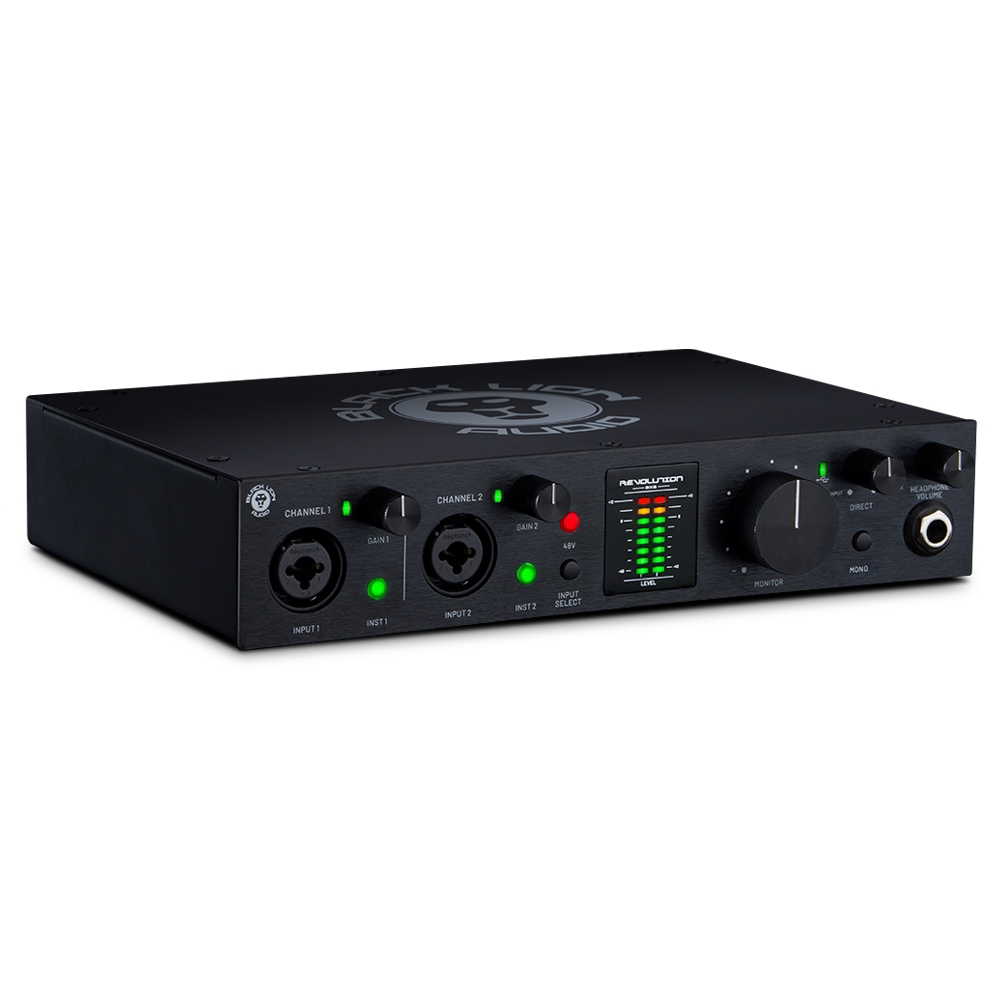

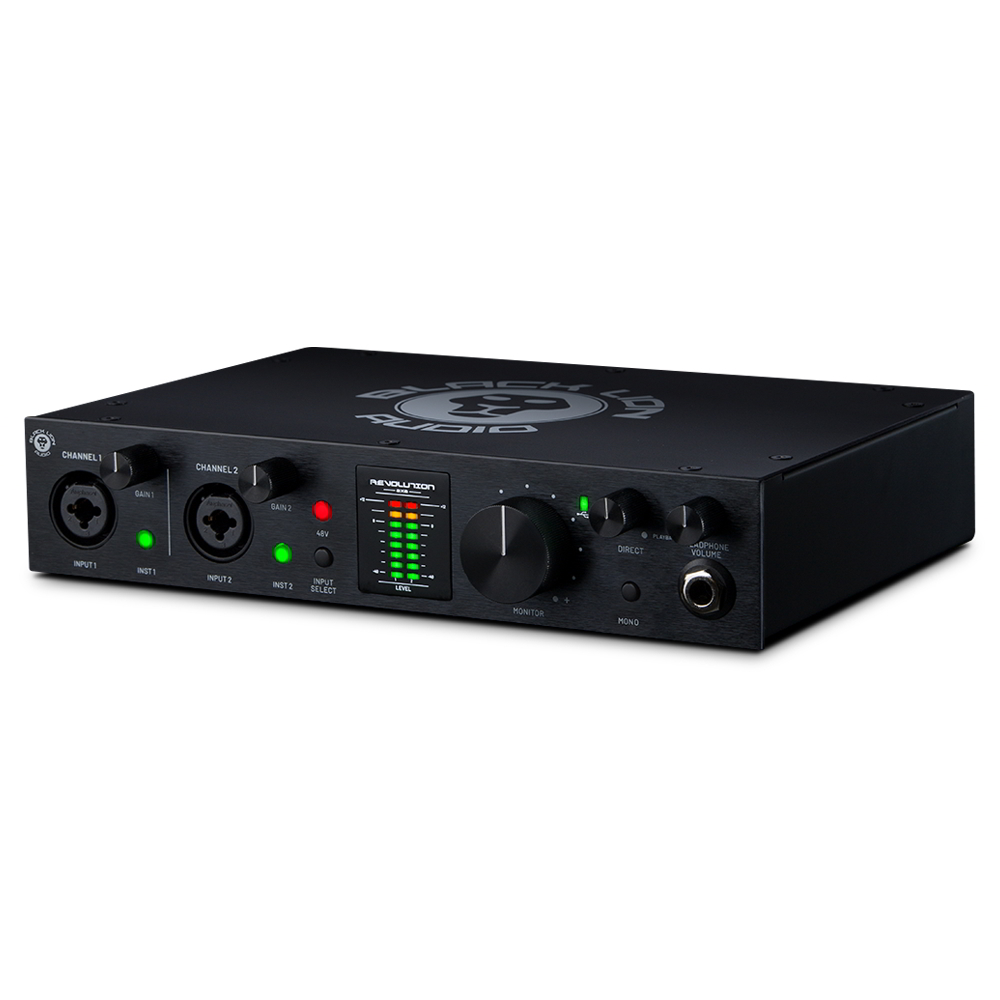

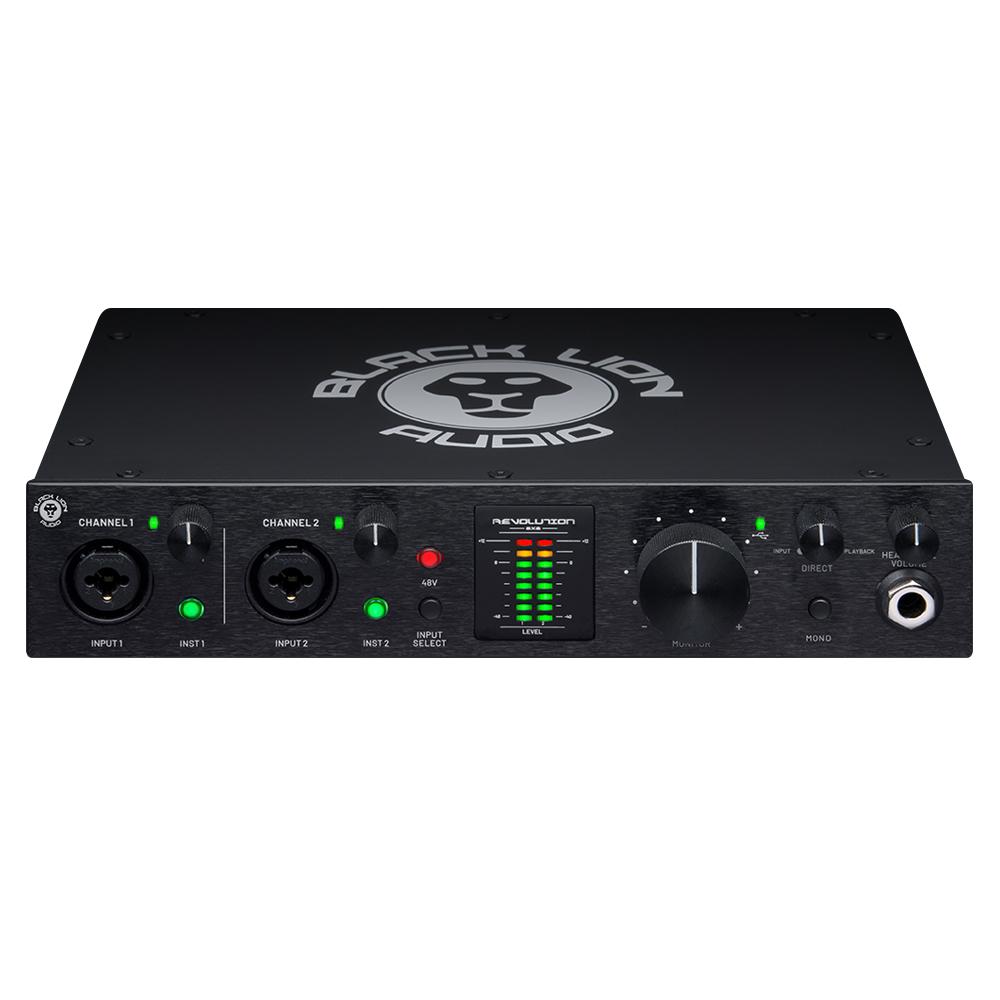

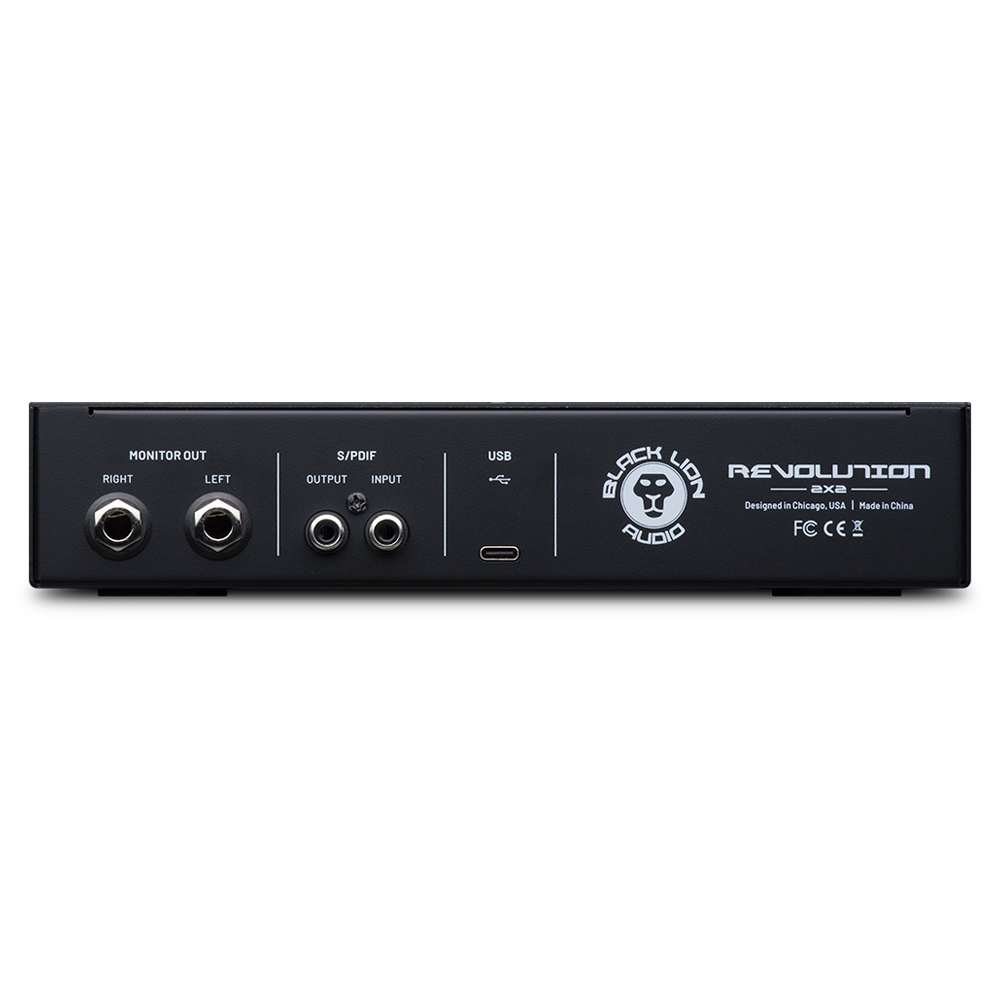

追加画像
クリックで別ウインドウで拡大します。
