Load List
AG IR
1. G HBird EG Mag(Gibson Hummingbird for Electric Guitar Magnetic PU)
2. G J15 EG Mag(Gibson J15 for Electric Guitar Magnetic PU)
3. M D45 EG Mag(Martin D45 for Electric Guitar Magnetic PU)
4. G HBird Pie(Gibson Hummingbird for Acoustic Guitar Piezo under saddle PU)
5. G J15 Pie(Gibson J15 for Acoustic Guitar Piezo under saddle PU)
6. M D45 Pie(Martin D45 for Acoustic Guitar Piezo under saddle PU)
7. M HD28 Pie(Martin HD28 for Acoustic Guitar Piezo under saddle PU)
8. T 814 Pie(Taylor 814 for Acoustic Guitar Piezo under saddle PU)
EG CAB
1. JZ120(Roland Jazz 120)
2. DR112(Fender Deluxe Reverb)
3. BS410(Fender Bassman 410)
4. A212(VOX AC30 212)
5. TR212(Fender Twin Reverb 212)
6. 1960(Marshall 1960A 412)
7. GB412(Celestion Greenback 412)
8. V412(Celestion Vintage30 412)
BS CAB
1. AGL DB810(Aguilar DB 810)
2. AMP SV810(Ampeg SV810)
3. MKB 410(Mark Bass 410)
4. TRC 410(Trace Elliot 410)
5. AMP SV410(Ampeg SV410 + Tweeter)
6. Bassguy 410(Fender Bassman 410)
7. Eden 410(EDEN 410)
8. AMP SV212(Ampeg SV212)
1. G HBird EG Mag(Gibson Hummingbird for Electric Guitar Magnetic PU)
2. G J15 EG Mag(Gibson J15 for Electric Guitar Magnetic PU)
3. M D45 EG Mag(Martin D45 for Electric Guitar Magnetic PU)
4. G HBird Pie(Gibson Hummingbird for Acoustic Guitar Piezo under saddle PU)
5. G J15 Pie(Gibson J15 for Acoustic Guitar Piezo under saddle PU)
6. M D45 Pie(Martin D45 for Acoustic Guitar Piezo under saddle PU)
7. M HD28 Pie(Martin HD28 for Acoustic Guitar Piezo under saddle PU)
8. T 814 Pie(Taylor 814 for Acoustic Guitar Piezo under saddle PU)
EG CAB
1. JZ120(Roland Jazz 120)
2. DR112(Fender Deluxe Reverb)
3. BS410(Fender Bassman 410)
4. A212(VOX AC30 212)
5. TR212(Fender Twin Reverb 212)
6. 1960(Marshall 1960A 412)
7. GB412(Celestion Greenback 412)
8. V412(Celestion Vintage30 412)
BS CAB
1. AGL DB810(Aguilar DB 810)
2. AMP SV810(Ampeg SV810)
3. MKB 410(Mark Bass 410)
4. TRC 410(Trace Elliot 410)
5. AMP SV410(Ampeg SV410 + Tweeter)
6. Bassguy 410(Fender Bassman 410)
7. Eden 410(EDEN 410)
8. AMP SV212(Ampeg SV212)
Spec
Input Impedance: 1MΩ
Output Impedance: 10kΩ
Dynamic Range: 103 dB
DSP Processing: 48KHz / 32-bit
A/D D/A Sampling Rate: 48KHz / 24-bit
Power: 9V DC, Negative tip
Current Draw: less than 100mA
Dimensions: 94(L)X51(W)X53(H) mm
Weight: 175 g
Output Impedance: 10kΩ
Dynamic Range: 103 dB
DSP Processing: 48KHz / 32-bit
A/D D/A Sampling Rate: 48KHz / 24-bit
Power: 9V DC, Negative tip
Current Draw: less than 100mA
Dimensions: 94(L)X51(W)X53(H) mm
Weight: 175 g
追加画像
クリックで別ウインドウで拡大します。

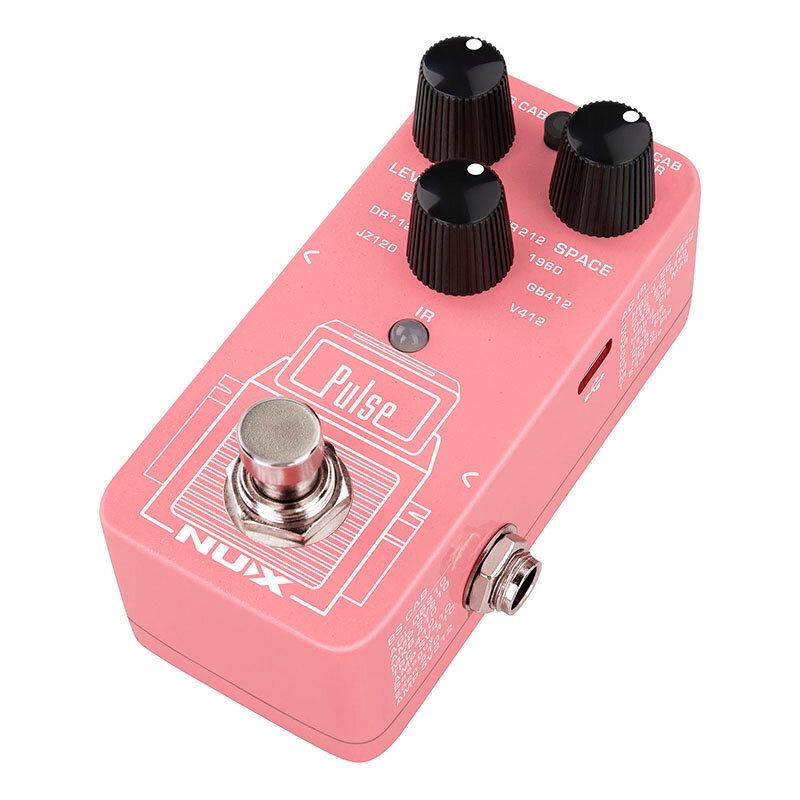

![NSS-4 Pulse mini IR loader追加画像 NSS-4 Pulse mini IR loader追加画像](/webshop/upload/save_image/107555B.jpg)

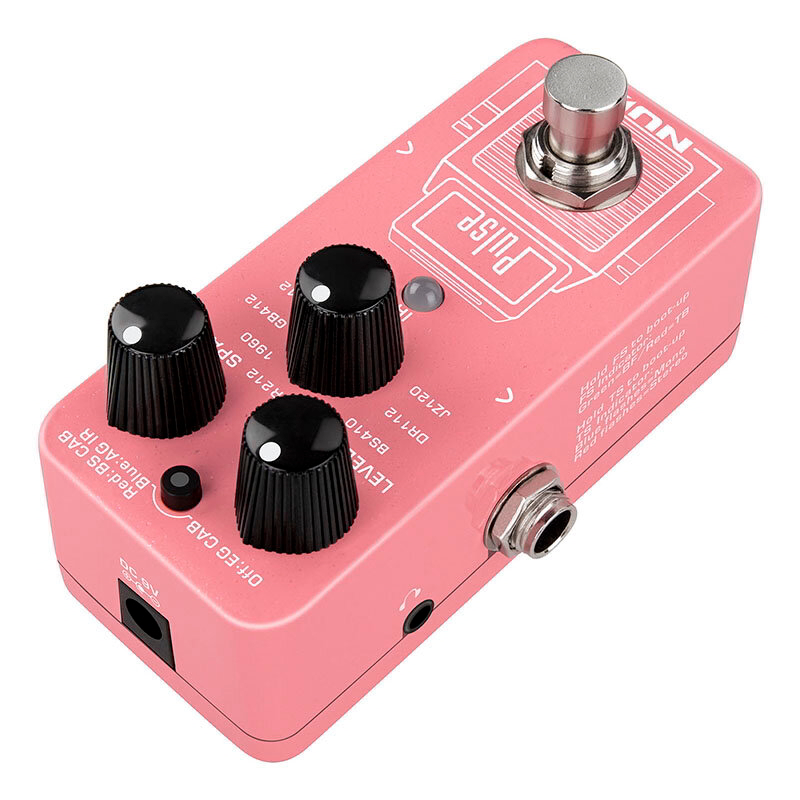

![NSS-4 Pulse mini IR loader背面画像 NSS-4 Pulse mini IR loader背面画像](/webshop/upload/save_image/107555R.jpg)
