Spec
- Free field frequency response ±6 dB
- 36 Hz ... 21 kHz
- Free field frequency response ±3 dB
- 39 Hz ... 20.4 kHz
- Pass band free field frequency response
- 42 Hz … 20 kHz, ±1.25 dB
- Free field frequency linearity deviation between 100 Hz and 10 kHz
- ±0.8 dB
- Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu)
- <20 dB(A) SPL
- Sine wave output with a THD < 0.5 % at 1 m in half space
- 95 dB SPL (>75 Hz)
- Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz)
- 118.7 dB SPL
- Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz)
- 112.7 dB SPL
- Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz)
- 107.5 dB SPL
- Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions
- 108 dB(C) SPL
- Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range)
- 100 dB(C) SPL
- Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer)
- 106 dB(C) SPL
- Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range)
- 88 / 94 dB(C) SPL
- Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer)
- 88 / 94 dB(C) SPL
- Dolby D.A.R.D.T. Max SPL fullrange
- 114 dB
- Dolby D.A.R.D.T. Max SPL bass managed
- 120 dB
- Recommended Listening Distance
- 1.0 … 2.5 m; (3'… 8')
- Feasible Listening Distance
- 0.75 … 6.0 m; (2'6"… 18')
- Acoustic principle
- Bassreflex, Ports at the front
- Analog input(s)
- XLR: analog electronically balanced
- Analog input impedance
- 24 kOhms
- Max. input level
- +24 dBu for 94 dB SPL setting; +14 dBu for 100 dB SPL setting; +9 dBu for 108 dB SPL setting; -1 dBu for 114 dB SPL setting
- Common mode rejection ratio (CMRR)
- >56 dB @ 15kHz
- Volume control
- via MA 1 software
- Volume control range; resolution
- 0 … -∞ dB; 0.1 dB
- Analog dynamic range; THD+N
- 118 dB, A-weighted, 90 dB
- Signal routing modes
- analog, S/PDIF L, S/PDIF R, S/PDIF mono
- Digital input(s)
- RCA (75 Ω): S/PDIF
- Digital output(s)
- RCA (75 Ω): S/PDIF
- Max. Input Level; pk-pk, unbalanced / balanced
- 1.2 V
- Digital converter: resolution; design
- 24 Bit
- Digital converter: sampling rate
- 32 kHz..200 kHz
- Digital internal sampling rate
- 48 kHz
- Output sample rate
- identical to input sample rate
- Latency ADA / DA
- Analog Input: 2.6 ms; SPDIF Input: 2.1 ms
- Delay: User adjustable delay range
- 0 … 120 ms
- Delay: Resolution: time; distance
- 20.8 µs
- Delay: Max. frames Audio-video synchronisation (lip sync)
- 0 … 120 ms for TOF=0ms, depends on APP implementation
- Delay: Time-of-flight maximum distance
- 0 … 120 ms for lipsync=0ms, depends on APP implementation
- Output level control (output level in 1 m based on 0 dBu input level)
- 94; 100; 108; 114 dB SPL
- Input gain control (sensitivity)
- 0 dB ... -15 dB
- Transport/storage conditions
- -25° C to +60° C (-13° F to 140° F); <90% RH; non-condensing

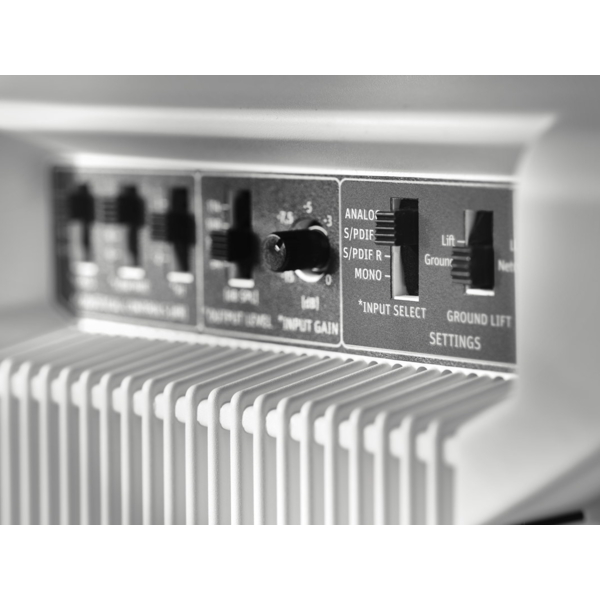

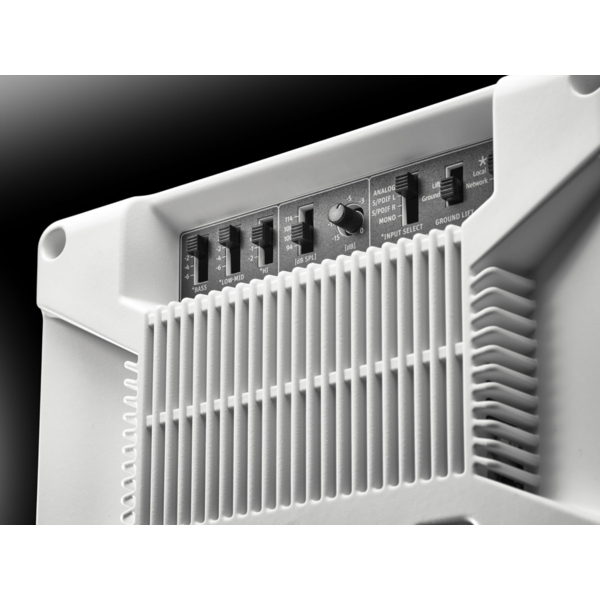

- Equalization: Treble
- +1; 0; -1; -2 dB
- Equalization: Low-Mid
- 0; -2; -4; -6 dB
- Equalization: Bass
- 0; -2; -4; -6 dB
- Input selector
- Analog; S/PDIF L; S/PDIF R; Mono
- Ground Lift
- Yes
- Control
- Local; Network
- Mains Switch
- Yes
- Mains Voltage Select
- Universal Power Supply 100 V～ … 240 V～
- Controller design
- Digital; active
- Crossover frequency
- 1700 Hz
- Crossover slope
- 24 dB / octave
- Equalization: via Neumann.Control software
- No
- FIR phase correction
- Linear phase (105 Hz ... 16 kHz; +/- 45°)
- Protection circuitry
- Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers
- Infrasonic filter: frequency; slope
- 38 Hz; 12 dB / octave
- Remote control
- MA 1 software via an RJ45 connector carrying standard IP data
- Display: On; Normal Operation
- Neumann logo “White”
- Display: Identification
- Neumann logo “Rosé”
- Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute
- Neumann logo “Red”
- Logo Brightness
- via MA 1 software
- Output power woofer amplifier(THD+N with limiter deactivated: 10%)
- 145 W
- Output power tweeter amplifier(THD+N with limiter deactivated: 10%)
- 100 W
- Output power woofer amplifier(THD+N with limiter deactivated: 0.1%)
- 120 W
- Output power tweeter amplifier(THD+N with limiter deactivated: 0.1%)
- 80 W
- Mains Power Supply: input voltage; frequency
- 100-240 V; 50/60 Hz
- Power consumption (230 V / 100 V): Standby
- 0.3 W
- Power consumption (230 V / 100 V): Idle
- 15 W
- Power consumption (230 V / 100 V): Full output
- 320 W
- In-rush current (Peak)
- 33 A
- Standby
- automatic, 90 mins (default); user defined in software
- Cabinet material
- Composite polycarbonate front and rear, wooden sleeve
- Cabinet surface finish; color (front / back)
- Painted; metallic anthracite (RAL 7021) / Black (RAL 9005)
- Operating conditions
- +10° C to +40° C (+50° F to +104° F); <75% RH, non-condensing

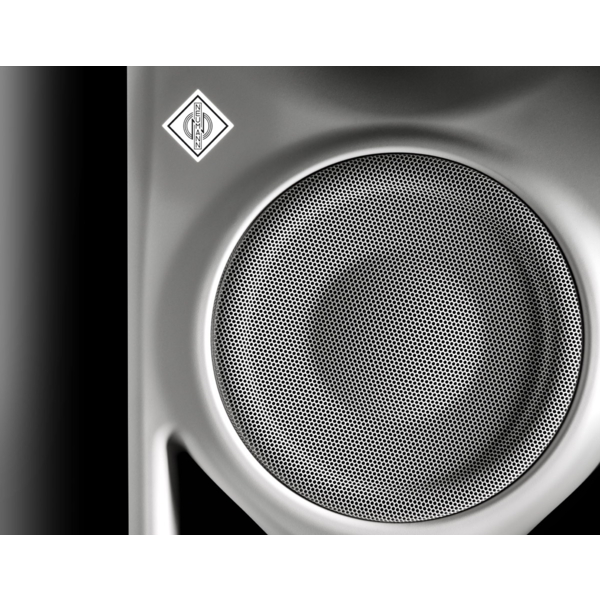

- Woofer
- 165 mm; (6.5") with protecting black metal grille
- Tweeter
- 25 mm; (1") with protecting black metal grille
- Mounting points
- 2 x M6 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm; (5/8”)
- Product dimensions (height x width x depth)
- 345 x 225 x 273 mm; (13.58" x 8.86" x 10.75")
- Internal net volume
- 12.6 l
- External net volume
- 20.4 l
- Packed dimensions (height x width x depth), mm (inches)
- 480 x 303 x 403 mm; (18.9" x 11.9" x 15.9")
- Product weight
- 8.0 kg; (17 lbs 10 oz)
- Packed weight
- 9.4 kg; (20 lbs 12 oz)
- Packaging weight inc. Cables and manuals
- 1.41 kg; (3 lbs)
- Packed cube
- 0.059 m³; (2.08 ft³)
