Spec
Free field frequency response ±3 dB | 44 Hz ... 21 kHz |
---|---|
Self-generated noise at 10 cm(with input gain set to 100 dB SPL for 0 dBu) | <20 dB(A) SPL |
Max. SPL calc. in half space at 3% THD at 1 m(averaged between 100 Hz and 6 kHz) | 116.8 dB SPL |
Acoustical Principle | Bassreflex, Ports at the front |
Analog input(s) | XLR: analog electronically balanced |
Analog input impedance | 24k Ohms |
Digital input(s) | KH 120 II / KH 120 II W:RCA (75 Ω): S/PDIFKH 120 II AES67 / KH 120 II W AES67:RCA (75 Ω): S/PDIF, Ethernet |

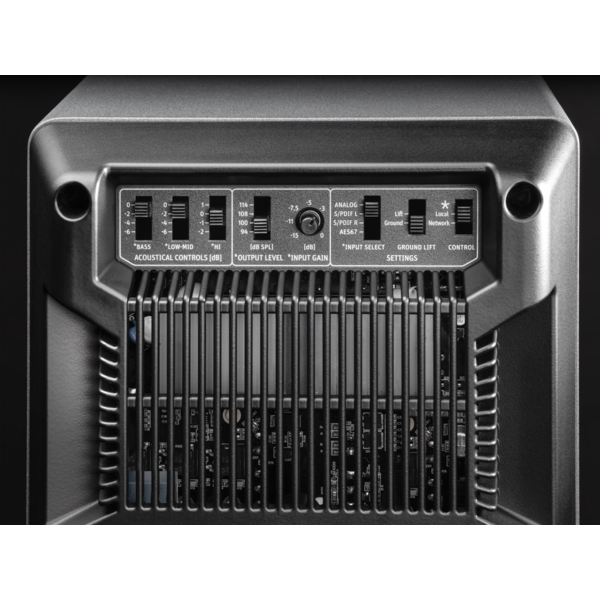

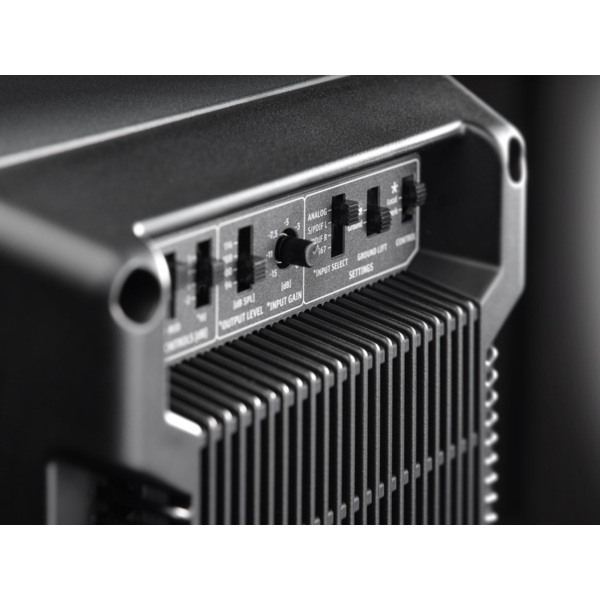

Input gain control (sensitivity) | 0 dB ... -15 dB |
Output level control (output level in 1 m based on 0 dBu input level) | 94; 100; 108; 114 dB SPL |
Equalization: Bass | 0; -2; -4; -6 dB |
Equalization: Low-Mid | 0; -2; -4; -6 dB |
Equalization: Treble | +1; 0; -1; -2 dB |
Control | Local; Network |
Crossover frequency | 1.7 kHz |
FIR phase correction | Linear phase (120 Hz ... 16 kHz; +/- 45°) |
Protection circuitry | Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers |
AES67 Audio-over-IP Interface | KH 120 II AES67 / KH 120 II W AES67: Fully redundant AES67 ST2110 compliant audio network interface; 2 Fast Ethernet 100Base-TX (IEEE 802.3) RJ-45 connectors; Physical redundant network (ST 2022-7) |
AES67 Audio-over-IP input word length | KH 120 II AES67 / KH 120 II W AES67: 24 bits |
AES67 Audio-over-IP input sampling rate | KH 120 II AES67 / KH 120 II W AES67: 44.1 / 48 / 88.2 / 96 kHz |
AES67 Audio-over-IP input connection management | KH 120 II AES67 / KH 120 II W AES67: RAVENNA, NMOS IS-04 (Discovery & Registration) and NMOS IS-05 (Connection Management) |
Output power woofer amplifier(THD+N with limiter deactivated: 10%) | 145 W |
Output power tweeter amplifier(THD+N with limiter deactivated: 10%) | 100 W |
Woofer | KH 120 II / KH 120 II AES67: 130 mm (5.25") with protecting metal grille, blackKH 120 II W; KH 120 II W AES67: 130 mm (5.25") with protecting metal grille, white |
Tweeter | KH 120 II / KH 120 II AES67: 25 mm (1") with protecting metal grille, blackKH 120 II W; KH 120 II W AES67: 25 mm (1") with protecting metal grille, white |
Product dimensions (height x width x depth) | 287 x 182 x 227 mm (11.3 " x 7.16 " x 8.94") |
Product weight | 5.4 kg (11 lbs 14 oz) |
