Spec

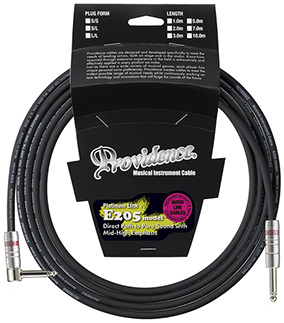

Providence with NVW1 OFC
Conductor Size : 0.18mm2
Construction(No./mm) : 16/0.12OFC
Diameter : 0.55mm
Insulation Thickness : 0.98mm(±0.05)
Diameter : 2.50mm
Inner Jacket Thickness : 0.25mm
Diameter : 3.00mm
Shield-Diameter : 3.50mm
Jacket Thickness : 1.45mm(±0.10)
Diameter : 6.40mm
Maximum conductor resistance(20°C) : 100≧(Ω/km)
Capacitance(1kHz) : Approx.140(pF/m)
Plug : NP-14およびNP-14L(L型プラグ)
Conductor Size : 0.18mm2
Construction(No./mm) : 16/0.12OFC
Diameter : 0.55mm
Insulation Thickness : 0.98mm(±0.05)
Diameter : 2.50mm
Inner Jacket Thickness : 0.25mm
Diameter : 3.00mm
Shield-Diameter : 3.50mm
Jacket Thickness : 1.45mm(±0.10)
Diameter : 6.40mm
Maximum conductor resistance(20°C) : 100≧(Ω/km)
Capacitance(1kHz) : Approx.140(pF/m)
Plug : NP-14およびNP-14L(L型プラグ)
