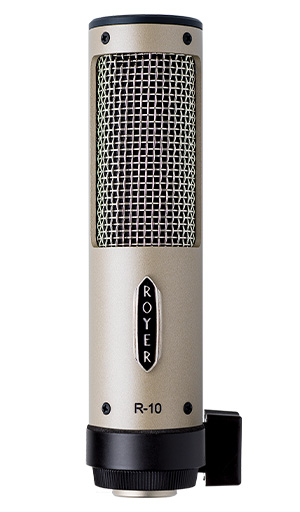

Spec of R-10 Hot Rod
- Acoustic Operating Principle: Electrodynamic pressure gradient
- Polar Pattern: Figure-8
- Generating Element: 2.5-micron aluminum ribbon
- Magnets: Rare Earth Neodymium (Grade 52)
- Frequency Response: 30Hz-15,000Hz +/- 3dB
- Sensitivity: -48dBv (re. 1v/pa)
- Output Impedance: 300 Ohms
- Maximum SPL: 135dB @ 50 Hz, 160dB @ 1kHz
- Recommended Load Impedance: 1500 Ohms (or greater)
- Output Connector: Male XLR 3-pin (Pin 2 Hot)
- Dimensions: Length including mounting base: 5 7/8 inches (149 mm) Width 1 3/8 inches (35 mm)
- Weight: 13 oz (368 grams)
- Shipping Weight: Single: 2.5 lbs, Matched Pair: 4 lbs
- Accessories: Microphone Holder, Mic Sock, Carrying Case
- Microphone: Adjustable Swivel Mount (Black)
- Microphone Warranty: Five Year, First Re-ribbon free in first year
